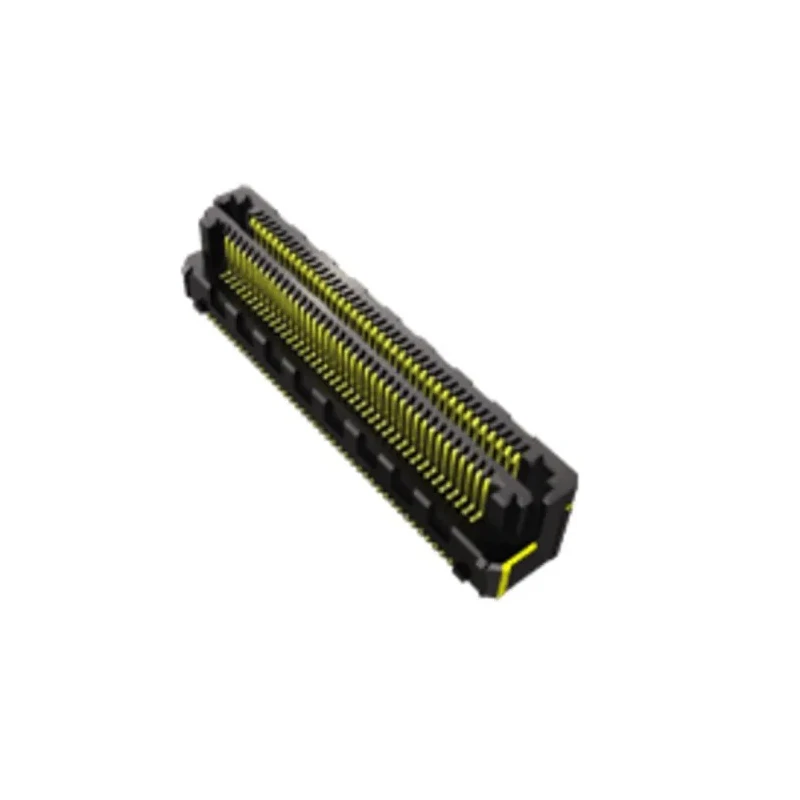

Samtec LSHM Series Straight Surface PCB Header, 100 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-150-02.5-L-DV-A-S-K-TR

Samtec LSHM-150-02.5-L-DV-A-S-K-TR is a high-performance PCB header designed for electronic applications requiring precise and reliable board-to-board connections. This PCB header features 100 contacts arranged in 2 rows with a fine 0.5 mm pitch and a straight shrouded form factor, making it ideal for compact and high-density electronics assembly.

The housing is made of Liquid Crystal Polymer, offering excellent mechanical strength and thermal resistance, suitable for operating temperatures ranging from -55°C to 125°C. Contacts are fabricated from phosphor bronze and plated with gold to ensure superior conductivity and corrosion resistance, supporting currents up to 2 amperes and voltages up to 160 volts.

This series employs the advanced 0.50 mm Razor Beam™ high-speed hermaphroditic terminal/socket strip technology, providing a secure audible click when mated and mating/unmating forces approximately 4-6 times greater than typical micro pitch connectors, enhancing the connection reliability in demanding conditions.

The product is surface mount type, terminated via soldering for effective PCB assembly processes, and features a self-mating system that reduces inventory and enhances system design flexibility. It is designed for parallel, perpendicular, and coplanar system configurations with an optional shield available for electromagnetic interference mitigation.

This PCB header is ideal for electronics manufacturing, industrial controls, telecommunications equipment, and various high-frequency applications in laboratory and commercial sectors.

Features a straight orientation with surface mount type for easy PCB integration. Constructed with Liquid Crystal Polymer housing for thermal and mechanical stability. Utilizes phosphor bronze contact material with gold plating ensuring reliable conductivity.

Supports current rating of 2A and voltage rating up to 160V for robust performance. Operates safely within temperature range from -55°C to 125°C. Incorporates 0.5 mm row pitch and termination via solder method. Includes an audible click on mating for secure and reliable connection.

Designed with self-mating system to reduce inventory costs and offers shield option availability. Suitable for high-speed applications with Razor Beam™ hermaphroditic terminal/socket strip technology. Explore the Samtec PCB Headers range and other electronics components at EnvMart to suit all industrial and commercial electronic assembly needs.
