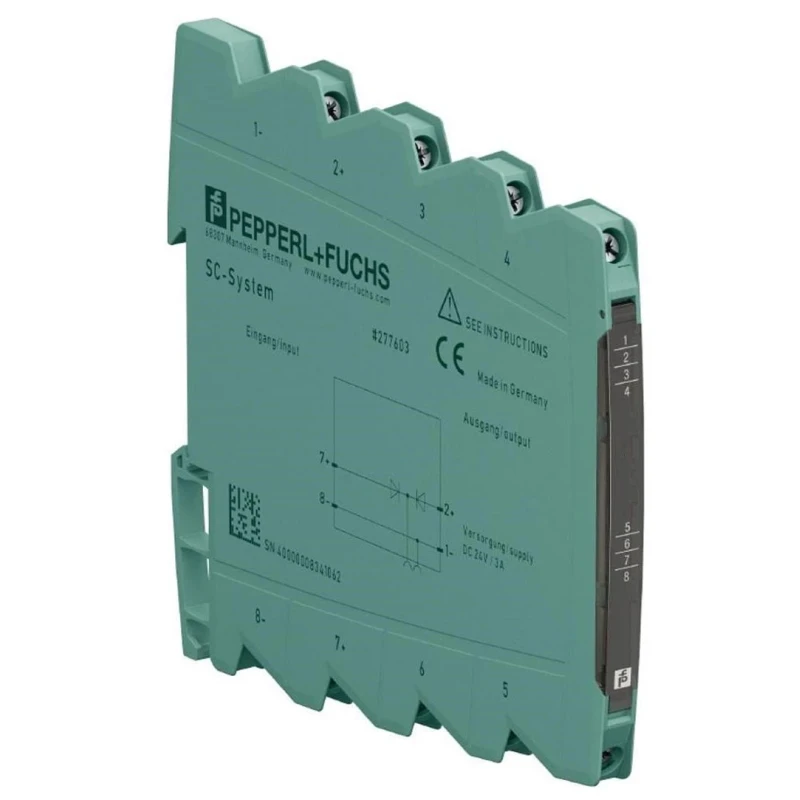

Pepperl + Fuchs S1SD Series 1-Channel Signal Conditioner Voltage Input Current/Voltage Output 16.8V/31.2V DC Supply S1SD
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | S1SD |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | S1SD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 0 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20 mA |
| Supply Voltage | 16.8, 31.2V dc |
| Hazardous Area Certification | IECEx/ATEX |
| Input Signal Type | Voltage |
| Output Signal Type | Current/Voltage |
| Signal Conditioner Type | 1-Channel Signal Conditioner |
Key Features
- Designed for reliable process communication in industrial automation.
- Compact housing measuring 6 mm width by 97 mm height for minimal space usage.
- DIN rail mounting enables quick and easy installation.
- Screw terminal type for secure electrical connections.
- Operational temperature range from -25°C to 70°C for extended environmental tolerance.
- High-quality galvanic isolation with 300 V operating voltage and 3 kV test voltage.
- Compliance with IECEx and ATEX hazardous area certifications.
- Meets international standards including ISA-S71.04-1985, EN 60079 series, EN 61010-1, and EN 61326-1.
Product Description
Pepperl + Fuchs S1SD Series 1-Channel Signal Conditioner (Model: S1SD) provides high-quality voltage input signal conditioning with options for current or voltage output. It operates on a dual DC supply voltage of 16.8V and 31.2V, designed specifically for industrial process communication applications.
The compact and space-saving 6 mm wide and 97 mm high housing facilitates installation in confined control cabinets, using convenient DIN rail mounting and screw terminal connections. Its extended operating temperature range from -25°C up to 70°C ensures robust performance in varying industrial environments.
Equipped with galvanic isolation rated for 300 V operating voltage and tested to 3 kV, the S1SD signal conditioner is suitable for hazardous areas certified under IECEx and ATEX. The device meets several international standards including ISA-S71.04-1985 for environmental testing, EN 60079 series for explosive atmospheres, EN 61010-1 for safety, and EN 61326-1 for electromagnetic compatibility.
This model supports multiple input signal ranges from ±60 mV to ±500 mV and output ranges covering 0 mA, ±10 V, ±20 mA, ±5 V, and several standardized voltage/current outputs, allowing flexible integration with process control systems. The unit has an IP20 rating for protection against solid foreign objects in typical indoor industrial settings.
Reliable voltage input with current/voltage output signal conditioning suitable for automation and control systems. Easy and fast DIN rail mounting with compact 6 mm module width. High galvanic isolation for safety in hazardous operating environments.
Operating temperature range supports deployment in harsh industrial conditions. Certified to IECEx and ATEX standards ensuring suitability for explosive atmospheres. Flexible input/output ranges compatible with a wide variety of measurement instruments.
Minimal wiring and compact design reduce installation effort and space requirements.
This Signal Conditioner is ideal for industrial automation, process control, electrical panels, and hazardous area installations, providing accurate and isolated signal conversion important for protecting downstream control equipment. Pepperl + Fuchs exemplifies quality and reliability in signal conditioning products.
Explore more signal conditioning and automation solutions in the Electronics & Electricals category at EnvMart.
