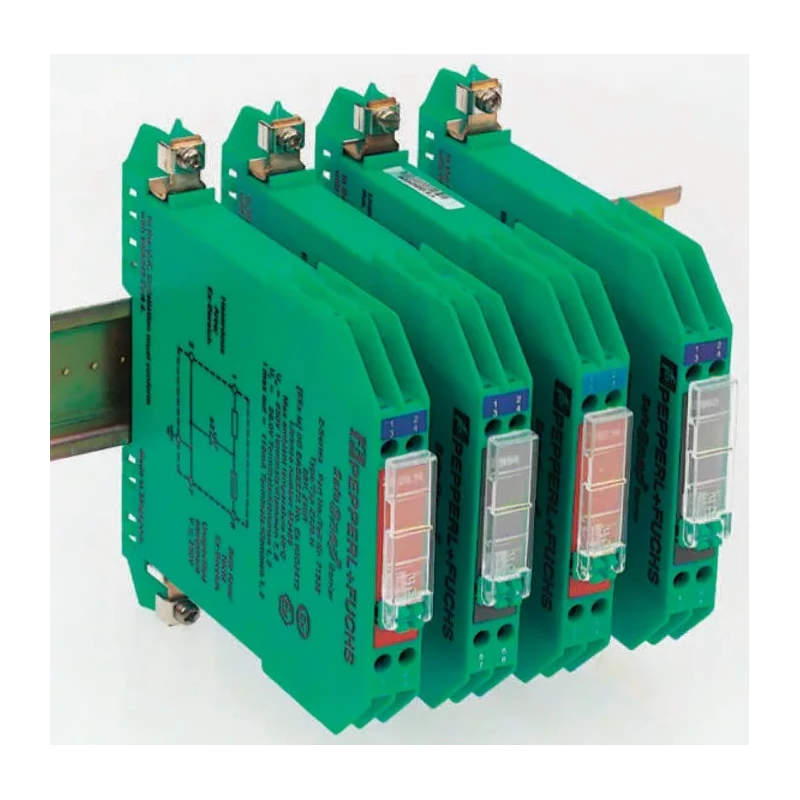

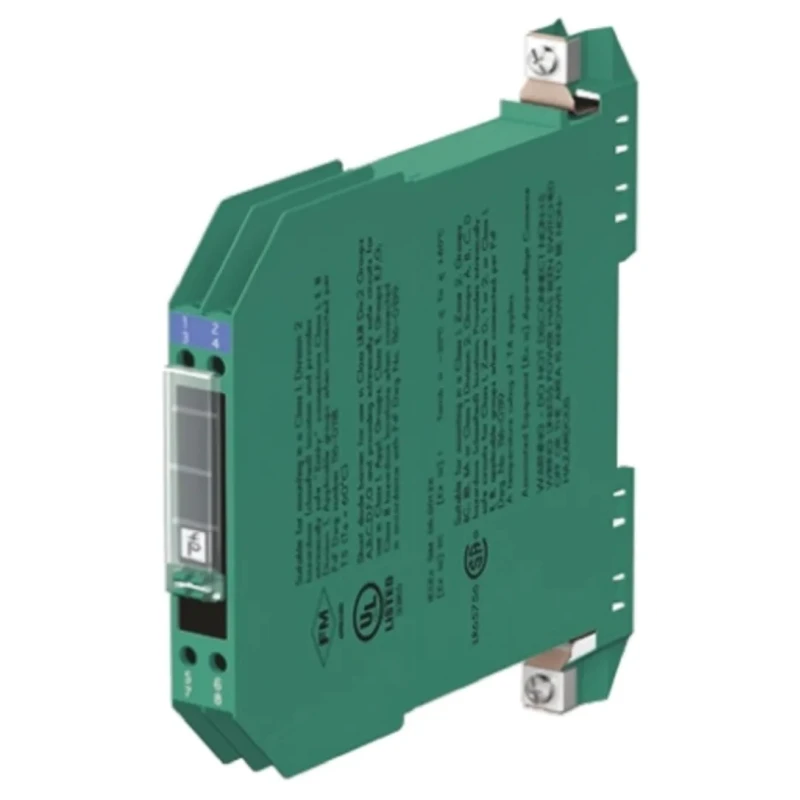

Pepperl + Fuchs 2 Channel DIN Rail Mount Zener Barrier, ATEX Certified, 19V DC Supply Voltage, 85mA Max Current Z896
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | Z896 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | Z896 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 2 |
| Supply Voltage | 19V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | EN, IEC, CE, TUV |
| Barrier Type | Zener Barrier |
| Safety Current Resistance | 340Ω |
| Maximum Safety Current | 85mA |
| Maximum Safety Voltage | 250V |
Key Features
- This device features dual channel zener diode barriers to prevent direct grounding of intrinsically safe circuits.
- It is designed for DIN rail mounting, enabling easy installation in control panels.
- The barrier safely conducts electrical signals while limiting energy transfer to hazardous zones.
- It operates with a 19V dc supply voltage and has a maximum safety current of 85mA.
- The barrier complies with ATEX certification and multiple international standards including EN, IEC, CE, and TUV.
- It offers protection with an IP20 rating, suitable for industrial environments.
- The device can operate safely between -20°C and 60°C temperature range.
- Screw terminals provide secure and reliable wiring connections.
Product Description
Pepperl + Fuchs Z896 2 Channel Zener Barrier is a DIN rail mounted signal isolation device designed to ensure intrinsic safety in hazardous industrial environments. Featuring dual channel zener diode barriers, this product prevents direct grounding of intrinsically safe circuits, enhancing system reliability and operator safety.
Using Makrolon® housing for durability, the Z896 barrier conducts electrical signals bidirectionally between safe and hazardous zones while limiting the energy transfer in fault conditions. Its robust design suppresses interference influences from external circuits, making it ideal for interfacing thermocouples and other instrumentation in intrinsically safe circuits.
The unit operates at a 19V DC supply and supports a maximum safety current of 85mA, with safety voltage up to 250V. Certified to ATEX standards and compliant with EN, IEC, CE, and TUV, the barrier is suited for use in Zone 0/1 hazardous areas requiring certified intrinsically safe equipment.
The device features screw terminal connections for secure wiring and an IP20 ingress protection rating, providing resistance to solid objects and ensuring safe operation within electrical cabinets and panels. Its operating temperature range from -20°C to 60°C covers typical industrial conditions.
Dual channel zener diode barrier prevents direct circuit grounding. DIN rail mount for convenient installation in control panels. Limits energy transfer for intrinsic safety in hazardous areas. Operates at 19V dc supply voltage and 85mA maximum safety current.
ATEX certified and compliant with EN, IEC, CE, TUV standards. IP20 rated enclosure suitable for industrial environments. Operating temperature range from -20°C to 60°C. Screw terminal connections for secure wiring.
Typical use cases include industrial process control and automation requiring signal isolation and intrinsic safety, particularly in hazardous locations involving flammable gases or dust. This barrier serves as an interface between non-intrinsically safe and intrinsically safe circuits, protecting equipment and personnel.
Explore more high-quality signal conditioners and isolators from trusted industrial brands on EnvMart.
Explore more products in our Signal Conditioners & Isolators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum safety current for this model is 85mA.
It operates with a supply voltage of 19V DC.
The operating temperature range is from -20°C to 60°C.
This unit is designed for DIN rail mounting, facilitating easy installation in control panels.
The device has an IP20 ingress protection rating, suitable for industrial environments.
It is certified to ATEX standards, making it suitable for use in hazardous areas.
It complies with multiple international standards including EN, IEC, CE, and TUV.
This model features two channels for signal isolation.
It uses screw terminals for secure wiring connections.
The maximum safety voltage is 250V.
This unit is classified as a zener barrier, designed to limit energy transfer in hazardous conditions.
The country of origin for this model is Indonesia.
