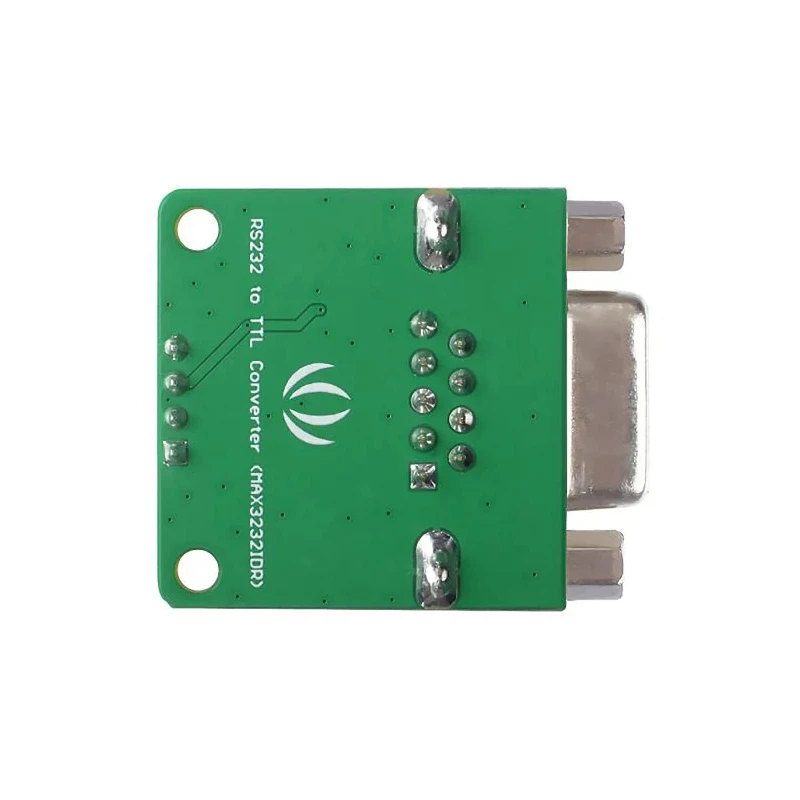

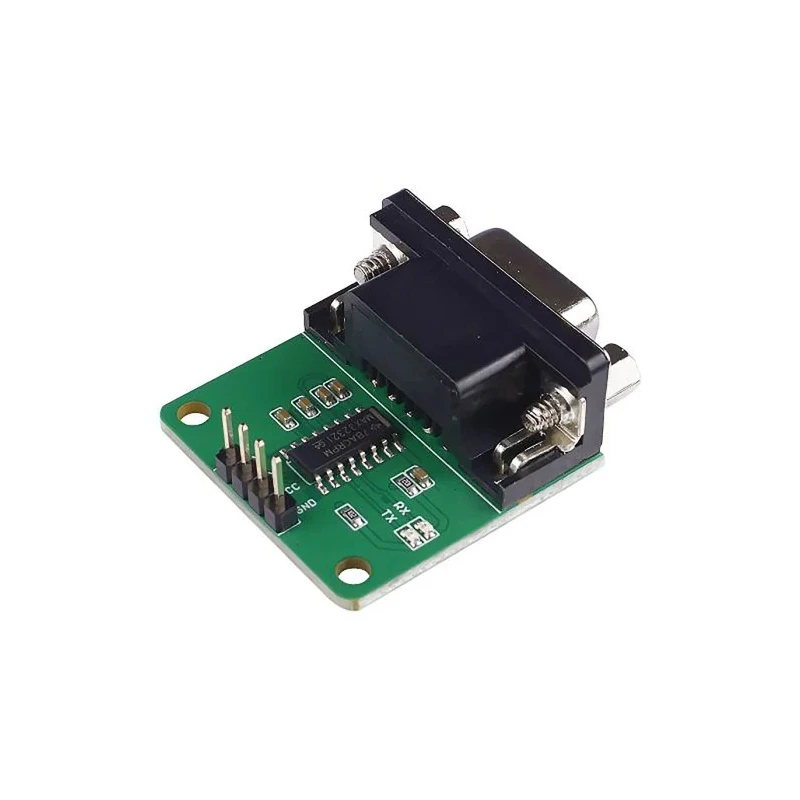

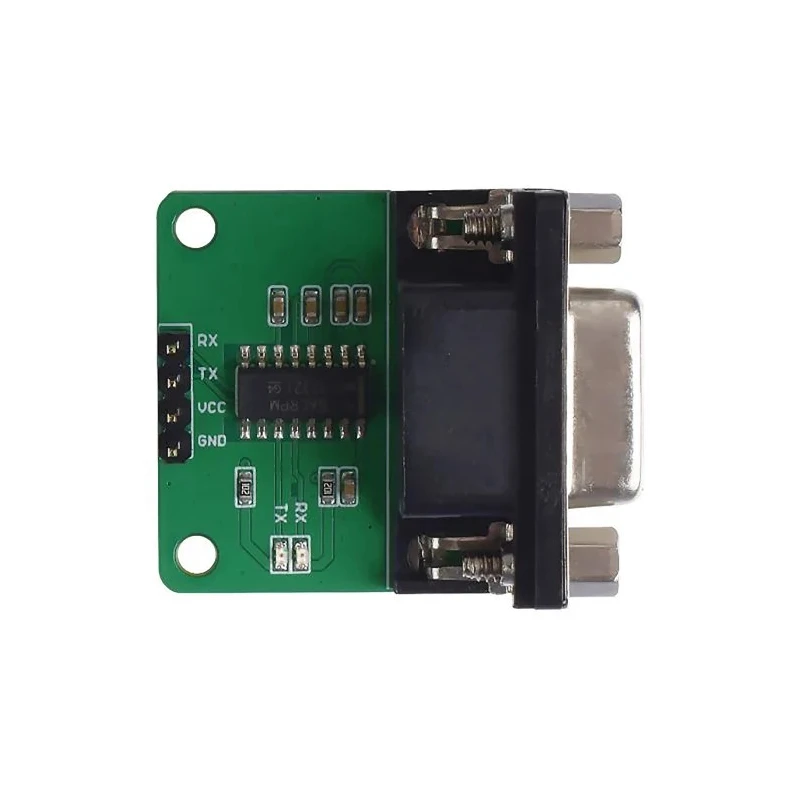

Seeed Studio RS232 TTL Interface Converter, 1 Port, Max Baud Rate 250kbps, Desktop, Standards TIA/EIA-232-F, ITU V.28 RS232
Specifications
| Country of Origin | China |
|---|---|
| Brand | Seeed Studio |
| Model | RS232 |
| OUTPUT PORT | Data Output |
| Number Of Ports | 1 |
| Standards/Approvals | TIA/EIA-232-F, ITU V.28 |
| Bus Type | RS232, TTL |
| Input Port | Rin |
| Maximum Baud Rate | 250kbps |
| Desktop/Rack Mount | Desktop |
Key Features
- Converts RS-232 level signals to TTL level signals for MCU communication.
- Based on MAX3232IDR chip supporting multiple baud rates up to 230400bps.
- Includes two drivers and two receivers for stable and high-speed data transfer.
- Designed for desktop mounting with a DB9 female header interface.
- Features ±15-kV ESD protection ensuring device durability.
- Low power consumption suitable for embedded applications.
- Compliant with standards TIA/EIA-232-F and ITU V.28.
- Typical applications include hand-held equipment and palmtop PCs.
Product Description
Seeed Studio RS232 TTL Interface Converter RS232 is a desktop mounted interface adapter designed to convert RS-232 level signals to TTL voltage levels suitable for microcontroller units (MCUs). The device utilizes the MAX3232IDR integrated circuit, supporting data transmission speed up to 230400bps, although commonly it supports a maximum baud rate of 250kbps.
This converter includes two drivers and two receivers for balanced high-speed data communication. It features a DB9 female header facilitating easy serial port connectivity with computers and other RS-232 compliant devices.
Designed with ±15-kV electrostatic discharge (ESD) protection, the device ensures durability and reliable operation in varying industrial and embedded environments. Its low power consumption makes it ideal for battery-powered and handheld equipment including palmtop PCs and various embedded computing platforms.
Complying with industry standards TIA/EIA-232-F and ITU V.28, it assures compatibility and stable performance across a wide range of electronic systems requiring serial communication interface conversion.
Converts RS-232 signal levels to TTL levels for MCU communication reliability. Supports baud rates up to 230400bps providing flexibility for varying data speeds. Offers ±15-kV ESD protection to safeguard connected devices from static damage.
Includes two drivers and two receivers for stable bidirectional communication. Equipped with DB9 female header for straightforward interface connection. Low power consumption suitable for embedded and portable applications.
Compliant with TIA/EIA-232-F and ITU V.28 standards for broad compatibility. Ideal for use in hand-held equipment and palmtop personal computers.
Seeed Studio RS232 TTL Interface Converter is well suited for industrial, laboratory, embedded systems, and communication applications where RS-232 to TTL signal level conversion is necessary. Browse our Interface Converter category at EnvMart for similar high-quality adapters and converters from top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum baud rate supported by this model is 250kbps, allowing for high-speed data transmission.
It complies with the TIA/EIA-232-F and ITU V.28 standards, ensuring compatibility with a wide range of electronic systems.
This converter features one port, designed for data output.
It is designed for desktop mounting, making it suitable for various applications where space is a consideration.
This unit features ±15-kV ESD protection, which helps safeguard connected devices from static damage.
The input port type for this converter is Rin, which is used for receiving RS-232 signals.
It is primarily used for converting RS-232 level signals to TTL level signals for microcontroller communication, making it suitable for embedded applications.
The output port type is designed for data output, facilitating communication with other devices.
It utilizes the MAX3232IDR integrated circuit, which supports stable and high-speed data transfer.
Yes, its low power consumption makes it suitable for battery-powered and handheld equipment, including palmtop PCs.
This model supports RS232 and TTL bus types, allowing for versatile connectivity options.
The country of origin for this interface converter is China.
