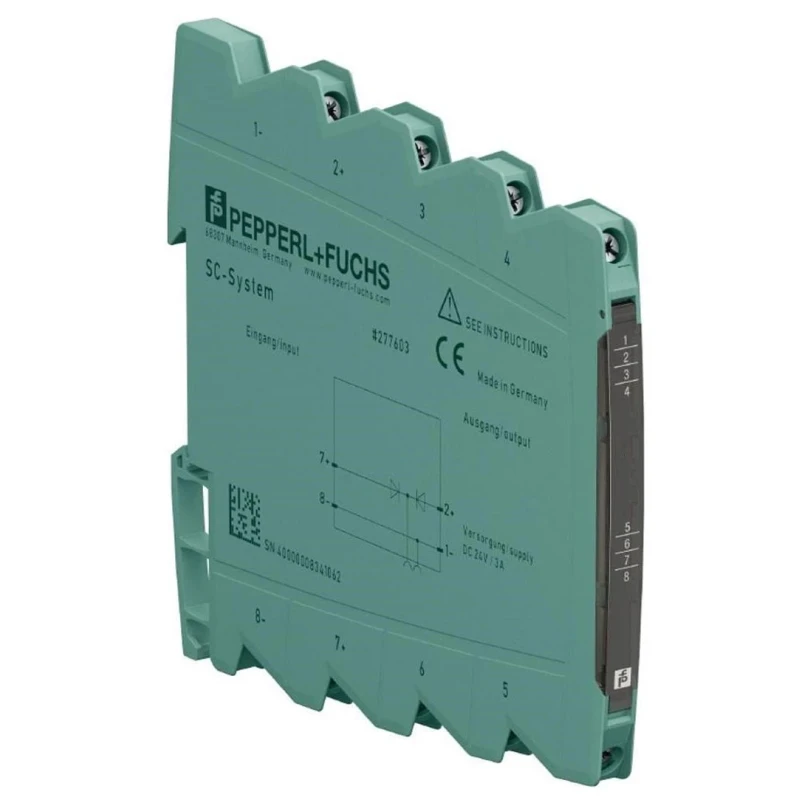

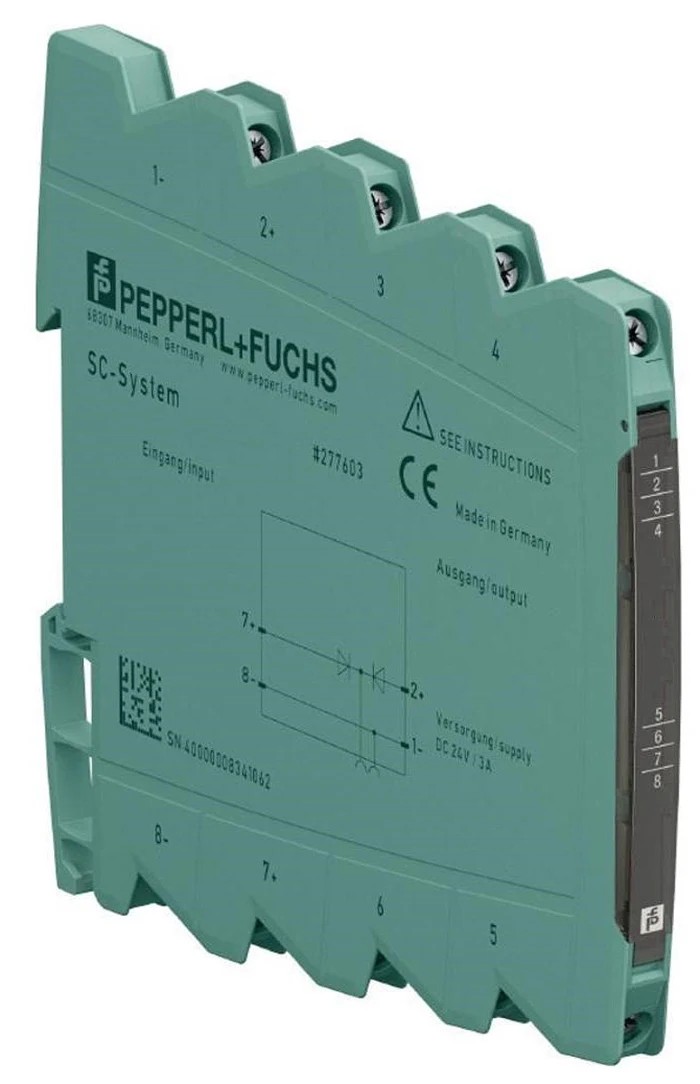

Pepperl + Fuchs 1-Channel Signal Conditioner Digital Input Relay Output 16.8/31.2V dc Supply S1SD-1Di-1R
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | S1SD-1Di-1R |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | S1SD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 24 V dc, 2 mA |
| Supply Voltage | 16.8, 31.2V dc |
| Hazardous Area Certification | ATEX, IECEx |
| Input Signal Type | Digital |
| Output Signal Type | Relay |
| Signal Conditioner Type | 1-Channel Signal Conditioner |
Key Features
- Compact 6 mm wide module with 97 mm height for minimal space usage.
- High-quality galvanic isolation ensuring reliable process communication.
- Wide operating temperature range from -25°C to 70°C for versatile industrial environments.
- DIN rail mounting with screw terminals for secure installation.
- Supports multiple input signals including S0 Sensor, NAMUR Sensor, NPN and PNP Sensors.
- Designed for use in automation, electrical, and control systems in industrial settings.
- Device certified for use in hazardous areas with ATEX and IECEx approvals.
Product Description
Pepperl + Fuchs S1SD-1Di-1R is a high-performance 1-channel signal conditioner designed for digital input with relay output. It operates on 16.8 V and 31.2 V dc supply voltages, making it suitable for a wide range of industrial applications requiring precise signal conditioning and isolation.
Specially engineered for use in hazardous environments, this signal conditioner holds certifications for ATEX and IECEx, ensuring compliance with international safety standards. The device features galvanic isolation up to 300 V operating voltage and 3 kV test voltage, which protects circuits from electrical faults and interference.
The compact housing with a 6 mm module width and 97 mm height optimizes space usage on DIN rails, and screw terminal connections simplify wiring during installation. The operating temperature range from -25°C to 70°C makes it suitable for harsh industrial conditions.
Input signal types supported include various sensors such as S0, NAMUR, NPN, and PNP sensors, as well as mechanical contacts and AC sources. The output signal is provided via a relay delivering 24 V dc and 2 mA. This versatility allows integration with diverse control and automation systems. The device meets numerous standards including Directive 2014/35/EU, Directive 2014/30/EU, EN 61326-1:2013, and IEC 60529:2001, ensuring robust performance and regulatory compliance.
Applications of the Pepperl + Fuchs S1SD-1Di-1R signal conditioner span electrical automation, process control, instrumentation, and hazardous area installations where reliable and safe signal isolation and conditioning are critical.
Compact design reduces panel installation space requirements. Galvanic isolation protects against voltage spikes and noise. Wide temperature tolerance ensures performance in industrial environments. Easy DIN rail mounting for rapid deployment.
Relay output supports various control systems. Certified for hazardous areas to guarantee operator safety. Complies with key global safety and electromagnetic compatibility standards. Supports multiple sensor input types for versatile applications.
Explore more Pepperl + Fuchs Signal Conditioners and related products on EnvMart for enhanced automation and control solutions.
