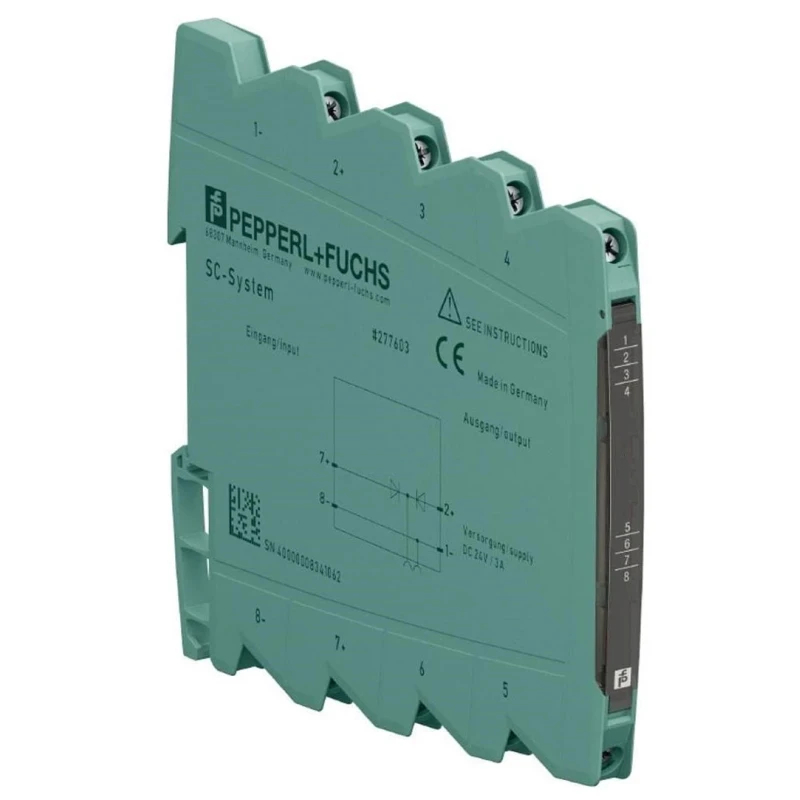

Pepperl + Fuchs 1-Channel Signal Conditioner with RTD, Thermocouple, Voltage, Potentiometer Input and Current/Voltage S1SD
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | S1SD |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | S1SD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 0 → 10 mA, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 mA, 2 → 10 V, 4 → 20 mA |
| Supply Voltage | 16.8, 31.2V dc |
| Hazardous Area Certification | DEMKO 16 ATEX 1750X |
| Input Signal Type | RTD, Thermocouple, Voltage, Potentiometer |
| Output Signal Type | Current/Voltage |
| Signal Conditioner Type | 1-Channel Signal Conditioner |
Key Features
- Compatible with RTD, thermocouple, voltage, and potentiometer input signals.
- Offers current and voltage output options for versatile signal conditioning.
- Operates at supply voltages of 16.8V and 31.2V dc.
- Compact DIN rail mounting minimizes space usage.
- Wide operating temperature range from -25°C to 70°C allows for versatile application environments.
- High-quality galvanic isolation and robust design for reliable process communication.
- Features screw-type terminals and IP20 protection rating for secure connections and safety.
- Conforms to multiple international standards and hazardous area certifications including DEMKO 16 ATEX 1750X and IECEx UL 16.0116X.
Product Description
Pepperl + Fuchs S1SD-1TI-1U is a 1-channel signal conditioner designed for industrial and automation applications, supporting input signals from RTDs, thermocouples, voltages, and potentiometers while providing current and voltage outputs. This device ensures accurate and reliable process communication across industrial and laboratory contexts.
The signal conditioner features a compact and robust design with a DIN rail mount, enabling quick and easy installation in control panels. It accepts input ranges including resistors (0 to 5 kΩ), potentiometers (0.2 to 50 kΩ), PTC voltage ranges (-100 to +100 mV and -1000 to +1000 mV), and RTDs (200 μA).
Output options include various current and voltage ranges such as 0 to 10 mA, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 2 to 10 mA, 2 to 10 V, and 4 to 20 mA, allowing flexibility to match system requirements. The supply voltage ranges from 16.8 V to 31.2 V DC.
The unit is rated for operating temperatures from -25°C to 70°C with an IP20 protection level, suitable for typical industrial environments. It features screw terminals for secure wiring and offers high-quality galvanic isolation with 300 V operating voltage and 3 kV test voltage to protect sensitive equipment.
The device complies with international standards including EN 61326-1:2013, EN 61010-1:2010, IEC 60529:2001, and ATEX and IECEx certifications, making it suitable for hazardous areas classified as Ex nA IIC T4 Gc.
Compatible with various input signal types including RTD and thermocouple. Multiple current and voltage output ranges to fit different control systems. Compact 6 mm module width and 97 mm height reduce panel space usage.
Robust design with galvanic isolation ensures operational reliability. Wide temperature operating range supports industrial applications. Easy DIN rail mount installation with screw terminals. Certifications for hazardous area use increase safety and compliance.
The Pepperl + Fuchs S1SD Signal Conditioner is ideal for industrial automation, manufacturing process control, HVAC systems, water treatment facilities, and other industrial control applications requiring precise signal conditioning and isolation.
Explore our range of signal conditioning products and related industrial automation components on EnvMart to find the optimal solution for your control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports input signals from RTDs, thermocouples, voltages, and potentiometers, allowing for versatile applications in industrial settings.
It offers multiple output options, including current ranges of 0 to 10 mA, 0 to 20 mA, and 4 to 20 mA, as well as voltage ranges like 0 to 10 V, 0 to 5 V, and 2 to 10 V.
The supply voltage for this unit ranges from 16.8 V to 31.2 V DC, accommodating various system requirements.
It operates effectively within a temperature range of -25°C to 70°C, making it suitable for diverse industrial environments.
This signal conditioner features a compact DIN rail mount design, facilitating easy installation in control panels and saving space.
It has an IP20 protection rating, which provides a level of safety for internal components against solid objects but is not water-resistant.
The S1SD features screw-type terminals, ensuring secure connections for wiring and installation.
It conforms to multiple international standards and has hazardous area certifications including DEMKO 16 ATEX 1750X and IECEx UL 16.0116X, suitable for Ex nA IIC T4 Gc environments.
The maximum operating temperature for the S1SD is 70°C, allowing it to function in high-temperature environments.
The S1SD has a compact width of 6 mm and a height of 97 mm, making it suitable for tight spaces in control panels.
It is ideal for applications in industrial automation, manufacturing process control, HVAC systems, and water treatment facilities, where precise signal conditioning is required.
This unit provides both current and voltage output signals, allowing for flexibility in various control systems.
