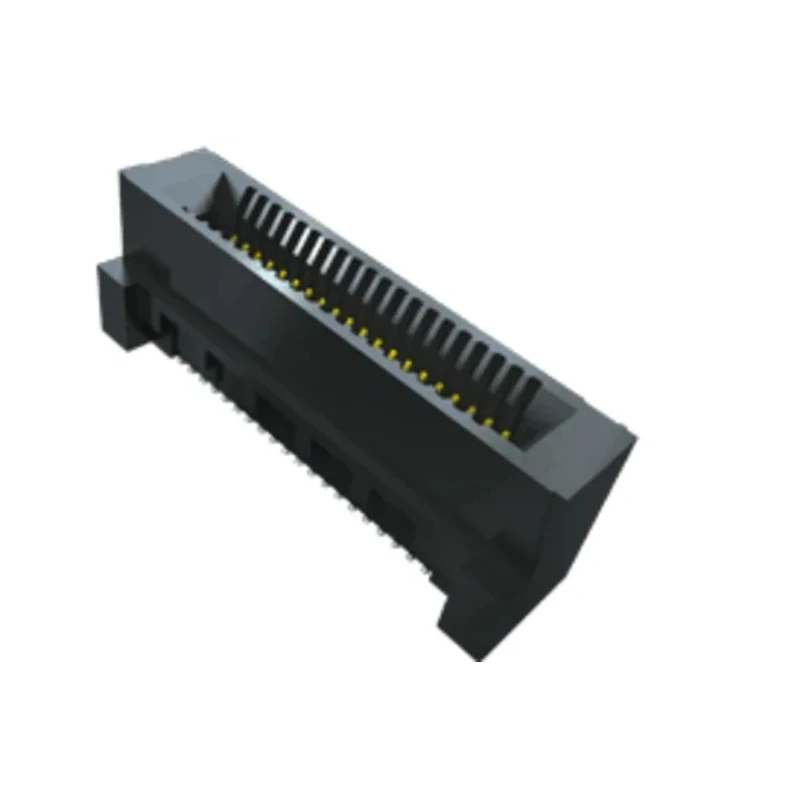

Samtec HSEC8-PE Series Vertical Edge Connector Female, Surface Mount, 20 Contacts, 0.8 mm Pitch, 2 Rows, Solder Termination

Samtec HSEC8-PE HSEC8-110-01-S-DV-A Vertical Edge Connector is a premium-quality, surface-mount connector designed for electronic applications requiring reliable and compact edge card connections. It provides 20 female contacts arranged in 2 rows with a precise 0.8 mm pitch, ensuring consistent signal integrity and efficient PCB layout integration.

The connector is constructed with a durable liquid crystal polymer housing that withstands operating temperatures ranging from -55°C to 125°C. Its beryllium copper alloy contacts are gold-plated to ensure excellent electrical conductivity and long-lasting performance even under demanding conditions. Rated for 2.8 amperes current and 240 volts, it accommodates high power requirements in various electronic systems.

Its design includes a solder termination type for secure mounting on printed circuit boards, with a card thickness specification of 1.6 mm suitable for standard edge card slots of 0.062 inch (1.60 mm). The rugged Edge Rate® contact system supports single-ended and differential signal pairs, enabling high-speed data transmission up to 28+ Gbps.

Additional mechanical features such as optional board locks, cable latching, and weld tabs enhance stability and mechanical strength in applications subject to vibration or movement.

Manufactured in the United States, this connector belongs to the HSEC8-PE series and meets industrial standards for electronic connectors without specific global approvals. It is commonly used in power, computing, and electronic component assemblies in industrial, laboratory, manufacturing, and commercial environments.

The connector features a vertical orientation with two rows of contacts. Contact plating is gold over beryllium copper alloy for enhanced conductivity. Operates reliably between -55°C and 125°C temperature range. Rated for 2.8A current at 240V voltage level.

Housing is made from liquid crystal polymer for insulation and durability. Solder termination ensures a strong and stable PCB connection. Supports 1.6 mm card thickness with .062 inch card slot compatibility. Designed for use in high-speed electronic assemblies up to 28+ Gbps data rates.

Explore the diverse range of electronics components and Edge Connectors available at EnvMart for your industrial and commercial projects. Find related products from Samtec and enhance your system's connectivity with trusted components.
