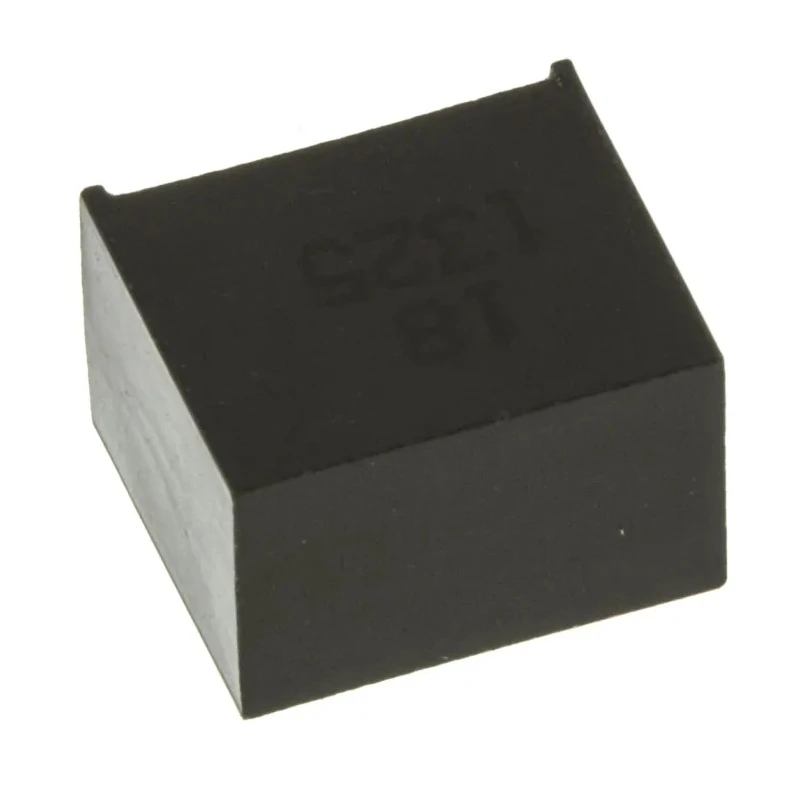

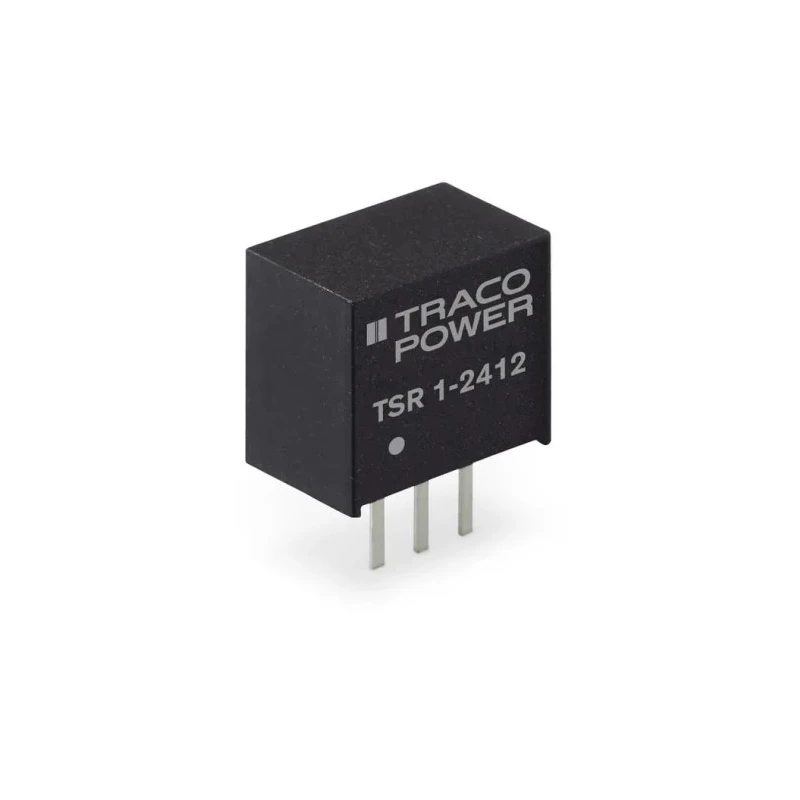

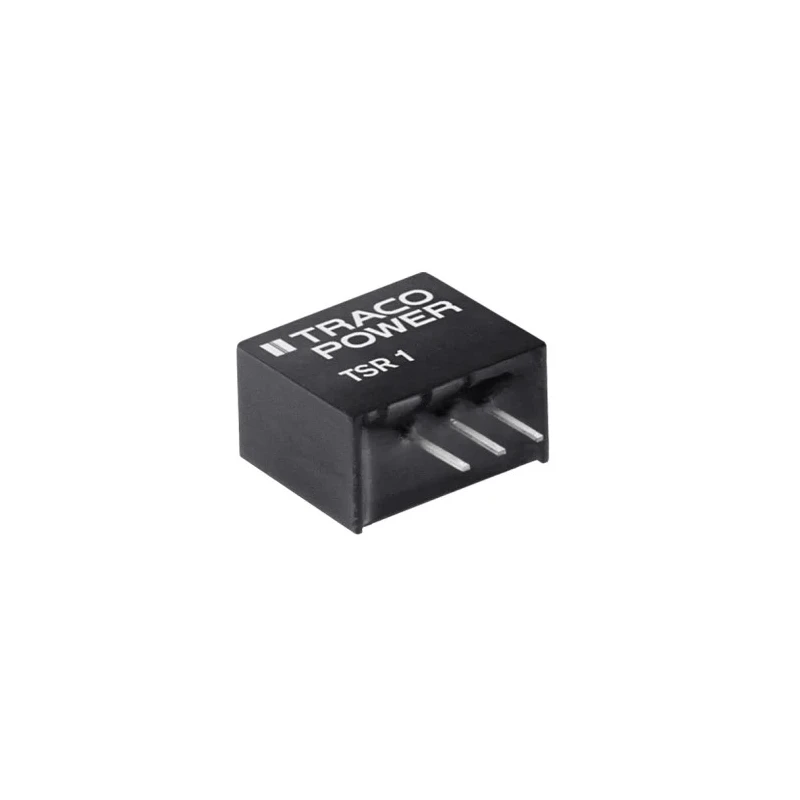

TRACOPOWER Switching Regulator Through Hole 12V DC Output Voltage 1A Output Current 12W Power TSR 1-24120

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Regulator Through Hole 12V DC Output Voltage 1A Output Current 12W Power TSR 1-24120

Name: TRACOPOWER Switching Regulator Through Hole 12V DC Output Voltage 1A Output Current 12W Power TSR 1-24120
Brand: TRACOPOWER
SKU: 204451
Price: 8.95 USD
Availability: InStock



Category Switching Regulator Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	12W
Efficiency	95%
Length	11.7mm
Model	TSR 1-24120
Depth	10.2mm
Gross Weight	1.9g
Width	10.2mm
Mount Type	Through Hole
Series	TSR 1
Output Current	1A
Maximum Operating Temperature	85°C
Package Type	SIP-3
Load Regulation	±0.4 %
Minimum Operating Temperature	-40°C
MTBF	5350000h
Number of outputs	1
Ripple and Noise	75mV Pk-Pk
Maximum Input Voltage	36V dc
Line Regulation	±0.2 %
Standards/Approvals	CE
Minimum Input Voltage	15V
Output Voltage 1	12V dc

Key Features

Wide input voltage range from 15V to 36V DC for versatile power supply compatibility.
High efficiency up to 95% minimizes energy loss during conversion.
Low ripple and noise of 75mV Pk-Pk to ensure stable output signals.
Operates reliably in temperatures from -40°C to +85°C suitable for harsh environments.
Through hole mounting allows secure and easy PCB installation.
Provides short-circuit protection with automatic restart for enhanced safety.
Compact SIP-3 package with dimensions of 11.7mm length, 10.2mm width, and 10.2mm depth.
MTBF rated at 5,350,000 hours guarantees long operational life.

Product Description

TRACOPOWER TSR 1-24120 Switching Regulator is a through hole mounted voltage converter providing a regulated 12V DC output at 1A output current with a 12W power rating. This SIP-3 package regulator is engineered to maintain high efficiency up to 95%, minimizing energy losses during operation.

It accepts a wide input voltage range from 15V to 36V DC, making it compatible with diverse power sources. The device operates within a broad temperature range of -40°C to +85°C, allowing reliable performance even in demanding industrial environments such as warehouses, construction sites, and renewable energy installations.

The regulator features low ripple and noise levels of 75mV peak-to-peak, ensuring consistent and clean output voltage, critical for sensitive electronics. An integrated short-circuit protection circuit enables the unit to automatically reboot after a fault condition, reducing downtime and enhancing safety.

The compact SIP-3 form factor with dimensions 11.7mm (L) x 10.2mm (W) x 10.2mm (D) and a lightweight design of 1.9g supports easy and secure through hole mounting on printed circuit boards.

With an MTBF of 5,350,000 hours and CE certification, the TSR 1-24120 is built for durability and compliance with industry standards. Wide input voltage range between 15 and 36V DC. High efficiency up to 95% for energy saving.

Low ripple voltage of 75mV Pk-Pk for stable output. Operating temperature range from -40°C to +85°C. Compact SIP-3 package with through hole mounting. Integrated short-circuit protection with auto restart feature. Lightweight at 1.9 grams for minimal PCB load.

MTBF of 5,350,000 hours ensures long service life. CE certified for quality and safety compliance. Ideal for warehouses, construction, and renewable energy applications. Discover more high-quality power management components and Switching Regulators in our Electronics & Electricals category at EnvMart.
