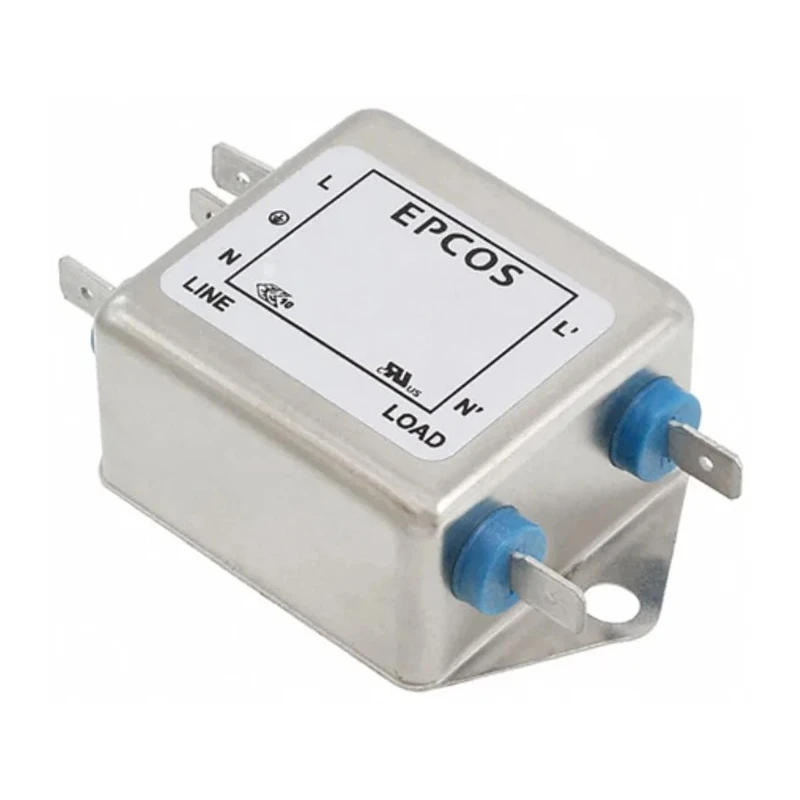

TDK Flange EMC Filter 20 A 250V ac/dc 60Hz, Tab Termination, 1 Phase B84111F0000B120
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 26mm |
| Length | 64mm |
| Model | B84111F0000B120 |
| Depth | 74.6mm |
| Mount Type | Flange |
| Operating Frequency | 60Hz |
| Series | B84111F |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 2pF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Leakage Current | 369μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2mH |
| Standards/Approvals | UL 1283 |
| Termination Style | Tab |
Key Features
- Features tab termination style suitable for quick installation.
- Compact flange mount provides robust mechanical support.
- Operates reliably from -25°C up to 100°C.
- Low capacitance of 2 pF and inductance of 2 mH optimize leakage current.
- Leakage current rating of 369 μA ensures electrical safety compliance.
- Constructed with polyurethane potting material rated UL 94 V-0 for flame resistance.
- Includes threaded M5 studs for higher current variants of this filter series.
- Used primarily in switched mode power supplies for telecom and data systems.
Product Description
TDK B84111F0000B120 is a single-phase flange EMC filter designed for industrial and electronic power applications. Rated for a maximum current of 20 A and a voltage of 250V ac/dc operating at 60Hz, it provides efficient electromagnetic interference mitigation with optimized leakage current characteristics.
This filter features a compact flange mounting design and tab termination style (6.3 x 0.8 mm tabs), facilitating ease of installation in constrained spaces. The polyurethane potting ensures flame retardant protection as per UL 94 V-0 rating.
Designed to operate within -25°C to 100°C ambient temperature range, the filter’s electrical parameters include a capacitance of 2 pF, inductance of 2 mH, and a leakage current of 369 μA, ensuring compliant and stable performance under varied environmental conditions.
The B84111F series is widely utilized in switched mode power supplies, telecom, and data communication systems to protect sensitive electronics from power line disturbances. Compact flange mounting for mechanical stability.
Tab termination for secure electrical connection. Polyurethane potting for flame retardant safety. Meets UL 1283 and ENEC10 safety standards. Optimized leakage current for enhanced interference suppression. Wide operating temperature range ensures reliability.
Suitable for telecom and data system power supplies.
Country of origin is China. This product is offered new and complies with international standards for power line EMC Filtering. Browse EnvMart for a full range of EMC and power line filters from TDK and other brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this filter is 20 A.
It operates at a maximum voltage of 250 V ac/dc.
The leakage current rating is 369 μA, ensuring compliance with electrical safety standards.
This filter operates reliably within a temperature range of -25°C to 100°C.
It features a compact flange mounting design for robust mechanical support.
The filter has a tab termination style with 6.3 x 0.8 mm tabs for quick installation.
The inductance value is 2 mH, which helps optimize leakage current.
It meets UL 1283 and ENEC10 safety standards for power line EMC filtering.
The capacitance of this model is 2 pF, contributing to its leakage current optimization.
It is primarily used in switched mode power supplies for telecom and data communication systems.
The dimensions are 64 mm in length, 74.6 mm in depth, and 26 mm in height.
The filter is constructed with polyurethane potting material rated UL 94 V-0 for flame resistance.
