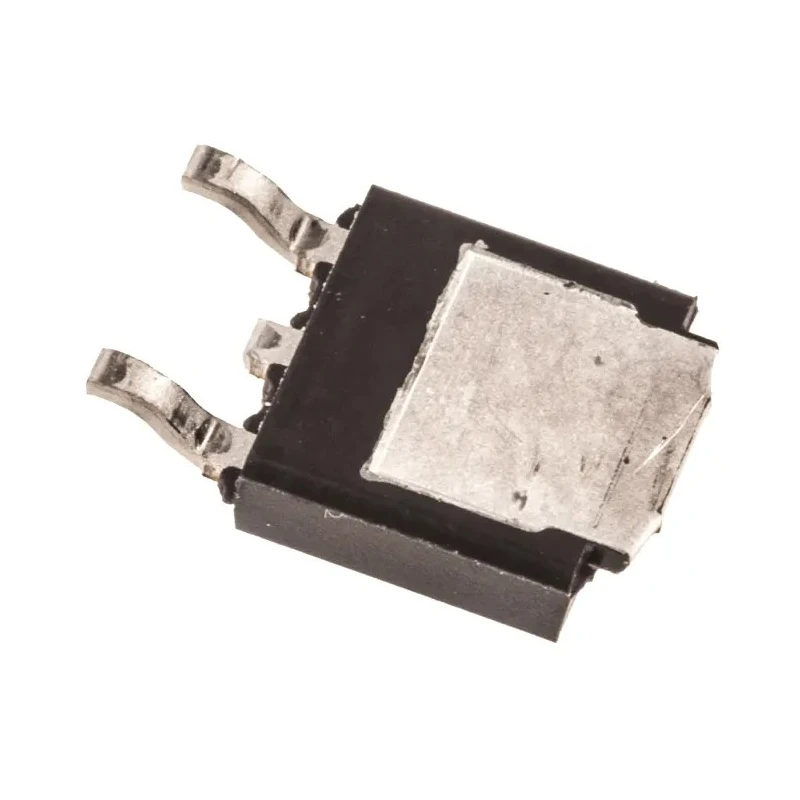

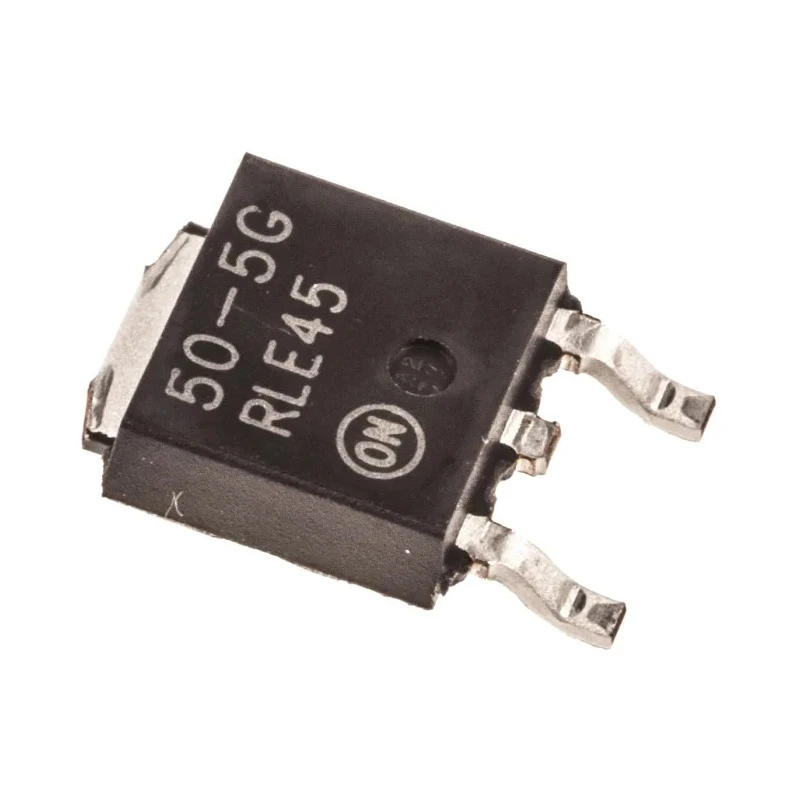

onsemi Surface Mount Low Dropout Linear Voltage Regulator 30V 3-Pin LP2950CDT-5.0G

onsemi LP2950CDT-5.0G is a surface mount low dropout (LDO) linear voltage regulator designed for power management in electronic circuits. This 3-pin device delivers a regulated 5V output with a maximum current of 120mA, making it suitable for compact and power-efficient applications.

With a maximum input voltage rating of 30V and a low quiescent current of 75μA, this regulator minimizes power loss while providing stable voltage supply. Its compact physical dimensions (6.73mm x 6.22mm x 2.38mm) support space-constrained PCB layouts.

Engineered to meet the automotive industry standard AEC-Q100, the LP2950CDT-5.0G ensures reliable operation under harsh environmental conditions and wide temperature ranges up to 125°C. The device features a positive polarity design and surface mount package to facilitate efficient assembly and integration in manufacturing.

Common applications include automotive electronics, industrial control systems, consumer electronics, and other environments requiring precise, dependable voltage regulation. The LDO technology ensures fast transient response and low noise for sensitive analog and digital circuitry.

Package contains the LP2950CDT-5.0G voltage regulator in a 3-pin surface mount tube format, suitable for automated insertion into PCB assembly lines. Operates with maximum input voltage of 30V for versatile applications.

Features low quiescent current of 75μA to maximize energy efficiency. Compact dimensions: 6.73mm length, 6.22mm width, and 2.38mm height. Meets automotive AEC-Q100 standard ensuring high reliability in automotive systems.

Supports positive polarity voltage regulation with 3-pin configuration. Maximum operating temperature rated at 125°C for extended durability. Explore a wide range of Voltage Regulators and power management ICs within the Power Management ICs category at EnvMart for optimized electronic design solutions.
