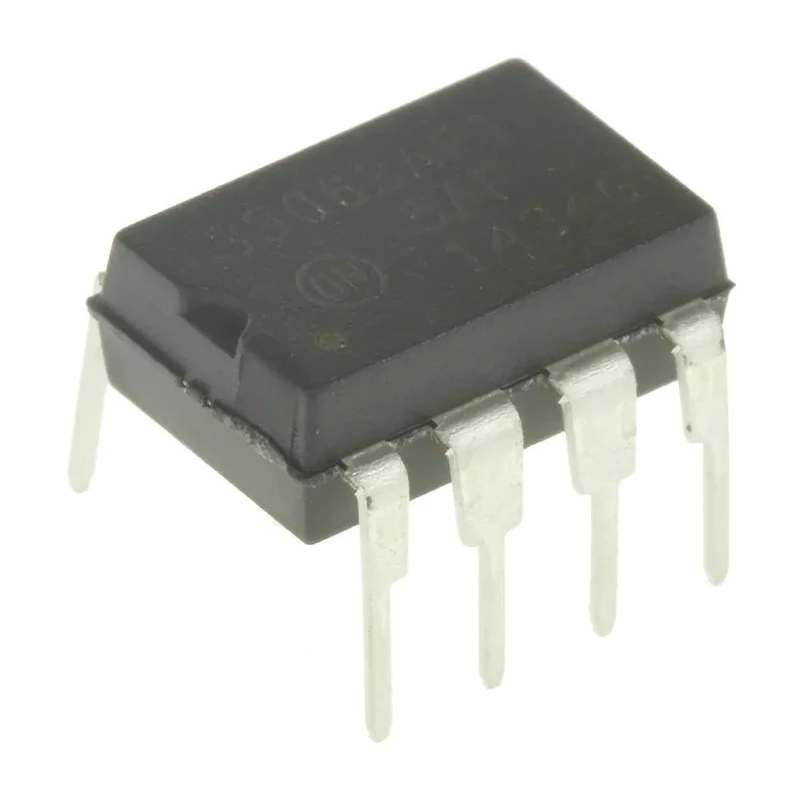

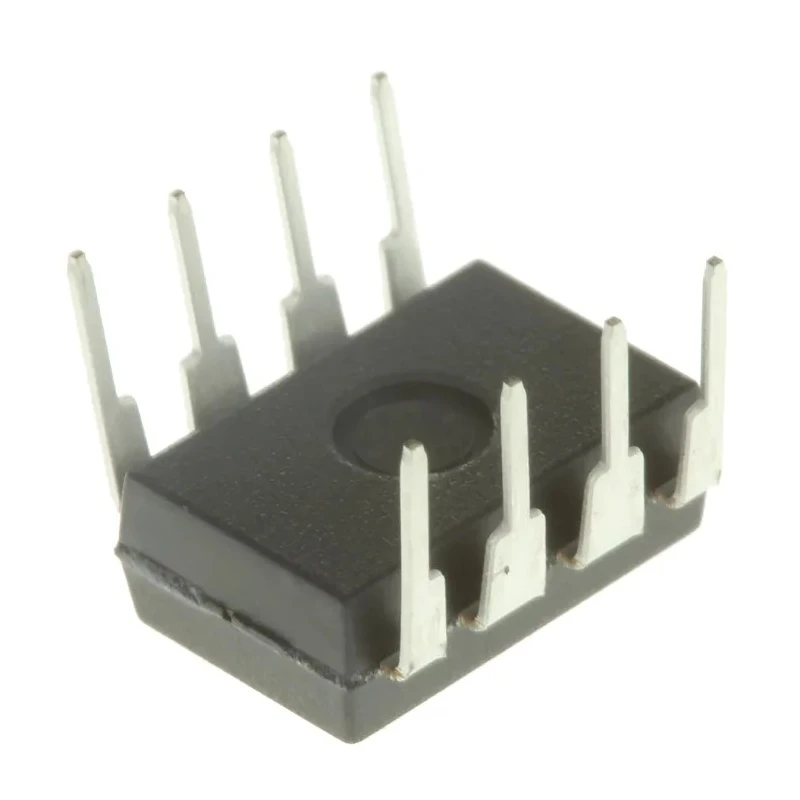

onsemi 5-Channel Boost, Buck, Buck Boost Switching Regulator 1.5 A 40V 100 kHz PDIP 8-Pin MC33063AP1G

onsemi MC33063AP1G is a versatile 5-Channel Boost, Buck, Buck Boost Switching Regulator designed for precise voltage regulation in electronic power management applications. This adjustable output regulator operates at a switching frequency of 100 kHz, delivering up to 1.5 A output current and supporting an output voltage up to 40 V. The device is housed in a PDIP 8-pin through-hole package measuring 10.16 mm in length, 6.6 mm in width, and 3.44 mm in height, suitable for integration into power management circuits requiring compact footprint and reliable mounting.

This switching regulator supports multiple operation modes including boost, buck, and buck-boost configurations, allowing flexible design choices for power electronics. The device features tight line regulation with values between 3 mV and 30 mV and exceptional load regulation from 10 mV to 0.022 V, ensuring stable and efficient voltage output despite changes in input or load conditions. The regulator is designed with inverting polarity and an adjustable output type, enhancing its adaptability in various circuit topologies.

Engineered to meet high-quality standards, the MC33063AP1G is RoHS compliant and holds the automotive standard AEC-Q100 certification, endorsing its reliability in automotive and industrial environments. Operating temperature ranges from -40°C to 85°C guarantee durability in demanding conditions.

Key features include a through-hole mount type for straightforward PCB assembly and a pin count of 8, complying with standard PDIP packaging. Its electrical and mechanical characteristics enable use across industrial, automotive, and consumer electronics applications that demand efficient power conversion and regulation.

Supports boost, buck, and buck-boost switching regulation for versatile application. Adjustable output current up to 1.5 A at 40 V output voltage. Compact PDIP 8-pin through-hole package for ease of installation. Reliable operation in temperature range -40°C to 85°C.

Meets RoHS environmental standards and AEC-Q100 automotive qualification. High line and load regulation performance for stable voltage supply. Switching frequency at 100 kHz ensures efficient power conversion. Suitable for industrial, laboratory, automotive power management circuits.

This product is ideal for engineers and designers developing power management systems requiring multi-mode DC-DC conversion with stringent performance criteria. Explore more onsemi Voltage Regulators and switching regulators in the EnvMart catalog for comprehensive power electronic solutions.
