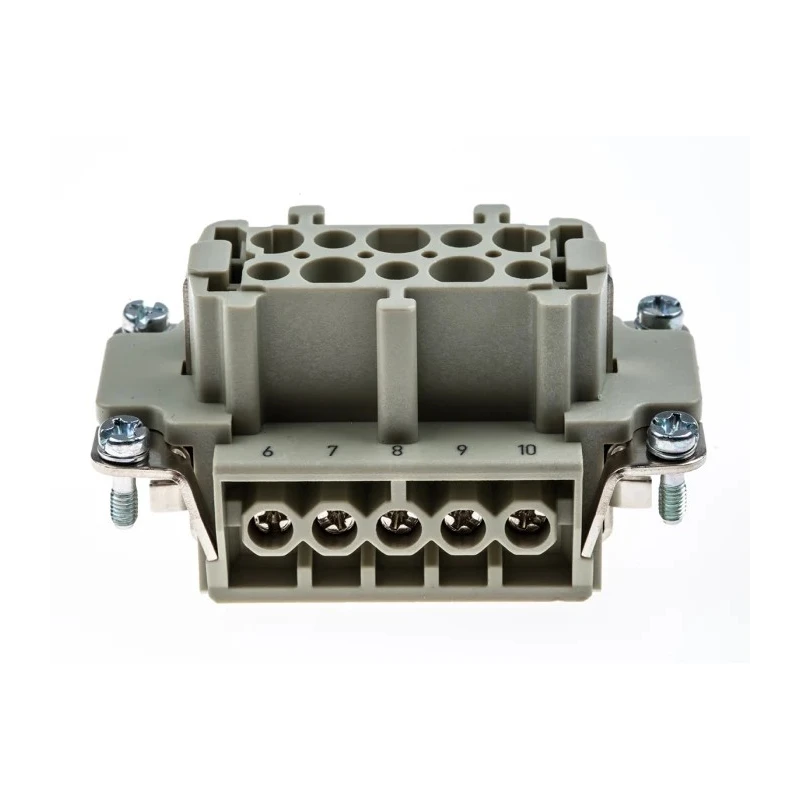

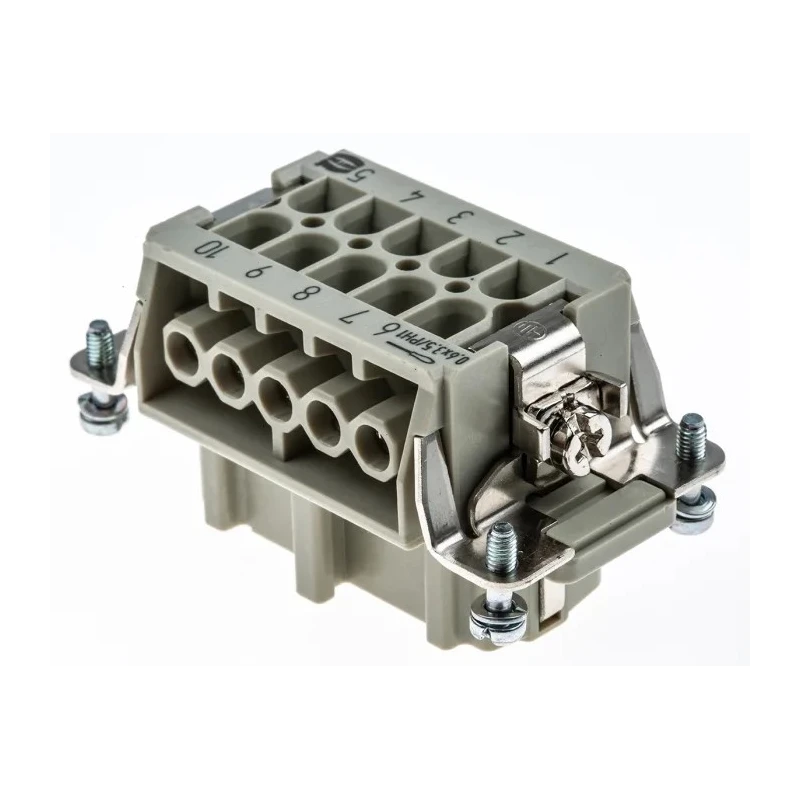

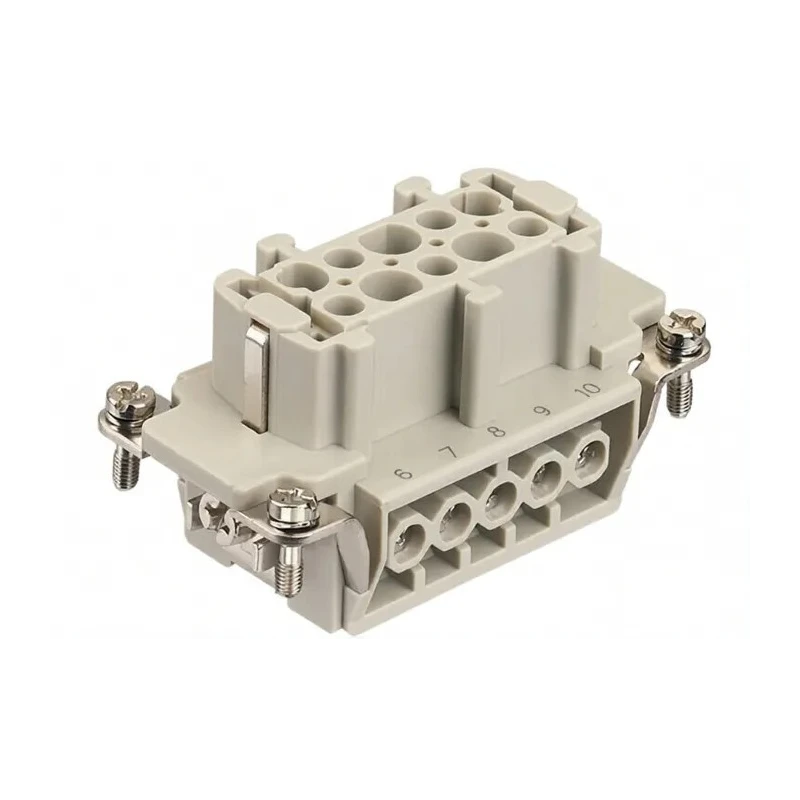

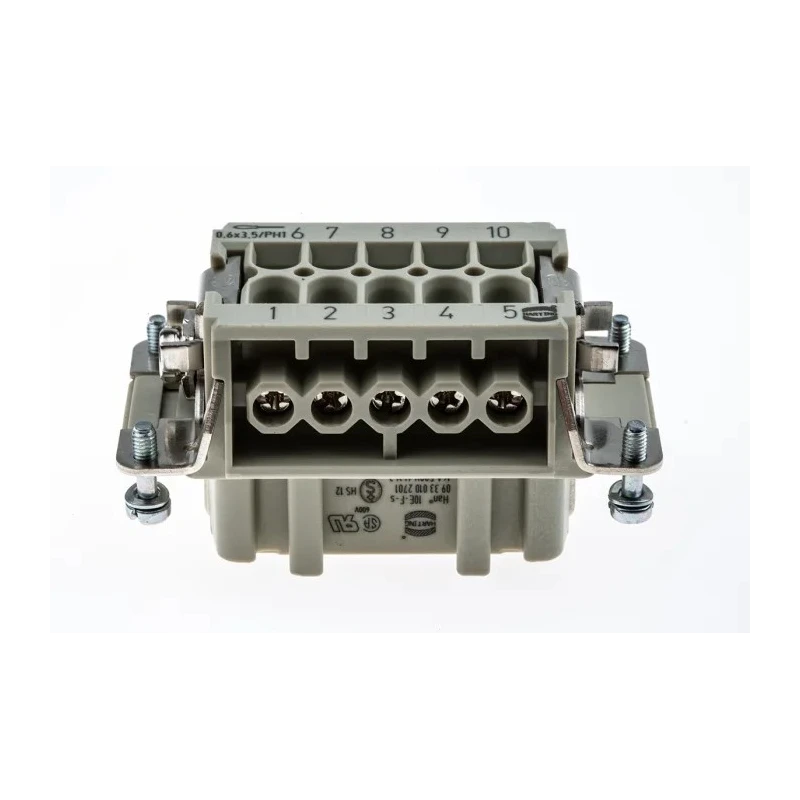

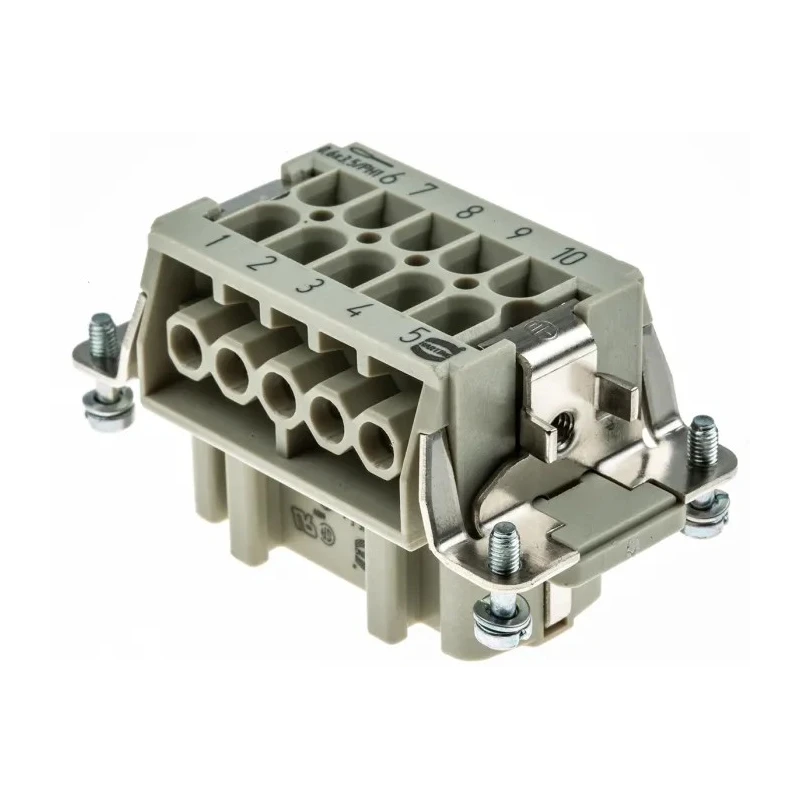

HARTING Heavy Duty Power Connector Insert, Han E Series, Female, 10 Contacts, 16A, 500V, Cable Mount 09330102701
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han E |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 10+E |
| Contact Plating | Silver |
| Number of Contacts | 10 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Heavy duty power connector insert designed for industrial applications.
- Rated for 16A current and 500V voltage operation.
- Features ten silver-plated copper alloy contacts plus protective earth pin.
- Screw termination with wire protection for secure connections.
- Cable mount orientation suitable for panel-to-cable wiring.
- Compatible with conductor sizes from 0.75mm² to 2.5mm².
- Polycarbonate insert ensures mechanical and thermal stability.
- Supports at least 500 mating cycles under normal conditions.
Product Description
HARTING 09330102701 Heavy Duty Power Connector Insert is a robust solution engineered for demanding industrial and automation power systems. This Han E Series connector insert features a female cable-mount configuration with ten power contacts plus a dedicated earth pin, supporting multi-pole electrical distribution for panel and cable connections. With a current rating of 16A and voltage capacity up to 500V, the connector ensures reliable power transmission for medium-power circuits and motor control systems.
Heavy duty connector insert constructed for safe and robust power feeds. Silver-plated copper alloy contacts promote superior conductivity and corrosion resistance. Screw termination design with integrated wire protection accommodates common conductor sizes (0.75 - 2.5mm²).
Straight orientation and two-row pole layout optimize panel-to-cable setup and modular installations. Polycarbonate insert material provides both thermal and mechanical stability during operation. Compatible with industry standard heavy duty connector housings (size code 10B).
Supports up to 500 mating cycles, making it ideal for repeated maintenance and equipment retrofits. UL, CSA, SEV approvals ensure compliance, though the connector should not be mated or unmated under load.
This connector insert is widely used in factory automation, process control, machinery power feeds, drive connections, control panels, and switchgear installations. Its secure cable-mount and screw termination offer flexible field wiring and easy replacement in maintenance scenarios. Suitable screwdriver sizes for safe termination are slotted 0.6x3.5mm, 0.8x4.5mm, or Phillips PH1/PH2. Operating temperature range is from -40°C to +125°C.
For use cases requiring robust multi-pole connectors with secure earth provision, the HARTING Han E Series offers unrivaled durability and versatility. Typical environments include industrial production lines, equipment racks, automated control cabinets, and field wiring in demanding settings.
Explore more in EnvMart's Electronics & Electricals category for modular and heavy duty connector solutions from HARTING and leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a current rating of 16A and a voltage capacity of 500V.
It features ten contacts plus a dedicated earth pin, making it suitable for multi-pole electrical distribution.
It is compatible with conductor sizes ranging from 0.75mm² to 2.5mm².
It utilizes a screw termination design with integrated wire protection for secure connections.
The connector insert has a straight orientation suitable for cable mounting.
It supports at least 500 mating cycles under normal conditions, making it suitable for repeated use.
The contacts are made of silver-plated copper alloy, which enhances conductivity and corrosion resistance.
The operating temperature range is from -40°C to +125°C.
This model belongs to the Han E Series of heavy duty power connector inserts.
The thread size for this connector is M3 x 10.
It is widely used in factory automation, process control, machinery power feeds, and control panels.
Yes, it has UL, CSA, and SEV approvals, ensuring compliance with industry standards.
