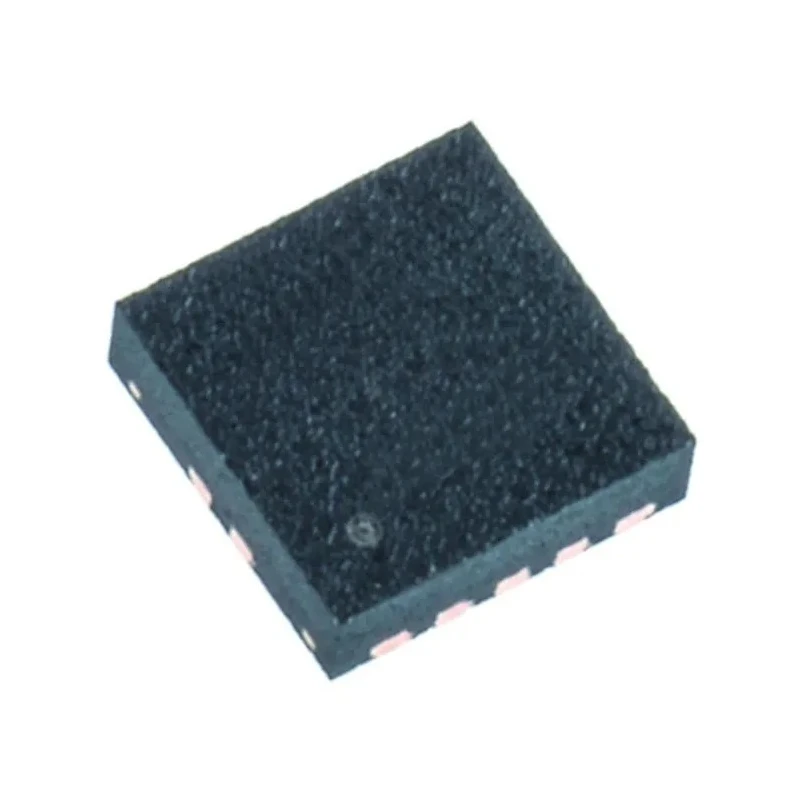

Texas Instruments 5-Channel Boost Converter 300 mA 3.33V 1650 kHz SON 10-Pin TPS61201DRCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 3mm |
| Model | TPS61201DRCT |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | TPS6120x |
| Output Current | 300mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SON |
| Load Regulation | 0.1 % |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Boost |
| Switching Frequency | 1650kHz |
| Number of outputs | 5 |
| Maximum Input Voltage | 5.5V |
| Output Voltage | 3.33V |
| Quiescent Current | 55μA |
| Line Regulation | 0.1 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 300mV |
| Pin Count | 10 |
Key Features
- This boost converter employs a switching frequency of 1650 kHz for efficient power management.
- It supports a maximum input voltage of 5.5V and a minimum input voltage of 300mV.
- With a low quiescent current of 55μA, it is optimized for low power consumption applications.
- Designed in a compact SON 10-pin surface-mount package with dimensions 3mm x 3mm x 900μm.
- Operating temperature range is from -40°C to 85°C, suitable for various industrial applications.
- Line and load regulation are maintained at 0.1% for stable output voltage.
- Compliant with RoHS standards ensuring environmental safety.
- Ideal for electronic devices requiring efficient DC/DC step-up voltage conversion.
Product Description
Texas Instruments TPS61201DRCT is a high-efficiency 5-channel boost converter designed for applications requiring a fixed output voltage of 3.33V and output current up to 300mA. This device utilizes a high switching frequency of 1650 kHz, enabling compact designs and fast transient response.
The TPS61201DRCT boost converter operates with a wide input voltage range from 300 mV minimum up to 5.5 V maximum, making it suitable for battery-powered and low voltage systems. Its very low quiescent current of 55 μA maximizes energy efficiency in standby modes, thereby extending battery life in portable applications.
Housed in a 10-pin SON surface-mount package measuring just 3mm x 3mm x 0.9mm, this regulator offers space-saving benefits for dense circuit boards. The device guarantees robust performance within an operating temperature range of -40°C to 85°C, suitable for demanding industrial, consumer electronics, and communication equipment environments.
Both line regulation and load regulation are tightly controlled at 0.1%, ensuring a steady and reliable output voltage. This boost converter is fully RoHS compliant, addressing environmental and safety requirements.
Common practical applications include power management for portable electronics, handheld devices, sensors, and other embedded systems where step-up voltage regulation is needed. High switching frequency optimizes size and response.
Low quiescent current enhances battery life. Compact SON 10-pin package allows dense PCB layouts. Wide input range supports diverse power sources. Stable output with tight regulation specifications. Range of industrial and consumer application suitability.
For detailed industrial component selections, browse EnvMart's extensive Voltage Regulators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPS61201DRCT provides a fixed output voltage of 3.33V.
This model supports a maximum input voltage of 5.5V.
It operates at a high switching frequency of 1650 kHz, which enhances efficiency and transient response.
The TPS61201DRCT can supply an output current of up to 300mA.
The SON package measures 3mm x 3mm x 900μm.
The quiescent current is 55μA, which is optimized for low power consumption applications.
It operates within a temperature range of -40°C to 85°C, suitable for various industrial applications.
Both line regulation and load regulation are maintained at 0.1%, ensuring stable output voltage.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
This boost converter features 5 outputs.
It is designed for surface mounting.
It is suitable for power management in portable electronics, handheld devices, and embedded systems requiring step-up voltage regulation.
