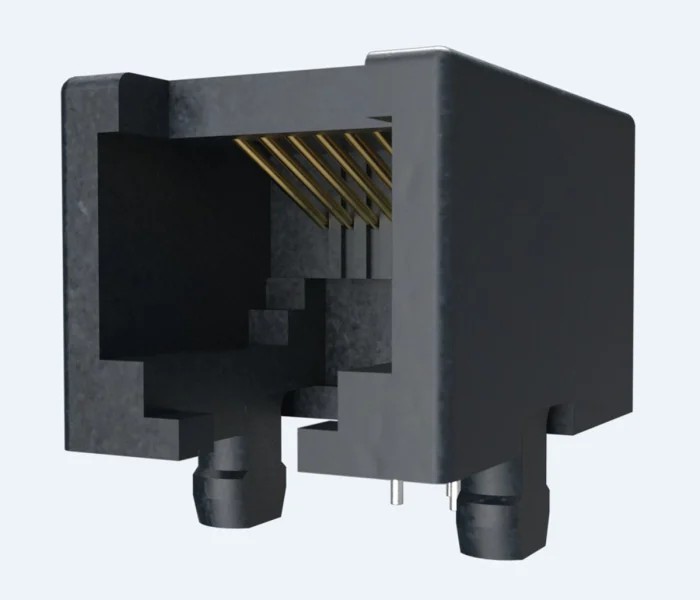

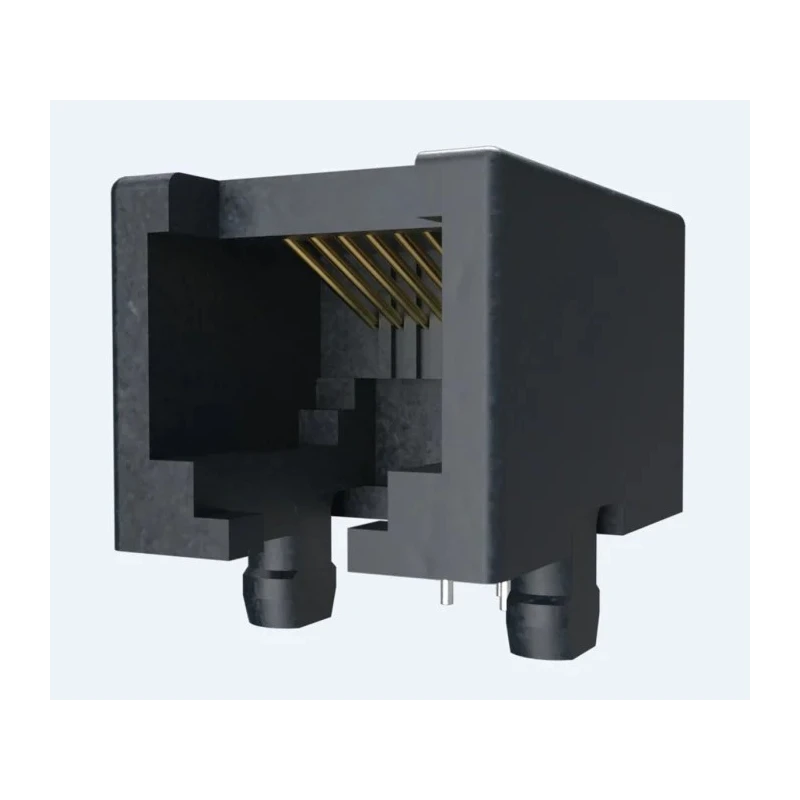

Amphenol Communications Solutions RJ45 Modular Jack PCB Mount Cat3 Tin Plated Brass Alloy Shield Female Connector 92250-088LF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Length | 15.24mm |
| Model | 92250-088LF |
| Depth | 18.2mm |
| Connector Type | Modular Jack |
| Number Of Ways | 8 |
| Width | 11.7mm |
| Mount Type | PCB |
| Contact Material | Phosphor Bronze |
| Series | 92250 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Shield Type | Tin Plated Brass Alloy |
| Contact Plating | Tin |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ45 |
Key Features
- Designed as a female RJ45 modular jack for secure network connections.
- Mounts directly to printed circuit boards using through-hole solder termination.
- Supports Cat3 Ethernet transmission for data and telecom applications.
- Features a tin plated brass alloy shield for EMI and ESD protection.
- Utilizes phosphor bronze contacts with durable tin plating for consistent conductivity.
- Accommodates 8-way modular interface with single port configuration.
- Allows wide operating temperature from -65°C to 125°C for demanding environments.
- Compact low-profile footprint with dimensions of 15.24 mm (L) x 11.7 mm (W) x 18.2 mm (D).
Product Description
The Amphenol Communications Solutions 92250-088LF is a high-quality RJ45 modular jack designed for PCB mounting, providing a Cat3 rated Ethernet interface with robust shielded construction. This female connector features a right-angle orientation and is equipped with a tin plated brass alloy shield offering excellent EMI and ESD protection in network and telecommunications circuits.
Tailored for secure and reliable data transmission, the connector supports up to eight-way modular connectivity, making it ideal for both low-speed and legacy networking platforms as well as a range of datacom and telecom equipment. Its solder-through-hole design ensures firm retention on the printed circuit board, while facilitating automated or manual assembly processes.
The 92250-088LF is built with phosphor bronze contacts finished in tin, guaranteeing long-term durability and stable conductivity even with repeated use. Its compact package stands out for PCB space-saving, with a low-profile 15.24 mm length, 11.7 mm width, and 18.2 mm depth, making it suitable for high-density layouts.
Engineered for versatility, this modular jack operates efficiently over a wide temperature span from -65 degrees Celsius to 125 degrees Celsius, accommodating harsh and industrial environments. It is commonly deployed in telecommunications panels, networking switches, POS terminals, home entertainment systems, security devices, and various industrial control units.
Ideal for projects where shielded data connections and outstanding board-level retention are required, the 92250-088LF delivers reliable Ethernet links in professional networking, automation, industrial, and communications equipment.
For more Ethernet connectors, explore the extensive Amphenol Communications Solutions range in the Electronics & Electricals - Electronics Components - Ethernet Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
The minimum operating temperature for this connector is -65°C.
This unit supports a single port configuration.
It utilizes a solder termination type for mounting on printed circuit boards.
The contacts are made of phosphor bronze and are finished with tin plating for consistent conductivity.
The dimensions of this connector are 15.24 mm in length, 11.7 mm in width, and 18.2 mm in depth.
It features a tin plated brass alloy shield for EMI and ESD protection.
The orientation of this model is right angle.
This connector supports Cat3 Ethernet transmission.
It accommodates an 8-way modular interface.
It is commonly used in telecommunications panels, networking switches, POS terminals, and various industrial control units.
The brand of this connector is Amphenol Communications Solutions.
