Texas Instruments Negative LDO Linear Voltage Regulator TO-92 3-Pin MC79L12ACLP

Texas Instruments MC79L12ACLP is a negative low dropout (LDO) linear voltage regulator designed to provide a stable negative voltage output for power management in electronic circuits.

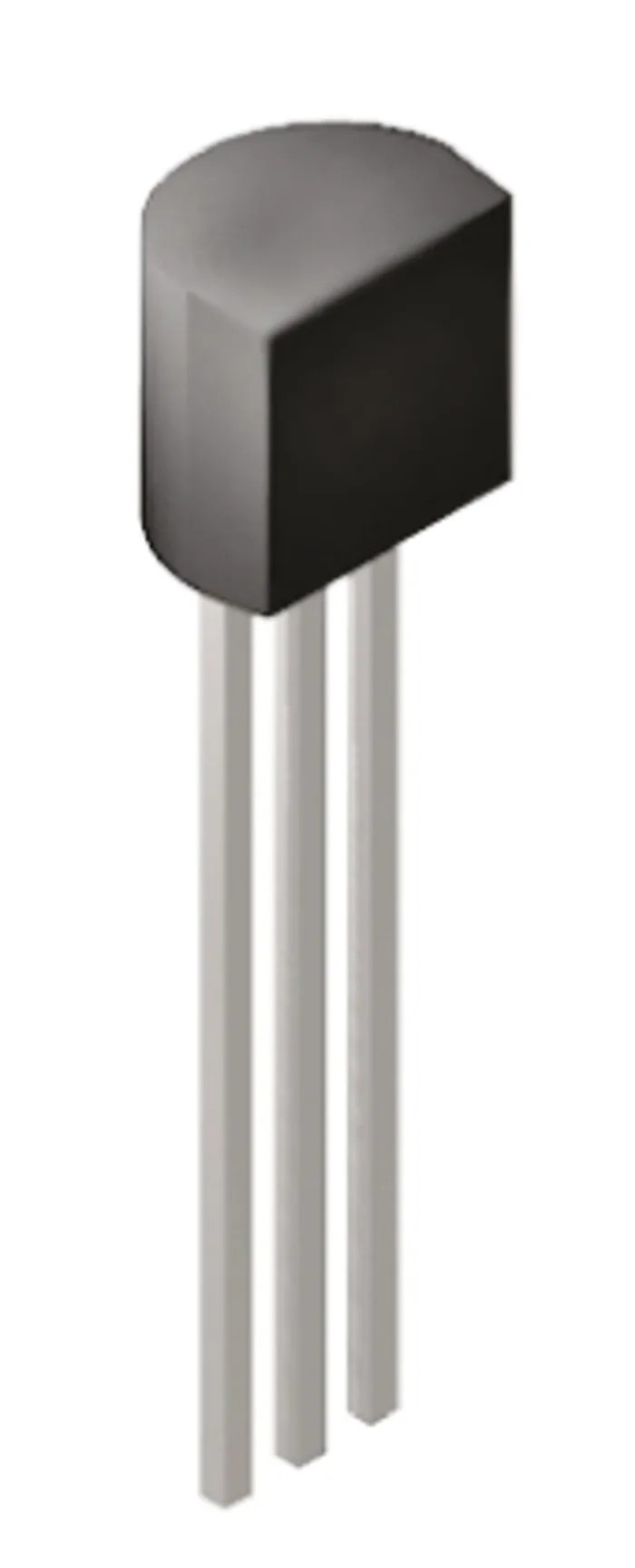

The device is housed in a compact TO-92 3-pin package, optimized for through-hole mounting on PCBs. It supports a wide input voltage range from -14.5V minimum to -27V maximum, making it suitable for various industrial and laboratory applications where negative voltage regulation is required.

Its maximum operating temperature rating of 125°C ensures reliable performance under demanding thermal conditions. The MC79L12ACLP can supply up to 100mA output current, ideal for small to medium power applications.

Its low dropout characteristic allows the regulator to maintain output voltage stability even with minimal difference between input and output voltage levels, improving efficiency and reducing heat generation.

Typical applications include power supply circuits, instrumentation, and control systems requiring negative voltage rails, especially in industrial, laboratory, and manufacturing environments.

Fits standard TO-92 packaging with through-hole mount. Operates as a negative voltage regulator for LDO applications. Maximum operating temperature rated at 125 degrees Celsius. Compact dimensions: Length 4.83mm, Width 3.43mm, Height 3.68mm.

Suitable for various electronic power management circuits requiring regulated negative voltage. Features low dropout voltage allowing stable output with a small input-output differential. Provides 100mA maximum output current capability.

This voltage regulator is a fundamental component for circuits needing precise voltage control, helping protect sensitive electronics from voltage fluctuations. Explore more Voltage Regulator options and power management ICs on EnvMart.
