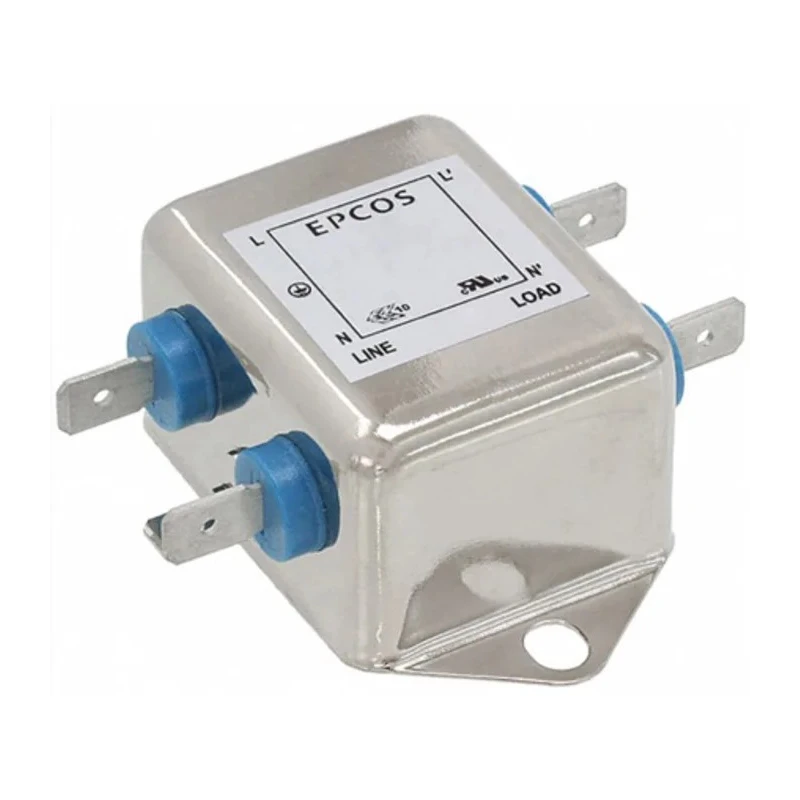

TDK Flange EMC Filter 10 A 250V ac/dc 60Hz Tab Termination Single Phase B84111F0000B110

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter 10 A 250V ac/dc 60Hz Tab Termination Single Phase B84111F0000B110



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	26mm
Length	64mm
Model	B84111F0000B110
Depth	60.6mm
Mount Type	Flange
Operating Frequency	60Hz
Series	B84111F
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL 1283
Termination Style	Tab

Key Features

Offers optimized leakage current suitable for telecom and data systems power supplies.
Compact and easy to install flange mounting type with tab termination style.
Constructed for operation between -25°C and 100°C.
Designed with 2mH inductance and 2pF capacitance for efficient noise suppression.
Features polyurethane potting compliant with UL 94 V-0 standard.
Equipped with 369μA leakage current and rated for 10A maximum current.
UL 1283 certified for electromagnetic compatibility compliance.
Manufactured in China to high industrial standards.

Product Description

TDK B84111F0000B110 Flange EMC Filter is a high-quality single-phase electromagnetic compatibility filter designed to optimize leakage current for effective noise suppression.

This filter operates reliably at a maximum current of 10A and a voltage of 250V ac/dc with a frequency of 60Hz, making it suitable for use in switched mode power supplies, particularly in telecom and data communication systems.

The flange mount facilitates easy and secure installation, while the tab termination style ensures reliable electrical connections. It is designed to withstand operating temperatures from -25°C to 100°C, making it adaptable to various industrial environments.

Featuring a capacitance of 2pF and an inductance of 2mH, this EMC filter efficiently reduces electromagnetic interference. The polyurethane potting material meets the UL 94 V-0 flammability standard, providing safety and durability.

With dimensions of 26mm height, 60.6mm depth, and 64mm length, this compact filter fits well in constrained spaces. It complies with stringent UL 1283 standards, ensuring high performance and reliability.

Optimized leakage current for EMC compliance. Flange mount and tab termination for ease of installation. Wide operating temperature range from -25°C to 100°C. Low capacitance and inductance for effective filtering. Polyurethane potting meeting UL 94 V-0 safety standards.

Compact dimensions suited for telecom and data systems. UL 1283 certified for electromagnetic compatibility. Manufactured in China under high-quality control. Suitable for single-phase power line filtering applications.

This product is ideal for industrial, telecommunications, laboratory, and commercial use where electromagnetic interference suppression is critical. The flange EMC filter ensures system stability and regulatory compliance, improving equipment lifespan and operational safety.
