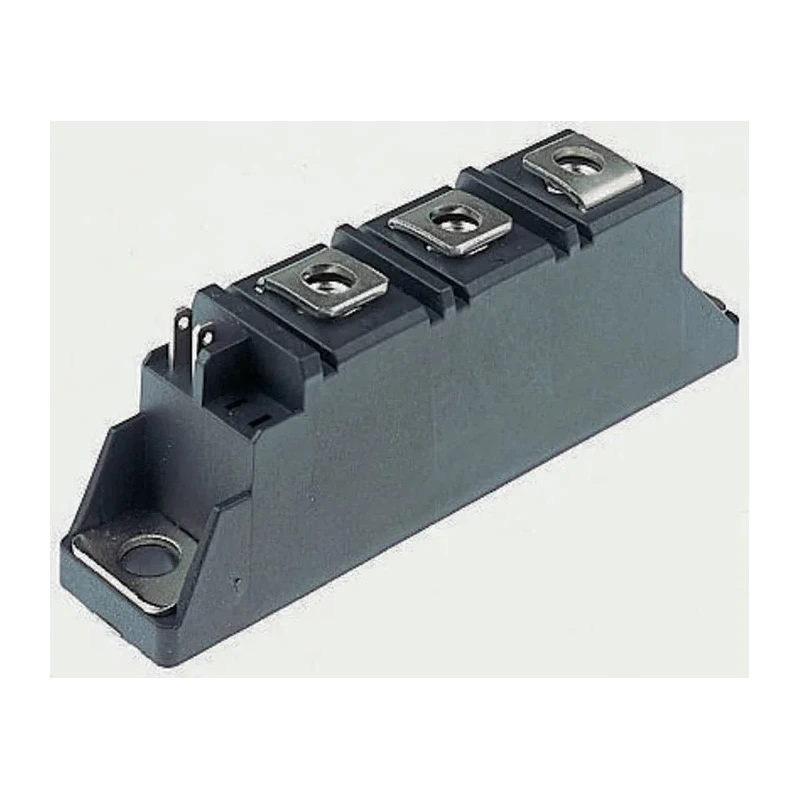

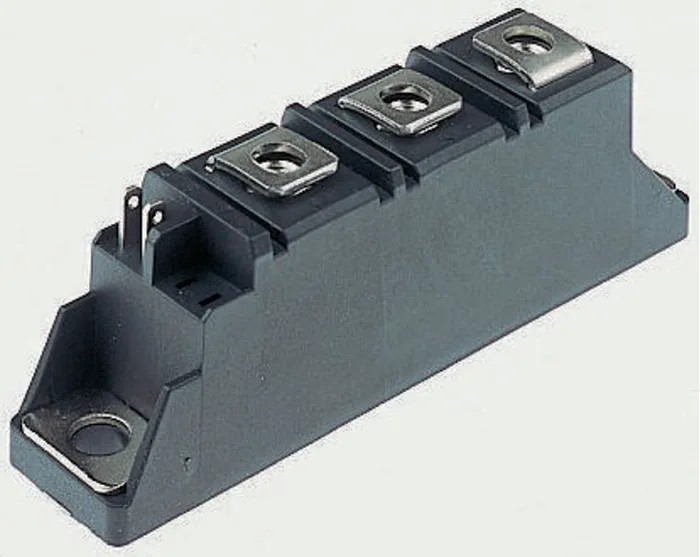

Vishay 1200 V 100 A Recovery Diode 3-Pin TO-240 VS-VSKD91/12

Vishay VS-VSKD91/12 Recovery Diode 3-Pin TO-240 is designed for industrial and power electronics applications requiring a robust, efficient rectifier. Featuring a maximum continuous forward current of 100 A and peak reverse repetitive voltage of 1200 V, it delivers high performance in demanding electrical systems. Its standard recovery rectifier type ensures balanced switching speeds and low losses suitable for various power conversion tasks.

The diode's TO-240 package facilitates easy installation on panels with a 3-pin configuration, streamlining mounting and connectivity. The device operates reliably over a temperature range from -40°C to 150°C, accommodating harsh operating environments in manufacturing, laboratory, and commercial electronics setups.

With a peak non-repetitive forward surge current of 2.1 kA and maximum forward voltage of 1.55 V, the VS-VSKD91/12 diode handles transient surges and contributes to efficient power management. Its compact dimensions of 92 mm length, 35 mm height, and 22.6 mm width support space-efficient designs. These attributes make it suitable for use in power supplies, inverters, and motor control circuits where high current rectification is necessary.

Reliable and versatile, this diode aligns with industry demands for high-efficiency semiconductors in electronics, electrical power distribution, and industrial automation. It features no automotive certifications and follows no specific standards but is designed to meet rigorous performance expectations.

This diode is a standard recovery power diode designed for high efficiency and reliability. It has a panel mount type with a TO-240 package style. The device supports a peak reverse repetitive voltage of 1200 V and maximum forward voltage of 1.55 V.

Operating temperature ranges from -40°C to 150°C making it suitable for demanding industrial environments. Peak non-repetitive forward surge current capability is 2.1 kA ensuring robustness to transient conditions. The diode configuration is series with 3 pins for easy integration into circuits.

It has compact dimensions of 92 mm length, 35 mm height, and 22.6 mm width for space-saving designs. Ideal for industrial, power electronics, and semiconductor applications requiring high current and voltage rectification.
