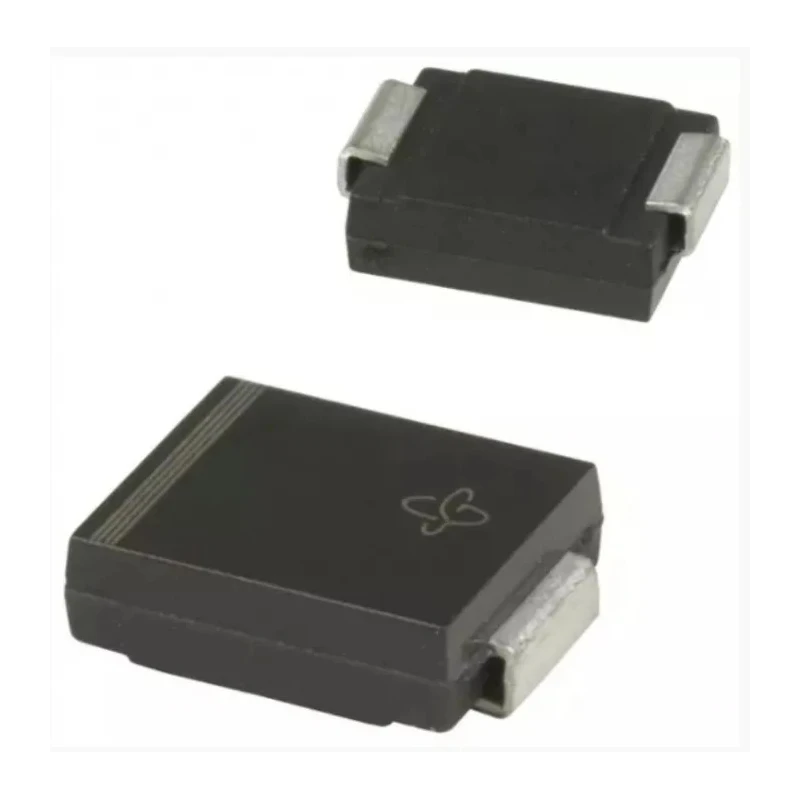

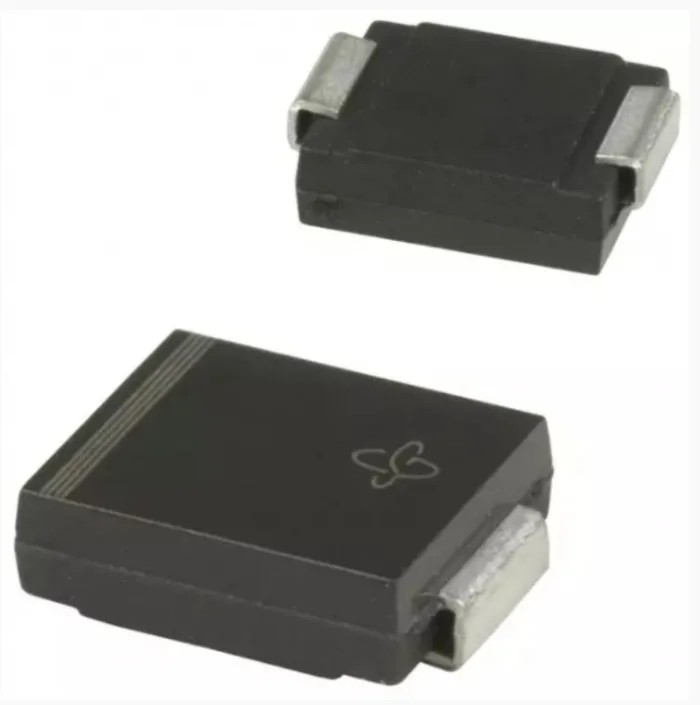

Vishay 100 V 3 A General Purpose Diode 2-Pin DO-214AB ES3B-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.22mm |
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | ES3B-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | ES3B |
| Maximum Operating Temperature | 150°C |
| Case | DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode end |
| Terminals | Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 20ns |
Key Features
- Surface mount type in DO-214AB (SMC) package ensuring compact size and ease of installation.
- Features ultrafast recovery with a peak reverse recovery time of 20 ns.
- Low forward voltage drop of 900 mV offers high efficiency and low power loss.
- Rated for peak non-repetitive forward surge current of 100 A for transient conditions.
- Operates reliably from -55°C to 150°C with AEC-Q101 automotive grade qualification.
- Constructed with glass passivated chip junction for durability and stable performance.
- Matte tin-plated leads ensure excellent solderability and corrosion resistance.
- Compact dimensions of length 7.11 mm, width and diameter of 6.22 mm, and height 2.42 mm.
Product Description
Vishay ES3B-E3/57T general purpose diode is a surface mount device designed for power rectification with high reliability and efficiency. It comes housed in a DO-214AB (SMC) compact package suitable for automated PCB assembly processes. This diode is capable of handling a maximum continuous forward current of 3 A and can withstand peak reverse voltages up to 100 V, making it ideal for signal and power rectification applications.
Equipped with a glass passivated chip junction, the diode ensures excellent durability and stability over a wide operating temperature range from -55°C to 150°C, meeting automotive standard AEC-Q101 criteria. The low forward voltage drop of 900 mV and ultrafast recovery time of 20 ns contribute to reduced switching losses and improved energy efficiency in high frequency converter and inverter circuits.
The diode supports a peak non-repetitive forward surge current of 100 A, providing robustness against transient surges typically encountered in switching power supplies and inverters. Matte tin-plated leads conforming to solderability and whisker test standards provide reliable mechanical and electrical connections.
Its compact dimensions - length 7.11 mm, width and diameter 6.22 mm, height 2.42 mm - enable dense packing on circuit boards. Polarization is clearly marked by a color band indicating the cathode end, facilitating correct installation. The moulding compound complies with UL 94 V-0 flammability rating and is RoHS compliant, supporting environmentally safe electronics manufacturing.
Typical applications include high frequency rectification, freewheeling diodes in switching mode power supplies, consumer electronics, computer power management, and telecommunications equipment.
Surface mount type with DO-214AB (SMC) package. Maximum continuous forward current of 3 A. Peak reverse voltage rating of 100 V. Ultrafast recovery time of 20 ns for switching efficiency. Reliable operation between -55°C and 150°C.
Matte tin-plated solderable leads. AEC-Q101 automotive standard qualified. RoHS and UL 94 V-0 compliant moulding compound. Color band marking for cathode polarity. Ideal for power rectification in high frequency converters and inverters.
Explore more Vishay semiconductor diodes and rectifiers with EnvMart for reliable industrial, commercial, and automotive applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 3 A.
This model has a peak reverse voltage rating of 100 V.
The diode has dimensions of 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
It operates reliably within a temperature range of -55°C to 150°C.
The diode is housed in a DO-214AB (SMC) package.
The forward voltage drop is 900 mV.
It supports a peak non-repetitive forward surge current of 100 A.
Yes, it meets the AEC-Q101 automotive standard qualification.
The peak reverse recovery time is 20 ns, contributing to its ultrafast performance.
The leads are matte tin-plated, ensuring excellent solderability and corrosion resistance.
Typical applications include high frequency rectification and freewheeling diodes in switching mode power supplies.
The moulding compound complies with UL 94 V-0 flammability rating and is RoHS compliant.
