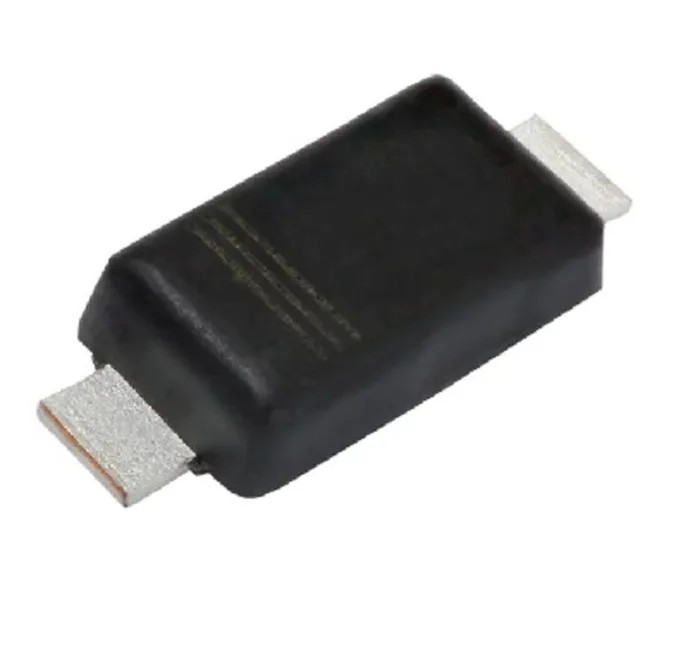

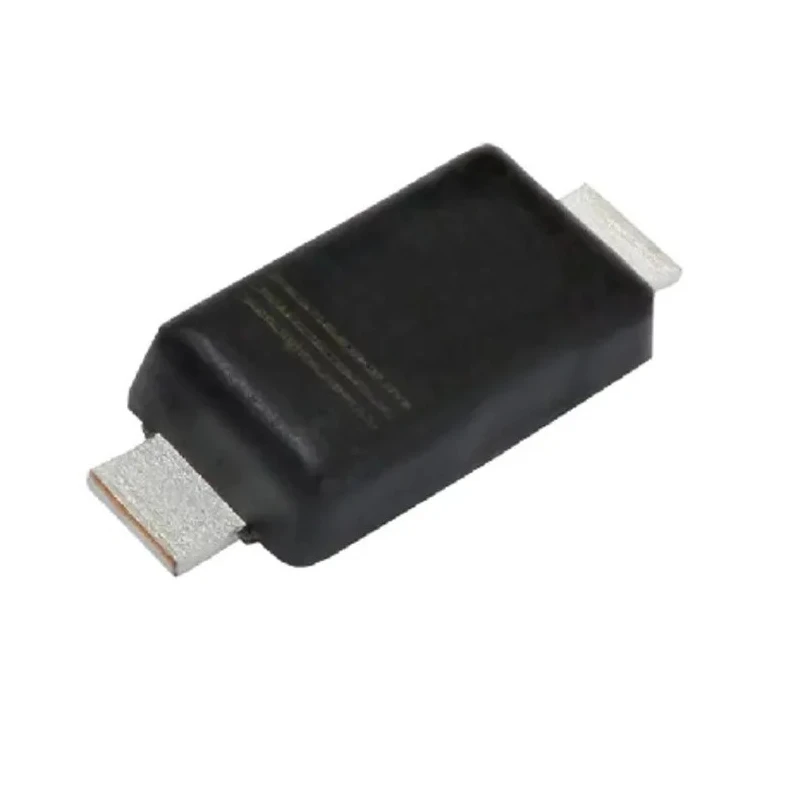

Vishay 200 V 1.2 A Switching Diode Single 2-Pin Surface Mount DO-219AB ES07D-GS08
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.83mm |
| Length | 2.9mm |
| Model | ES07D-GS08 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | ES07D |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Designed for ultrafast recovery and switching applications.
- Maximum continuous forward current of 1.2 amperes.
- Peak reverse repetitive voltage of 200 volts.
- Low forward voltage drop of 980 millivolts.
- Peak reverse recovery time of 25 nanoseconds.
- Operates reliably from -55°C up to 150°C.
- Ideal for high frequency switched mode power supplies and inverters.
- Package type and mount type suitable for surface mounting.
Product Description
The Vishay ES07D-GS08 is a switching diode designed for high-speed and ultrafast recovery applications. It is a single diode component housed in a compact DO-219AB surface mount package constructed for reliable and efficient operation at voltages up to 200 V and currents up to 1.2 A.
With a low forward voltage drop of 980 mV, this diode minimizes power losses, making it ideal for use in switched mode power supplies (SMPS), inverters, and freewheeling circuits that demand rapid switching and minimal signal distortion.
The diode features a peak reverse recovery time of just 25 nanoseconds, supporting high frequency circuit operations while efficiently managing switching losses. It withstands peak reverse repetitive voltages of 200 V and peak surge currents of up to 30 A, ensuring robustness under demanding electrical conditions.
The product operates reliably over a broad temperature range from -55°C to 150°C and complies with the automotive AEC-Q101 standard, making it suitable for automotive and industrial electronic systems where temperature resilience is critical.
Its compact dimensions - length 2.9 mm, width 1.9 mm, and height 0.83 mm - allow for efficient PCB space management in dense electronic assemblies. Ultrafast recovery switching diode suitable for high frequency applications.
Surface mount DO-219AB package facilitates automated assembly. Rated continuous forward current: 1.2 A for stable operation. Peak reverse voltage: 200 V for voltage surge tolerance. Low forward voltage drop reduces power dissipation.
Quick recovery time of 25 ns minimizes switching losses. Wide operating temperature suitablity from -55°C to 150°C. Compliance with automotive AEC-Q101 standard for reliability. Compact package assists in high-density circuit designs.
Ideal for switched mode power supplies, inverters, and freewheeling applications. This switching diode is an essential component in power management, signal switching, and protection circuits across industrial, automotive, and consumer electronics sectors.
Explore more Vishay semiconductor components and related products at EnvMart for reliable and high-performance electronic parts.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1.2 A.
The peak reverse repetitive voltage rating is 200 V.
The forward voltage drop is 980 mV.
The peak reverse recovery time is 25 nanoseconds.
This model operates reliably from -55°C to 150°C.
The diode is housed in a DO-219AB package type and is suitable for surface mounting.
This diode complies with the automotive AEC-Q101 standard.
The dimensions are 2.9 mm in length, 1.9 mm in width, and 0.83 mm in height.
The peak non-repetitive forward surge current is 30 A.
This model is classified as a switching diode.
This diode is suitable for high-frequency switched mode power supplies, inverters, and freewheeling circuits.
The peak reverse current rating is 10 μA.
