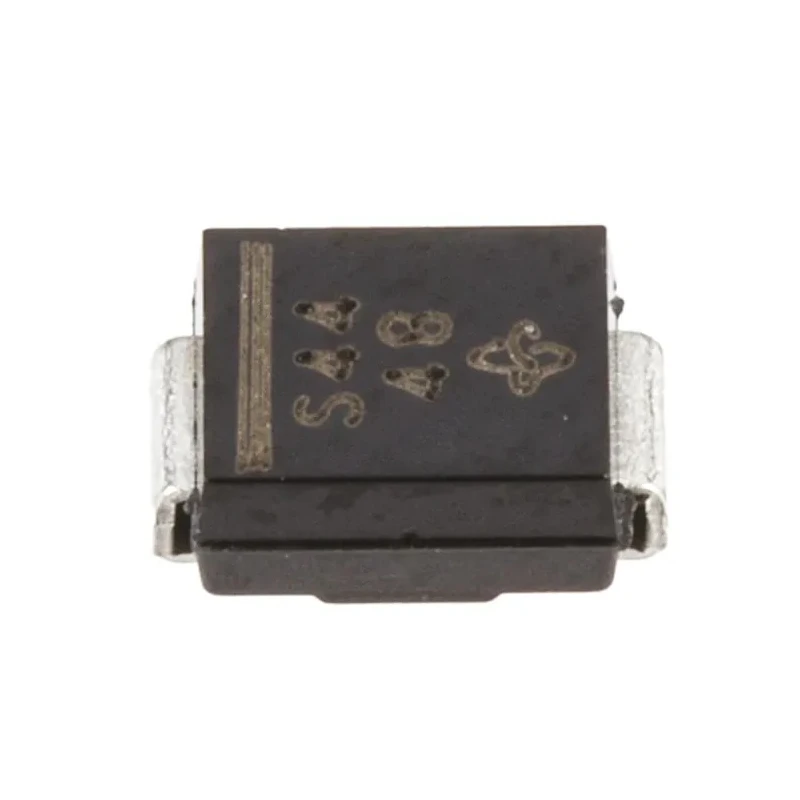

Vishay 40 V 4 A Surface Mount Schottky Diode 2-Pin DO-214AA SSB44-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | SSB44-E3/52T |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | SSB44 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 490mV |
| Peak Reverse Recovery Time trr | 10ns |
Key Features
- Surface mount package type DO-214AA ensures compact footprint.
- Low forward voltage drop of 490 mV reduces power loss.
- Fast switching Schottky rectifier with 10 ns peak reverse recovery time.
- Operates reliably from -65°C up to 150°C maximum temperature.
- Single diode configuration with 2-pin count for efficient circuit design.
- Peak non-repetitive forward surge current rating of 100 A supports transient demands.
- Peak reverse current of 400 μA minimizes leakage.
- Compact dimensions of 4.7 mm length and 3.8 mm width for space-constrained applications.
Product Description
Vishay SSB44-E3/52T is a high performance Schottky Diode designed for surface mount applications requiring efficient switching and low power dissipation. This 2-pin diode housed in a DO-214AA package offers a maximum continuous forward current of 4 A and can handle peak reverse voltages up to 40 V, making it suitable for power supply circuits, voltage clamping, and rectification in electronic devices.
The diode features a low forward voltage of 490 mV, reducing wasted energy and heat while enabling improved circuit efficiency. With a fast reverse recovery time of just 10 ns, the diode optimizes switching speed and minimizes switching losses, an essential factor in high frequency and switched-mode power supply designs.
It is engineered to operate over a wide temperature range, from -65°C to 150°C maximum, ensuring reliability in harsh industrial, automotive, and consumer electronics environments. The single diode configuration and compact dimensions (4.7 mm by 3.8 mm) enable flexible PCB layouts and efficient use of board space.
This model also withstands peak non-repetitive surge currents of 100 A, providing robustness against transient conditions common in power circuits. Leakage currents are minimized with a peak reverse current of 400 μA, enhancing overall system performance and stability.
Vishay’s Schottky rectifiers are widely used in industrial power supplies, telecommunications, automotive electronics, and consumer electronic devices due to their fast switching and low power loss characteristics.
Surface mount DO-214AA package for compact installation. 40 V repetitive peak reverse voltage rating ensuring device safety. 4 A maximum continuous forward current for steady load handling. Low forward voltage drop to minimize power dissipation.
Fast switching capabilities with 10 ns recovery time. Wide operating temperature tolerance for diverse environments. Supports high surge currents up to 100 A peak. Efficient single diode design with 2 pins. Explore more semiconductor and diode solutions for power electronics on EnvMart to meet your project’s specifications and quality requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 4 A.
This diode has a peak reverse repetitive voltage rating of 40 V.
The forward voltage drop is 490 mV, which helps reduce power loss.
It can handle a peak non-repetitive forward surge current of 100 A.
The dimensions are 4.7 mm in length and 3.8 mm in width.
It operates reliably within a temperature range of -65°C to 150°C.
The peak reverse current is 400 μA, which minimizes leakage.
This diode is housed in a surface mount DO-214AA package.
The reverse recovery time is 10 ns, optimizing switching speed.
It features a single diode configuration with 2 pins.
It is suitable for power supply circuits, voltage clamping, and rectification in electronic devices.
