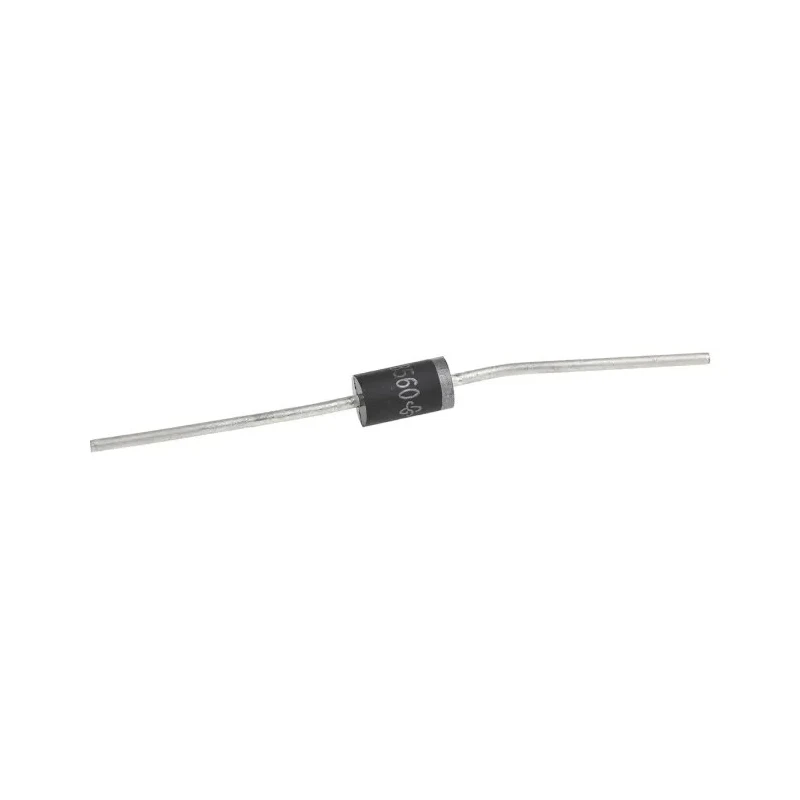

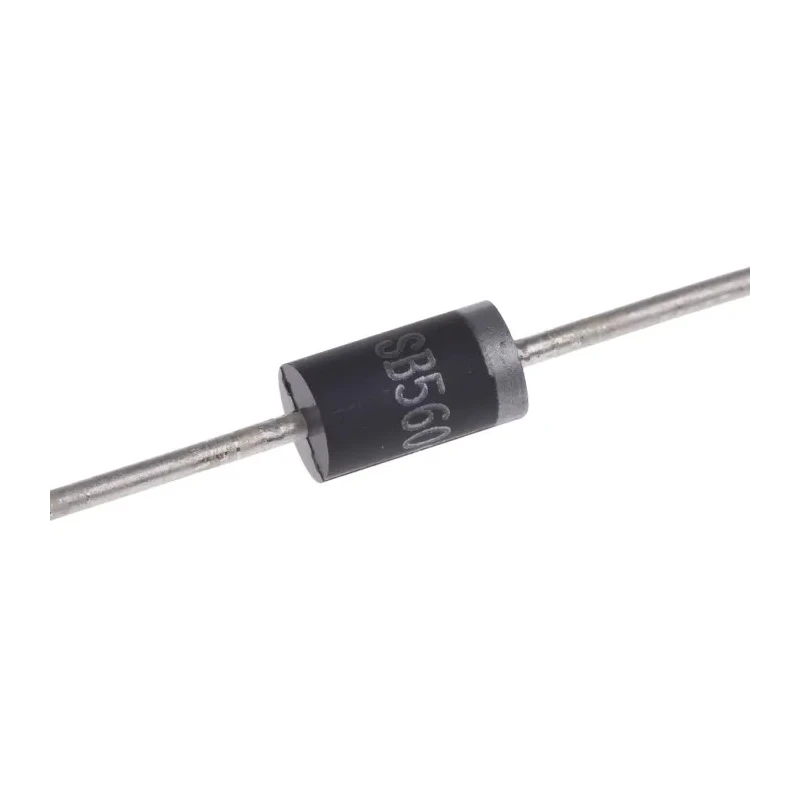

Vishay 60 V 5 A Schottky Diode 2-Pin DO-201AD SB560-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.8mm |
| Length | 10mm |
| Model | SB560-E3/54 |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | SB560 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.7V |
| Lite-On 60V 5A, Schottky Diode, 2-Pin DO-201AD SB560Brand | Lite-On |
Key Features
- Maximum Continuous Forward Current of 5A for reliable operation.
- Peak Reverse Repetitive Voltage of 60V suitable for various electronic circuits.
- Low Maximum Forward Voltage of 0.7V enhances energy efficiency.
- Peak Non-Repetitive Forward Surge Current of 220A for high surge tolerance.
- Operation temperature range from -65°C to 150°C for durability in extreme environments.
- Compact DO-201AD package with 2 pins for through-hole mounting.
- Schottky diode configuration with fast switching speed and low forward voltage drop.
- Peak Reverse Current limited to 500μA minimizing leakage current.
Product Description
Vishay SB560-E3/54 Schottky Diode 2-Pin DO-201AD is a high-performance semiconductor diode designed for fast switching and low power loss applications. It features a maximum continuous forward current of 5 amperes and a peak reverse repetitive voltage rating of 60 volts, making it ideal for power rectification and other switching circuits.
This diode exhibits a low forward voltage drop of 0.7 volts and a high surge current capability of 220 amperes peak non-repetitive forward surge current, ensuring robust performance under transient conditions. Its operational temperature range from -65°C to 150°C supports use in demanding industrial environments.
The compact DO-201AD through-hole package provides convenient mounting with 2 pins, enabling compatibility with various PCB designs. The device's physical dimensions include a length of 10 mm, diameter of 5.3 mm, width of 5.8 mm, and height of 5.8 mm.
Its low peak reverse current of 500 microamperes reduces leakage currents, which is critical in sensitive electronic applications. Vishay's SB560 series Schottky rectifiers are well-suited for applications requiring fast switching speeds and high efficiency, including power supply circuits, voltage clamping, and freewheeling diode applications in industrial, manufacturing, automotive (non-automotive standard device), and general electronic equipment.
Maximum Continuous Forward Current of 5A for reliable operation. Peak Reverse Repetitive Voltage of 60V suitable for various electronic circuits. Low Maximum Forward Voltage of 0.7V enhances energy efficiency. Peak Non-Repetitive Forward Surge Current of 220A for high surge tolerance.
Operation temperature range from -65°C to 150°C for durability in extreme environments. Compact DO-201AD package with 2 pins for through-hole mounting. Physical dimensions: Length 10mm, Diameter 5.3mm, Width 5.8mm, Height 5.8mm.
Schottky diode configuration with fast switching speed and low forward voltage drop. Peak Reverse Current limited to 500μA minimizing leakage current. Non-automotive standard component designed for industrial electronic use.
Explore Vishay products and similar Schottky Diodes & Rectifiers in EnvMart's extensive electronics catalog for precise component selection.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay SB560-E3/54 Schottky diode is 5A.
This model has a peak reverse repetitive voltage rating of 60V, making it suitable for various electronic circuits.
The maximum forward voltage drop for this diode is 0.7V, which enhances energy efficiency in applications.
The peak non-repetitive forward surge current of this unit is 220A, providing high surge tolerance.
It operates within a temperature range from -65°C to 150°C, making it suitable for demanding environments.
The Vishay SB560-E3/54 is packaged in a compact DO-201AD format, designed for through-hole mounting.
The dimensions of this model are: length 10mm, diameter 5.3mm, width 5.8mm, and height 5.8mm.
The peak reverse current is limited to 500μA, which minimizes leakage current in sensitive applications.
This model features a single Schottky diode configuration, known for fast switching speeds and low power loss.
It is suitable for applications in industrial, manufacturing, automotive (non-automotive standard device), and general electronic equipment.
The Vishay SB560-E3/54 diode is manufactured in India.
This diode is designed for through-hole mounting, making it compatible with various PCB designs.
