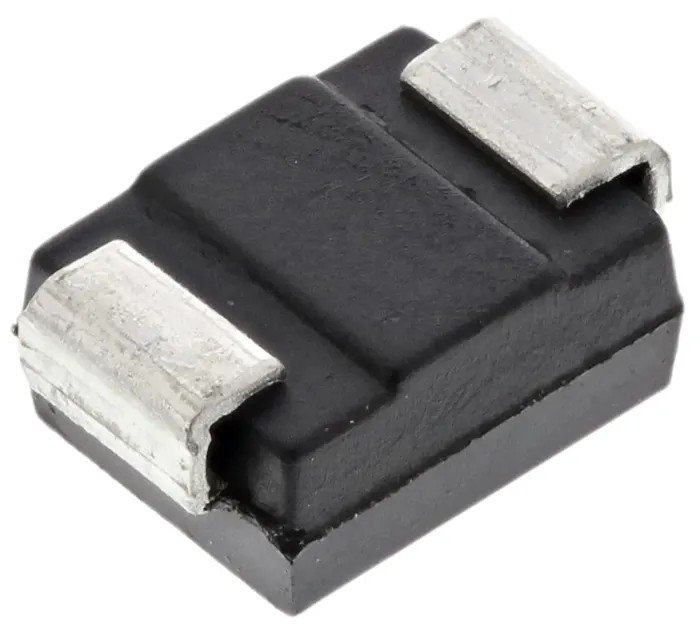

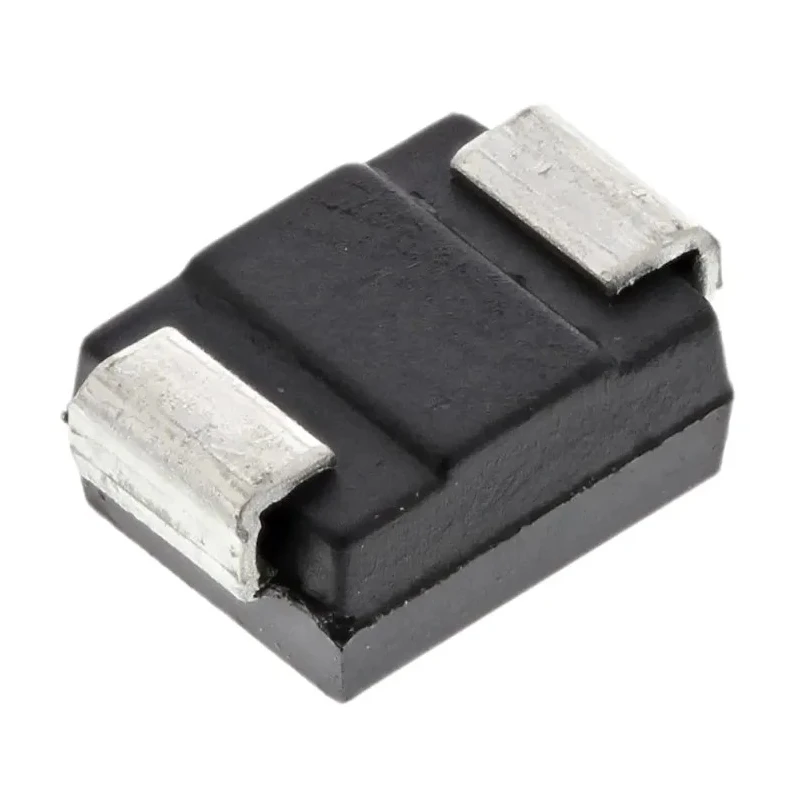

Vishay 60 V 2 A Schottky Diode, 2-Pin DO-214AA SS26-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | SS26-E3/52T |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | SS26 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.7V |
Key Features
- This device features a maximum continuous forward current of 2 A.
- It has a peak reverse repetitive voltage rating of 60 V.
- The diode configuration is single with 2 pins in a surface mount package.
- Peak non-repetitive forward surge current is rated at 75 A.
- The maximum forward voltage drop is 0.7 V.
- The peak reverse leakage current is 400 microamperes.
- Operating temperature ranges from −65°C up to 150°C.
- The diode measures 4.7 mm in length and 3.8 mm in width.
Product Description
Vishay SS26-E3/52T Schottky Diode is a high-performance discrete semiconductor designed for low forward voltage drop and very fast switching speed. This 2-pin DO-214AA surface mount diode offers efficient rectification in power supply, automotive electronics, and industrial applications requiring quick recovery and minimal power loss.
This Schottky rectifier withstands a maximum continuous forward current of 2 A and supports a peak reverse repetitive voltage up to 60 V, ensuring robustness in demanding environments. With a low forward voltage drop of 0.7 V and a peak reverse leakage current of only 400 microamperes, it delivers high efficiency and low heat generation.
The device has a peak non-repetitive forward surge current rating of 75 A, suitable for transient load conditions. Operating temperature range extends from −65°C to 150°C, making it reliable for harsh industrial and automotive conditions. The compact dimensions of 4.7 mm length and 3.8 mm width allow for flexible PCB placement and integration.
This diode series is ideal for use in electronic power supplies, DC-DC converters, polarity protection circuits, and solar power inverters where efficient and reliable rectification is critical. Its fast switching characteristics make it especially suitable for applications requiring minimized switching losses.
This Schottky diode has a 2 A continuous current rating. Maximum reverse voltage rating of 60 V protects against voltage spikes. Surface mount DO-214AA package enhances assembly efficiency. Peak forward surge current capacity of 75 A handles transient conditions.
Wide operating temperature range from −65°C to 150°C. Low maximum forward voltage drop of 0.7 V reduces power dissipation. Compact size with 4.7 mm length and 3.8 mm width. Suitable for industrial, automotive, and power electronics applications.
Explore more semiconductor components and efficient diode solutions in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 2 A.
It has a peak reverse repetitive voltage rating of 60 V.
This diode measures 4.7 mm in length and 3.8 mm in width.
The peak non-repetitive forward surge current is rated at 75 A.
The maximum forward voltage drop is 0.7 V.
The peak reverse leakage current is 400 microamperes.
The operating temperature range extends from −65°C to 150°C.
This diode comes in a surface mount package type DO-214AA.
The diode configuration is single with 2 pins.
This Schottky diode is suitable for applications like electronic power supplies, DC-DC converters, and polarity protection circuits.
This diode belongs to the SS26 series.
This diode is classified as a Schottky rectifier.
