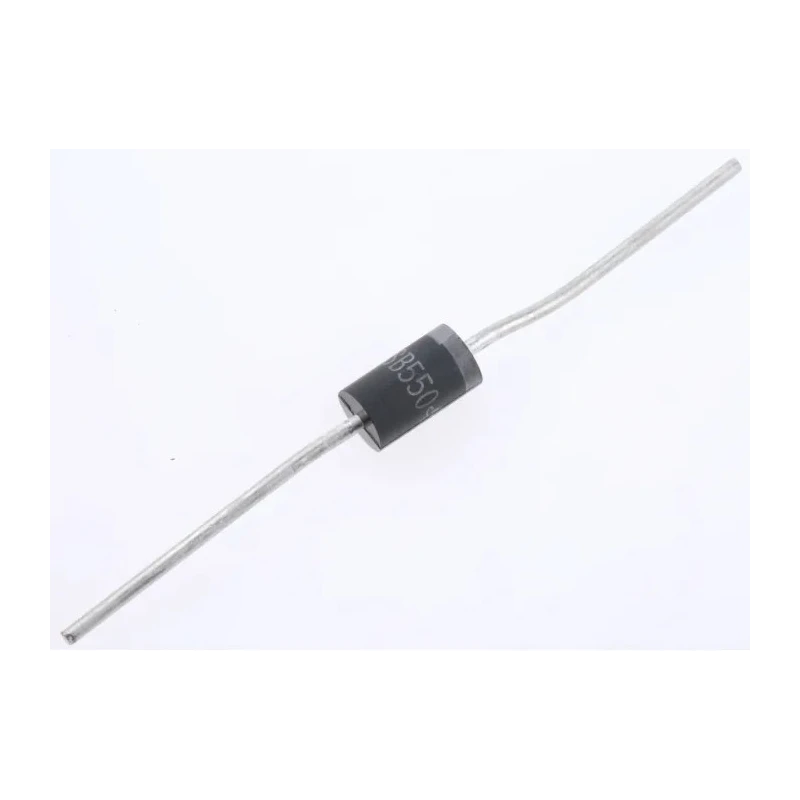

Vishay 50 V 5 A Schottky Diode 2-Pin Through Hole DO-201AD SB550-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.8mm |
| Length | 10mm |
| Model | SB550-E3/54 |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | SB550 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.7V |
Key Features
- High-performance Schottky rectifier suitable for fast switching applications.
- Maximum continuous forward current of 5 A ensures reliable operation.
- Peak reverse repetitive voltage of 50 V for robust voltage handling.
- Maximum forward voltage drop is 0.7 V to reduce power loss.
- Wide operating temperature range from -65°C to 150°C supports harsh environments.
- Compact dimensions with length 10 mm, diameter 5.3 mm, and width/height 5.8 mm.
- Peak non-repetitive forward surge current rating of 220 A provides durability in surge conditions.
- Single diode configuration with 2-pin mount type through hole for easy PCB integration.
Product Description
Vishay SB550-E3/54 Schottky Diode is a high-quality semiconductor diode designed for efficient rectification with very low forward voltage drop and fast switching action. It features a 2-pin through-hole mount in a DO-201AD package, providing ease of installation in various electronic assemblies. With a peak reverse voltage rating of 50 V and continuous forward current of 5 A, this Schottky diode is ideal for power management and conversion circuits.
Its compact size, including a length of 10 mm and diameter of 5.3 mm, makes it suitable for space-constrained applications. The diode supports a broad operating temperature range from -65°C up to 150°C, enabling reliability in diverse industrial and laboratory conditions. The maximum forward voltage of 0.7 V improves energy efficiency with reduced conduction losses.
Rated for a peak non-repetitive forward surge current of 220 A, the diode withstands transient power surges, enhancing durability in demanding environments. Its low peak reverse current of 500 μA reduces leakage currents, making it efficient for power-sensitive designs. The single diode configuration simplifies circuit design in power supplies, rectifiers, and switching circuits.
This Vishay Schottky rectifier is widely used in industrial electronics, power supplies, motor controls, and power conversion systems where fast recovery and low power dissipation are critical. It complies with RoHS standards and is supplied as a tape for efficiency in automated insertion processes.
High-performance Schottky rectifier for fast switching and low power loss. Maximum continuous forward current of 5 A ensures dependable performance. Peak reverse voltage of 50 V protects sensitive circuits. Forward voltage drop of 0.7 V reduces heat generation.
Wide temperature range supports industrial environments. Compact DO-201AD package suitable for through-hole mounting. Capable of handling surge currents up to 220 A. Low leakage current with peak reverse current of 500 μA.
Single diode, 2-pin configuration for easy PCB integration. Ideal for power supply, rectification, and fast switching applications. Explore the vast range of Vishay semiconductors at EnvMart for reliable electronic components suited to industrial and commercial uses.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 5 A, ensuring reliable operation in various applications.
This model has a peak reverse repetitive voltage rating of 50 V, which protects sensitive circuits from voltage spikes.
The maximum forward voltage drop is 0.7 V, which helps to reduce power loss during operation.
The diode has a length of 10 mm, a diameter of 5.3 mm, and a height of 5.8 mm, making it compact for various applications.
It operates within a wide temperature range from -65°C to 150°C, suitable for harsh environments.
The peak non-repetitive forward surge current rating is 220 A, providing durability during transient conditions.
This model features a 2-pin through-hole mount type, facilitating easy integration into printed circuit boards (PCBs).
The peak reverse current is rated at 500 μA, which helps to minimize leakage currents in power-sensitive designs.
It is widely used in industrial electronics, power supplies, motor controls, and power conversion systems where fast recovery and low power dissipation are critical.
The diode comes in a DO-201AD package type, which is compact and suitable for through-hole mounting.
This diode belongs to the SB550 series, which is known for its high-performance Schottky rectifiers.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
