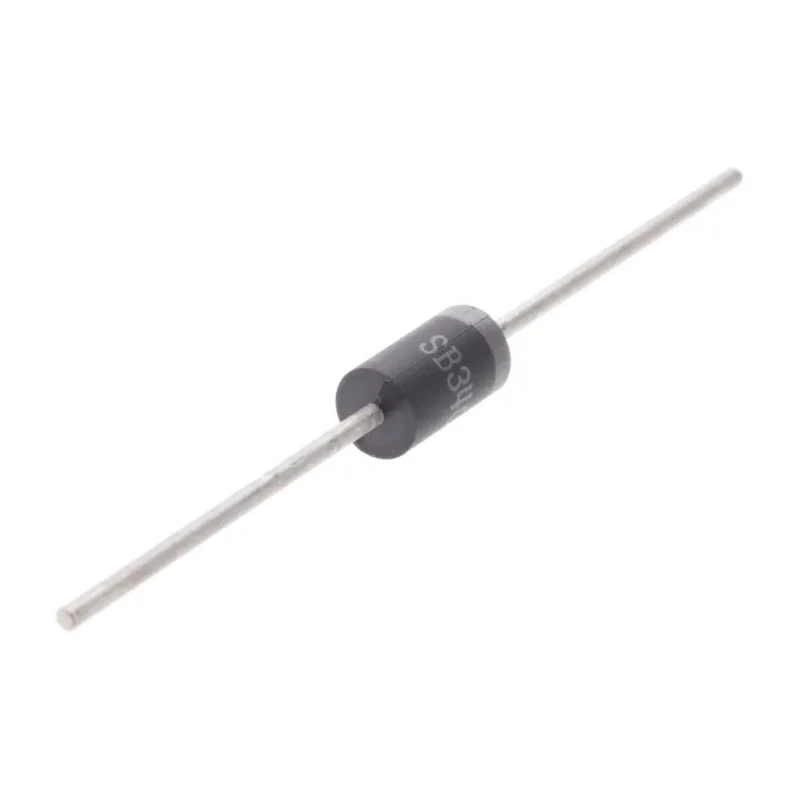

Vishay 40 V 3 A Schottky Diode 2-Pin Through Hole Package DO-201AD SB340-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.8mm |
| Length | 10mm |
| Model | SB340-E3/54 |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | SB340 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 0.68V |
Key Features
- The device has a maximum continuous forward current of 3 A suitable for power switching applications.
- Peak reverse repetitive voltage is rated at 40 V for reliable reverse voltage handling.
- Forward voltage drop is low at 0.68 V, enhancing efficiency.
- Operating temperature range extends from -65°C to 125°C for robust industrial use.
- Compact package type DO-201AD allows through-hole mounting ease.
- Peak non-repetitive surge forward current of 120 A supports transient overloads.
- The diode features fast switching and low reverse recovery time for reduced power loss.
- 2-pin single diode configuration simplifies circuit design and replacement.
Product Description
Vishay SB340-E3/54 is a high-performance Schottky diode designed for industrial and electronic component applications requiring fast switching and low power losses. This diode supports a maximum continuous forward current of 3 A and can withstand a peak reverse repetitive voltage of 40 V. It comes in a compact DO-201AD through-hole package with dimensions approximately 10 mm in length and 5.8 mm in width and height, fitting various PCB mounting needs.
The device boasts a very low forward voltage drop of 0.68 V, contributing to energy efficiency in power rectification circuits. Its fast switching capability and very short reverse recovery time make it ideal for power supply, manufacturing, and automation systems. The diode can operate reliably within a temperature range from -65°C to 125°C, ensuring durability in harsh environments.
The SB340 series from Vishay includes features such as a peak non-repetitive forward surge current of 120 A, which safeguards the circuit from transient spikes. This 2-pin single diode offers ease of integration in electronic assemblies requiring Schottky rectifiers.
The device supports a maximum continuous forward current of 3 A. Peak reverse repetitive voltage rating of 40 V ensures circuit protection. Low forward voltage drop of 0.68 V reduces power dissipation. Wide operating temperature range from -65°C to 125°C.
Compact DO-201AD package suitable for through-hole mount. Fast switching minimizes power loss in high frequency circuits. High surge current tolerance for transient protection. Single diode, 2-pin design simplifies PCB implementation.
This Schottky diode is applicable in industrial electronics, power supplies, and semiconductor manufacturing, offering reliability and efficiency. Explore additional Vishay semiconductor products and related Schottky diode ranges for advanced electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
