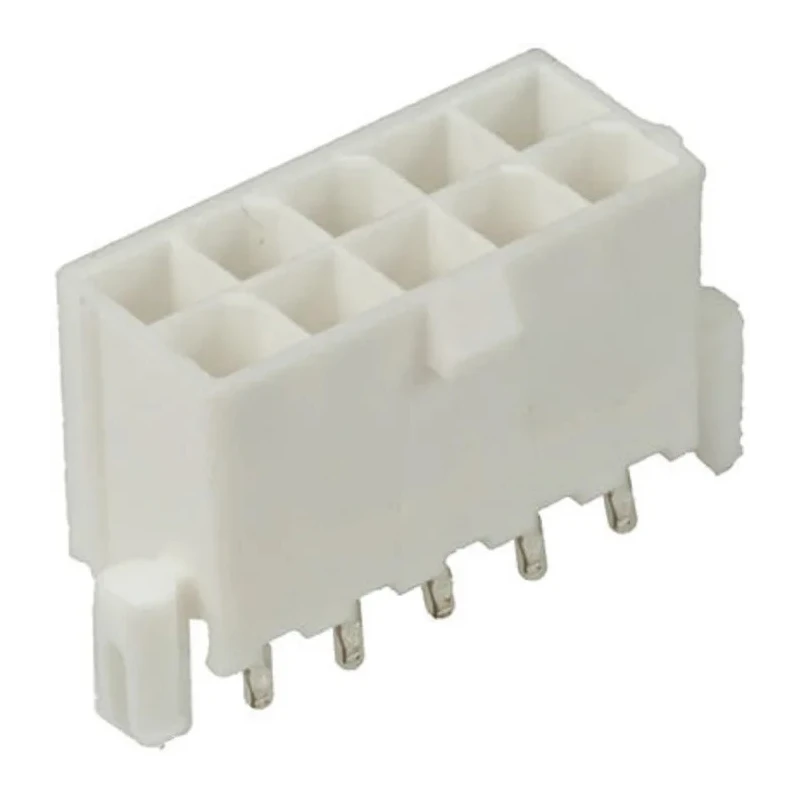

Molex Mini-Fit Plus Series Straight Through Hole PCB Header, 8 Contact, 4.2 mm Pitch, 2 Row, Shrouded 46015-0803

Molex 46015-0803 Mini-Fit Plus Series Straight Through Hole PCB Header is engineered for high current and reliable wire-to-board electrical connections. This connector includes 8 male contacts arranged in 2 rows with a 4.2 mm pitch, ideal for densely packed PCB layouts requiring robust engagement.

The header features a shrouded design protecting the contacts from accidental short circuits and mechanical damage. Its nylon housing material enhances durability while allowing for stable and secure mounting onto printed circuit boards using through-hole soldering technology.

Designed with copper alloy contacts plated in tin, the connector ensures excellent electrical conductivity and resistance to corrosion, supporting currents up to 12A and voltages reaching 600V. It maintains stable operation in extreme temperature ranges from -40°C up to 105°C, making it suitable for industrial, commercial, and electronic manufacturing environments.

This model mates with 5557 Series receptacle housings and includes snap-in PCB location pegs for precise placement during assembly. Manufactured in Mexico, this component complies with manufacturing quality standards for new condition parts.

The PCB header features a shrouded design for enhanced protection. Constructed with a nylon housing material ensuring durability. Supports a current rating of 12A, suitable for high current applications. Includes 8 male copper alloy contacts plated with tin for optimal conductivity.

Designed with a 4.2 mm pitch between contacts across 2 rows. Supports through-hole mounting for strong soldered connections. Operates safely within a temperature range from -40°C to 105°C. Rated for voltage up to 600V ensuring robust performance.

Manufactured in Mexico under new condition standards.

This Molex Mini-Fit Plus PCB Header is widely used in electronics assembly, industrial controls, and power connections for compact and reliable wiring solutions. Browse more PCB Headers and connectors at EnvMart for comprehensive sourcing options.
