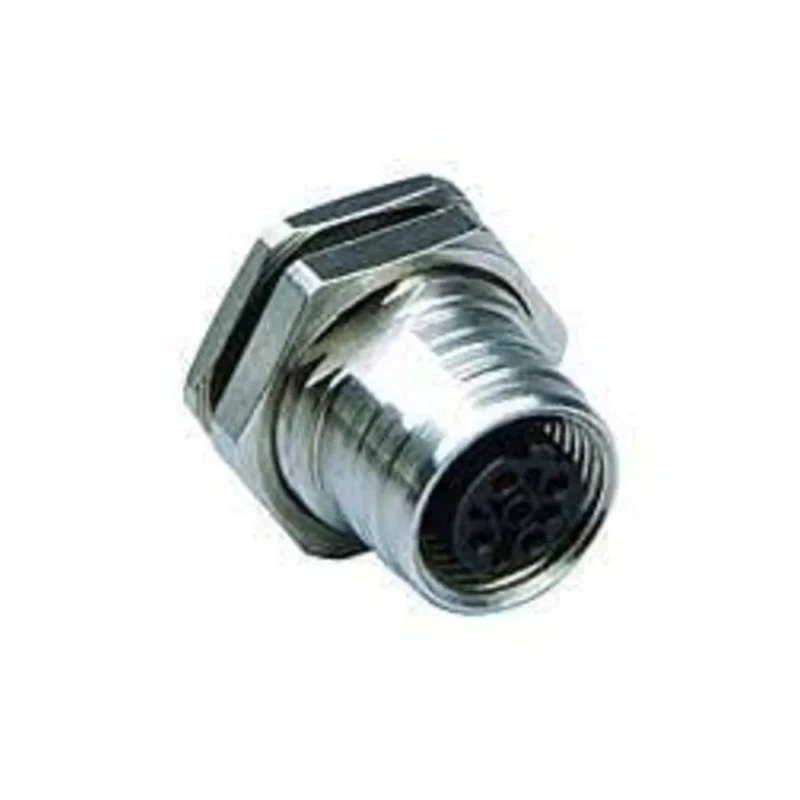

Brad from Molex Circular Connector Panel Mount Socket Female 4 Contacts M12 250V, 4A, IP69K Ultra-Lock Series 1200845189

Brad from Molex 1200845189 is a high-quality circular connector designed for demanding industrial, automation, and electronic applications. It features a panel mount, socket female connector with 4 contacts that provide 250V and 4A rating. The M12 connector size with internal thread ensures a secure and reliable connection within the Ultra-Lock series, known for robust locking mechanisms.

The connector housing is made of brass with nickel plated brass contacts offering excellent mechanical strength and corrosion resistance. Its IP69K ingress protection rating certifies resistance against dust and high-pressure, high-temperature water jets, making it suitable for harsh industrial environments including manufacturing plants, machinery controls, and outdoor equipment.

Operating temperature ranges from -25°C to 90°C, covering a wide array of conditions for electrical connectors. The termination is wire type fitted with 0.34 mm² PVC leads, and the assembly length is 0.30 meters, providing flexibility in wiring and installation.

This model conforms to CSA LR6837 standards, and complies with EU directives including RoHS and REACH SVHC, ensuring environmentally responsible manufacturing. Its female socket design with straight orientation and panel mount ensures compatibility and ease of integration with existing equipment.

Ideal for electrical power and signal connections in industrial, automation, machinery, and manufacturing contexts, the Ultra-Lock series ensures secure connections that resist vibration and mechanical stress.

The connector is designed for panel mounting with a straight orientation. It uses an internal thread mating type with an M12 connector size. The operating voltage rating is 250 volts and current rating is 4 amps. The housing is made of brass with nickel plated brass contacts for enhanced durability.

This product operates reliably between -25°C and 90°C. The cable termination type is wire with 0.34 mm² PVC leads and 0.30 m cable length. It meets CSA LR6837 standards and is RoHS, REACH SVHC, and Low-Halogen compliant.

The IP69K rating ensures protection against high temperature, high pressure water jets and dust ingress. Manufactured in Poland, this connector belongs to the Ultra-Lock series for secure connections. Explore the full range of Industrial Circular Connectors and accessories at EnvMart to find compatible components for your system requirements.
