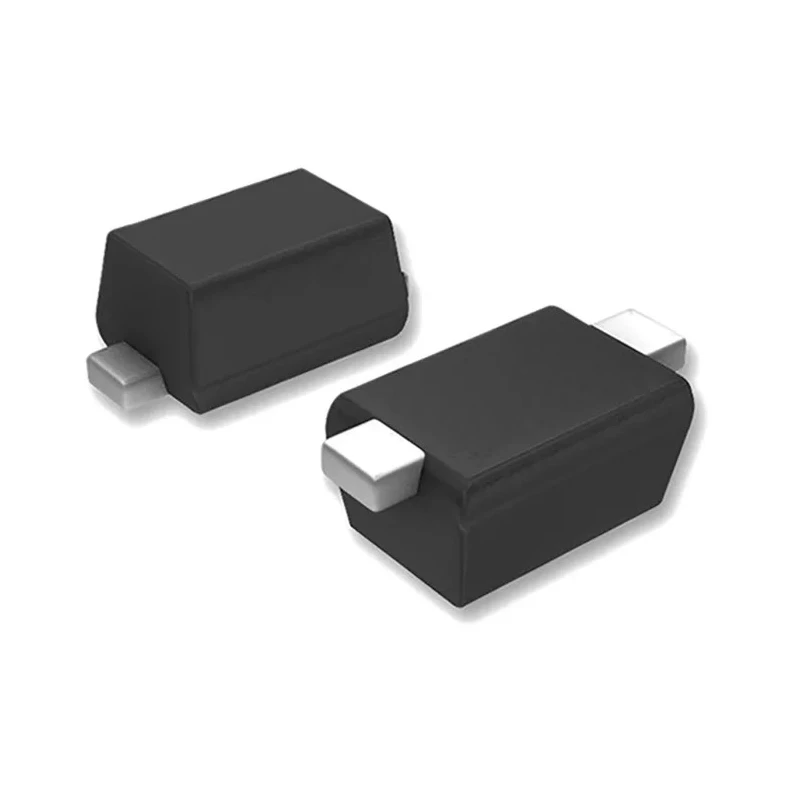

onsemi Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package BAT54XV2T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package BAT54XV2T1G

Name: onsemi Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package BAT54XV2T1G
Brand: onsemi
SKU: 212560
Price: 0.03 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	0.6mm
Length	1.2mm
Model	BAT54XV2T1G
Width	0.8mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	SOD-523
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Peak Reverse Recovery Time trr	5ns

Key Features

Features a maximum continuous forward current of 200 mA suitable for low power applications.
Has a peak reverse repetitive voltage rating of 30 V for reliable operation.
Compact SOD-523 surface mount package with dimensions 1.2 mm length, 0.8 mm width, and 0.6 mm height.
Peak non-repetitive forward surge current of 600 mA supports transient loads.
Operates reliably from -55°C up to a maximum of 125°C ambient temperature range.
Low leakage current with peak reverse current rated at 2 microamperes.
Fast switching with a peak reverse recovery time of only 5 nanoseconds.
Epoxy moulded, lightweight with only 11.7 mg package weight designed for automated assembly.

Product Description

onsemi BAT54XV2T1G is a Single Schottky diode packaged in a compact SOD-523 surface mount package supporting 30 V peak reverse voltage and 200 mA continuous forward current. It features a barrier metal technology minimizing forward voltage drop and reverse leakage, optimized for high-frequency switching and rectification applications.

This diode is ideal for a variety of industrial, consumer electronics, and automotive use cases requiring efficient polarity protection and freewheeling diodes in compact form factors. The device reliably operates in harsh thermal conditions from -55°C up to 125°C ensuring stability across diverse environments.

The BAT54XV2T1G offers a fast peak reverse recovery time of 5 ns and a peak surge current rating of 600 mA enabling it to withstand transient surges without damage. Its 2-pin SOD-523 package with a minimal size of 1.2 mm by 0.8 mm by 0.6 mm and light weight of 11.7 mg is designed for optimal automated board assembly and space-saving circuit layouts.

Maximum continuous forward current: 200 mA. Peak reverse repetitive voltage: 30 V. Epoxy moulded case for environmental protection. Low forward voltage drop and leakage current for efficient power management. Lead-free manufacturing for RoHS compliance.

Suitable for high-frequency switching and rectifier applications. Operating temperature range: -55°C to +125°C. Peak forward surge current: 600 mA. Designed for automated surface mounting assembly processes. Lightweight and compact for space constrained electronics designs.

This onsemi diode is a reliable semiconductor component for engineers and manufacturers focusing on industrial power electronics, consumer devices, and automotive electronics. Browse our selection of Schottky Diodes and rectifiers at EnvMart for high quality, performance, and competitive pricing.
