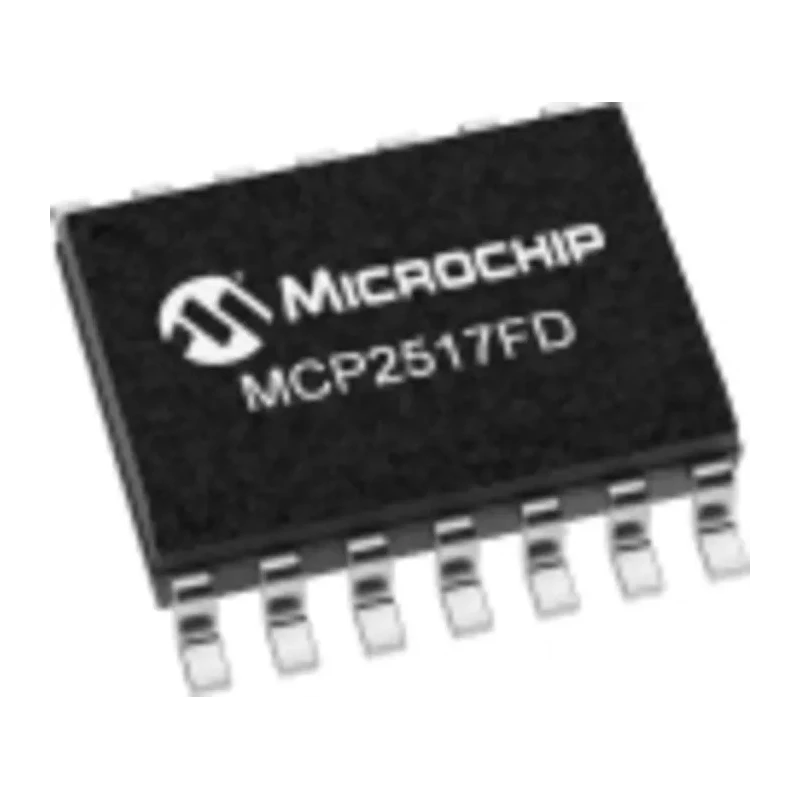

Microchip CAN Controller MCP2517FD-H/SL, 8 Mbps, 14-Pin SOIC, External CAN FD Controller MCP2517FD-H/SL
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Temperature range | -40C to +150C |
| Length | 8.65mm |
| Model | MCP2517FD-H/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP2517FD-H/SL |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Sub Type | CAN Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | CAN FD |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 20mA |
| Maximum Data Rate | 8Mbps |
| Number of Transceivers | 1 |
| Packages | VDFN14 (Wettable Flanks), SOIC14 |
| Active Current Max | 12mA @ 5.5V, 40 MHz CAN Clock |
| Sleep Current | 10uA, Typical |
| VDD | 2.7V-5.5V |
Key Features
- Supports Classical CAN 2.0B and CAN Flexible Data Rate (CAN FD) frame formats.
- Maximum arbitration bit rate up to 1 Mbps and data bit rate up to 8 Mbps.
- Up to 20 MHz SPI clock speed compatible with microcontrollers.
- Includes 31 FIFOs configurable for transmit or receive operations.
- Offers extensive diagnostics including bus health and error counters.
- Operates with supply voltage range 2.7 to 5.5 V and low active current consumption.
- Wide operating temperature range from -40°C to +150°C suitable for demanding environments.
- Compact 14-pin SOIC package with precise dimensions for PCB designs.
Product Description
Microchip MCP2517FD-H/SL is a high-performance, cost-effective External CAN Flexible Data Rate (FD) controller enabling microcontrollers to interface with CAN FD networks via SPI communication. Designed in a compact 14-pin SOIC package, it supports CAN 2.0B and CAN FD protocols while delivering data bit rates up to 8 Mbps and arbitration bit rates up to 1 Mbps.
This device features an active current max of 12 mA at 5.5 V and a 40 MHz CAN clock, with a sleep current typically at 10 µA, making it power-efficient for embedded applications. Its extended temperature range from -40°C to 150°C makes it highly suitable for automotive and industrial environments requiring robust operation.
The MCP2517FD offers extensive functionality through 31 configurable FIFOs for flexible transmit/receive operation setups, along with 32 filter and mask objects, enhancing CAN message filtering to meet application needs. Additional diagnostics include bus health monitoring and detailed error counters to improve system reliability and fault detection.
The device is compatible with supply voltages ranging from 2.7 V to 5.5 V, providing flexibility across various electronic systems. Its small dimensions (Length: 8.65 mm, Width: 3.9 mm, Height: 1.5 mm) facilitate compact and space-conscious PCB layouts.
Supports Classical CAN 2.0B and CAN FD communication standards. Up to 8 Mbps data rate capability ensures high-speed network communication. SPI interface with clock speed up to 20 MHz for fast microcontroller communication.
Configurable FIFOs and filters adapt to diverse application requirements. Low power consumption supports energy-efficient designs. Operational temperature range suitable for harsh industrial and automotive use cases.
This Microchip CAN controller is ideal for industrial, automotive, and embedded communication systems requiring reliable and flexible CAN FD interfacing. Its compact SOIC14 package and robust feature set enable seamless integration into modern electronics platforms.
Explore the full range of CAN Interface ICs on EnvMart for complementary components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP2517FD-H/SL supports a maximum data rate of 8 Mbps.
It operates within a temperature range of -40°C to +150°C, making it suitable for harsh environments.
The device is compatible with supply voltages ranging from 2.7 V to 5.5 V.
It includes 31 FIFOs that can be configured for either transmit or receive operations.
The MCP2517FD-H/SL has a pin count of 14 and comes in a SOIC package type.
The maximum active current consumption is 12 mA at 5.5 V with a 40 MHz CAN clock.
It supports both Classical CAN 2.0B and CAN Flexible Data Rate (CAN FD) protocols.
The typical sleep current consumption is 10 µA.
The maximum arbitration bit rate is 1 Mbps.
The dimensions are 1.5 mm in height, 3.9 mm in width, and 8.65 mm in length.
It offers extensive diagnostics including bus health monitoring and error counters.
Yes, its wide operating temperature range and power efficiency make it suitable for automotive applications.
