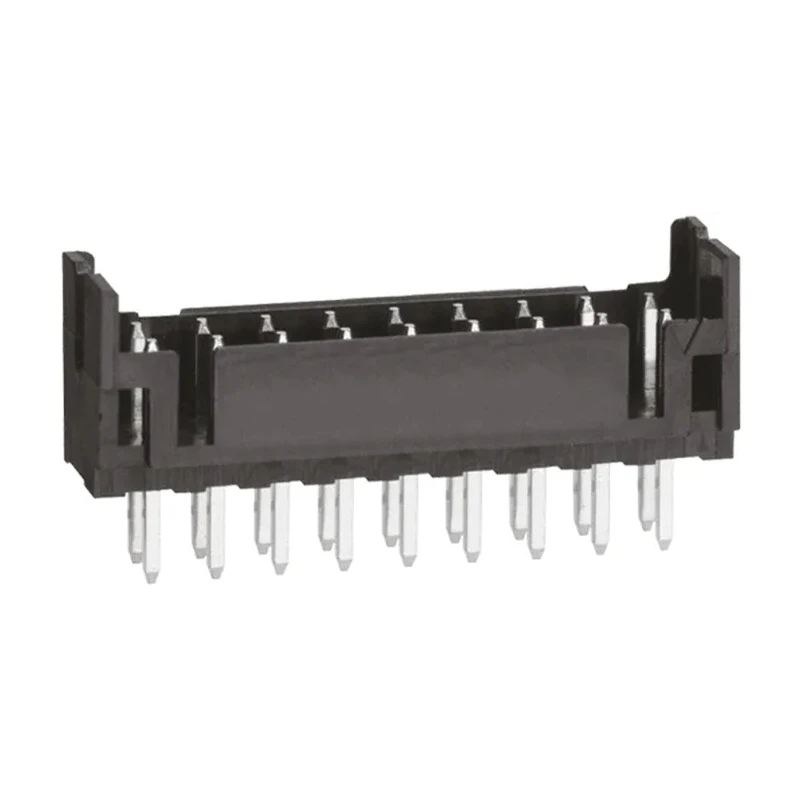

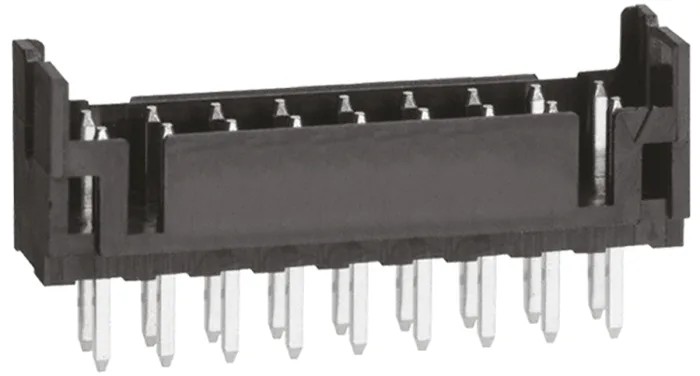

Hirose DF11 Series Straight Through Hole PCB Header, 18 Contacts, 2 mm Pitch, 2 Row, Shrouded DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Features 18 contacts with 2 mm pitch in a robust double-row layout.
- Constructed with polyamide housing for excellent durability and insulation.
- Shrouded design with guide ribs to prevent incorrect insertion and twisting.
- Supports through hole mounting for secure PCB retention.
- Designed for operating temperatures from -30°C to 85°C.
- Connector contacts are made from copper alloy with tin plating for reliable conductivity.
- Suitable for up to 2A current and 250V voltage applications.
- Ideal for digital cameras, LCD displays, and automotive systems requiring compact multi-signal connections.
Product Description
Hirose DF11 Series Straight Through Hole PCB Header, model DF11, is a high-quality 18-contact, 2 mm pitch, double-row connector designed for compact and reliable board-to-board and wire-to-board connectivity. Featuring a robust polyamide housing, the shrouded connector offers exceptional mechanical protection and alignment guidance to prevent mismating and twisting during installation.
This PCB Header supports through hole mounting technology which ensures secure soldering and retention on printed circuit boards. The copper alloy contacts plated with tin provide stable electrical conductivity suitable for applications up to 2A current and 250V voltage.
The connector operates efficiently across a temperature range from -30°C to a maximum of 85°C, making it suitable for a variety of environments. Its compact 5 mm depth design allows for a double row of contacts to fit in the same footprint as typical single-row connectors, saving valuable board space.
Hirose DF11 series connectors are commonly used in digital cameras, LCD displays, digital video recorders, car navigation devices, access control units, and various measurement instruments, addressing the need for multiple signal connections in small form factors.
Features 18 contacts with 2 mm pitch in a robust double-row layout. Constructed with polyamide housing for excellent durability and insulation. Shrouded design with guide ribs to prevent incorrect insertion and twisting.
Supports through hole mounting for secure PCB retention. Designed for operating temperatures from -30°C to 85°C. Connector contacts are made from copper alloy with tin plating for reliable conductivity. Suitable for up to 2A current and 250V voltage applications.
Ideal for digital cameras, LCD displays, and automotive systems requiring compact multi-signal connections.
These connectors meet the demanding standards of industrial and consumer electronics manufacturing, ensuring secure electrical performance and mechanical stability. Explore more Hirose connectors and related PCB components on EnvMart for your next electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an 18-contact layout with a 2 mm pitch.
It is suitable for applications up to 250V.
The connector can handle up to 2A of current.
The housing is made from polyamide, and the contacts are constructed from copper alloy with tin plating.
It operates efficiently within a temperature range of -30°C to 85°C.
The shrouded design includes guide ribs that help prevent incorrect insertion and twisting during installation.
This unit supports through hole mounting, ensuring secure soldering and retention on printed circuit boards.
The Hirose DF11 connector has a straight orientation.
It is commonly used in digital cameras, LCD displays, and automotive systems requiring compact multi-signal connections.
The termination type for this model is solder.
This model features a double-row configuration.
The connector is manufactured in Malaysia.
