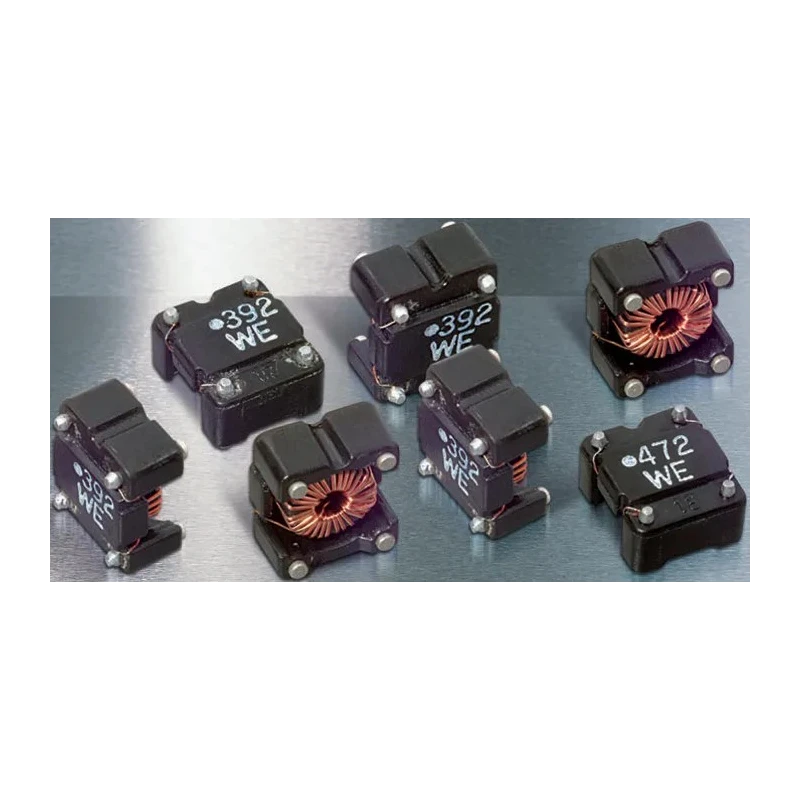

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core, 2.2 mH Dual Inductor, ±40% 744272222
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.5mm |
| Length | 10mm |
| Depth | 8.7mm |
| Packaging | Tape & Reel |
| Series | WE-SL5 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, Firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 2.2mH |
| Standards/Approvals | UL-94 V-0, RoHS |
| Maximum DC Current | 750mA |
| Pin Count | 4 |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±40 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed with a ferrite core for efficient noise suppression on signal and power lines.
- Compact surface mount package measuring 10 mm length, 6.5 mm height, and 8.7 mm depth.
- Meets automotive standard AEC-Q200 for high reliability in automotive applications.
- Features four pins suitable for surface mount soldering on PCBs.
- Maximum DC resistance of 300 milliohms ensures low power loss during operation.
- Wide operating temperature range from -40°C to 125°C for robust performance in harsh environments.
- UL-94 V-0 flame retardant housing material compliant with RoHS standards.
- Dual inductor construction provides effective common mode noise filtering for USB, Firewire, CAN, and other data lines.
Product Description
Wurth Elektronik 744272222 is a high-performance Surface Mount Common Mode Line Filter designed for noise suppression in electronic circuits utilizing a ferrite core and dual inductor construction. This component offers an inductance of 2.2 mH with a tolerance of ±40%, supporting a maximum DC current of 750 mA. Its compact dimensions of 10 mm length, 6.5 mm height, and 8.7 mm depth make it ideal for compact PCB layouts.
The filter complies with the automotive standard AEC-Q200, ensuring suitability for demanding automotive applications. The termination style is surface mount with four pins, facilitating easy and reliable soldering to PCB boards. The housing material meets UL-94 V-0 flame retardant requirements and is RoHS compliant, guaranteeing safety and environmental standards.
This dual inductor common mode choke is optimized for use in USB, Firewire, CAN bus, and data and power lines to reduce electromagnetic interference and improve signal integrity. Its maximum DC resistance of 300 mΩ minimizes power losses while delivering effective noise filtering.
With a wide operating temperature range from -40°C to 125°C, the Wurth Elektronik WE-SL5 series withstands harsh industrial, automotive, and consumer electronics environments. Packaging is supplied in tape and reel format, facilitating automated assembly processes.
Ferrite core material ensures efficient filtering performance. Compact 4-pin surface mount design suitable for high-density PCBs. Automotive and industrial compliance for reliability. High current rating supports demanding power line applications.
Low DC resistance reduces power consumption. RoHS and UL-94 V-0 certification for safety and environmental compliance. Ideal for noise filtering in data and power transmission lines.
This product is an excellent choice for engineers designing automotive electronics, industrial controls, communication devices, and computing hardware requiring effective EMI mitigation. Discover more advanced Surface Mount Inductors in the Electronics Components category at EnvMart to optimize your designs with trusted Wurth Elektronik products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 mH with a tolerance of ±40%.
This unit can handle a maximum DC current of 750 mA.
The dimensions of this filter are 10 mm in length, 6.5 mm in height, and 8.7 mm in depth.
The maximum DC resistance is 300 milliohms, which helps minimize power loss during operation.
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
This model complies with the automotive standard AEC-Q200, and meets UL-94 V-0 and RoHS standards.
The inductor is packaged in tape and reel format, facilitating automated assembly processes.
It is suitable for use with USB, Firewire, and other data and power lines.
This model features a dual inductor construction, which provides effective common mode noise filtering.
This component has four pins, which are suitable for surface mount soldering on PCBs.
The core material of this inductor is ferrite, which is designed for efficient noise suppression.
