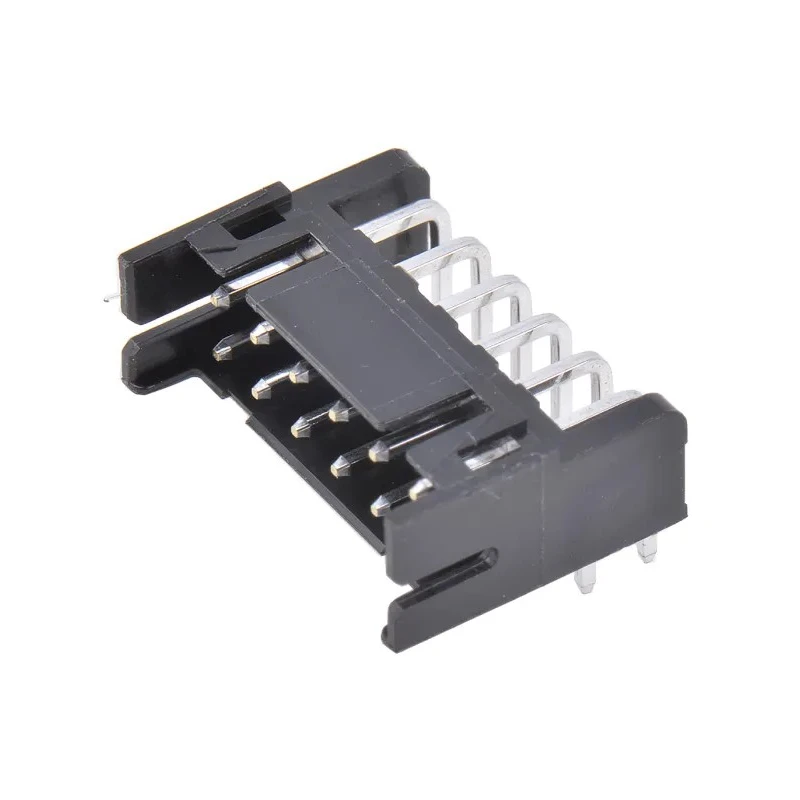

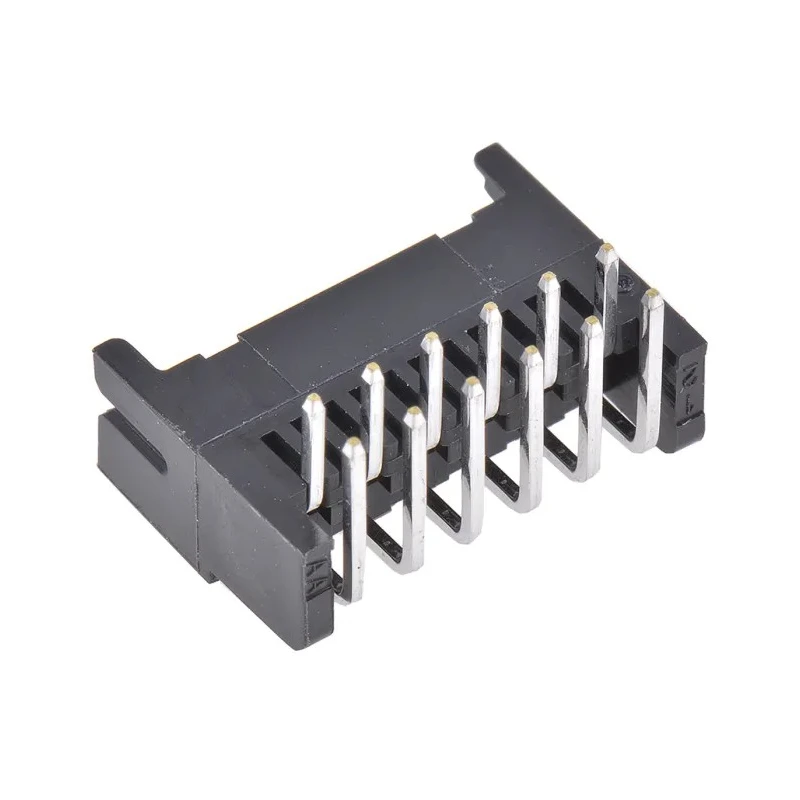

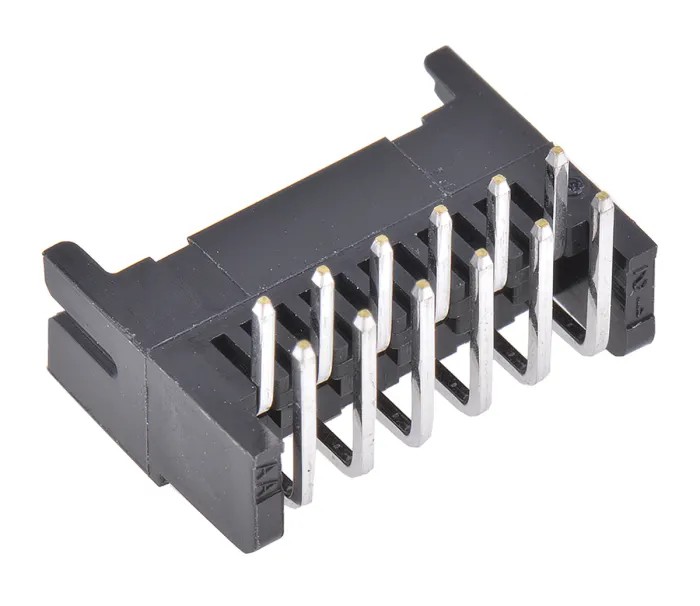

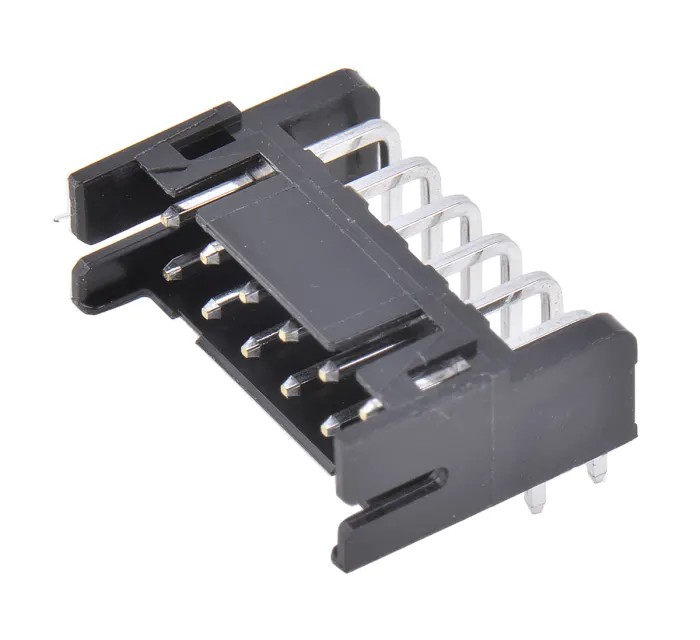

Hirose PCB Header Right Angle Through Hole 12 Contacts 2 mm Pitch 2 Row Shrouded DF11

Hirose DF11 is a right angle, through hole PCB header connector featuring 12 male contacts in a compact and space saving double row layout with 2 mm pitch spacing. This shrouded header is engineered with a robust polyamide housing material and brass contacts plated with tin to ensure reliable electrical conductivity and mechanical strength for industrial and electronic applications.

The connector supports 2A current and 250V voltage ratings. Its operating temperature range spans from -30°C up to 85°C, making it suitable for various environmental conditions encountered in consumer electronics, industrial equipment, and communication devices. The 5 mm compact depth allows the double row contacts to fit in the space equivalent to single row connectors, maximizing PCB real estate.

Its shrouded design with guide ribs prevents incorrect mating, while a locking mechanism secures the connection between the header and mating connector housing. Designed for through hole mounting, this connector enables durable PCB attachment and reliable solder termination. The connector system supports both board-to-board and wire-to-board interface standards, making it versatile for electronic device assembly.

This product is ideally suited for use in applications such as digital cameras, LCD displays, digital video recorders, car navigation devices, access control units, and measurement instruments where multiple signal connections require a compact and robust header solution.

Compact double row design with 2 mm pitch saves PCB space. Polyamide housing ensures insulation and mechanical robustness. Brass contacts plated with tin provide consistent conductivity. Rated for 2A current and 250V voltage with extended temperature range.

Shrouded design and locking mechanism prevent mismating and secure connection. Through hole mount type suitable for durable PCB soldering. Supports board-to-board and wire-to-board connector systems. Compact 5 mm depth facilitates high-density PCB layout.

Manufactured in Malaysia maintaining quality and reliability.
