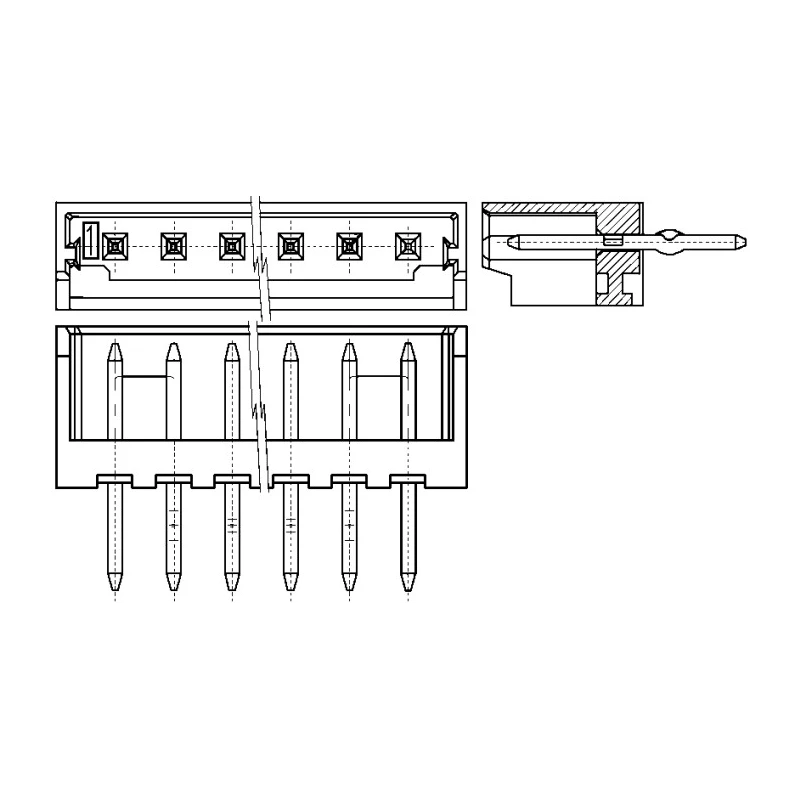

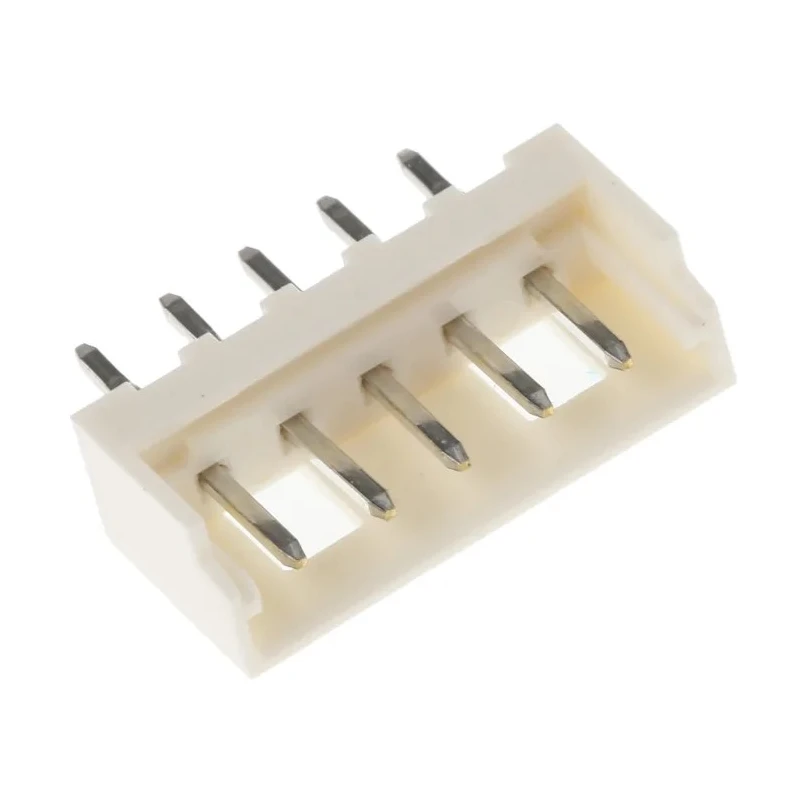

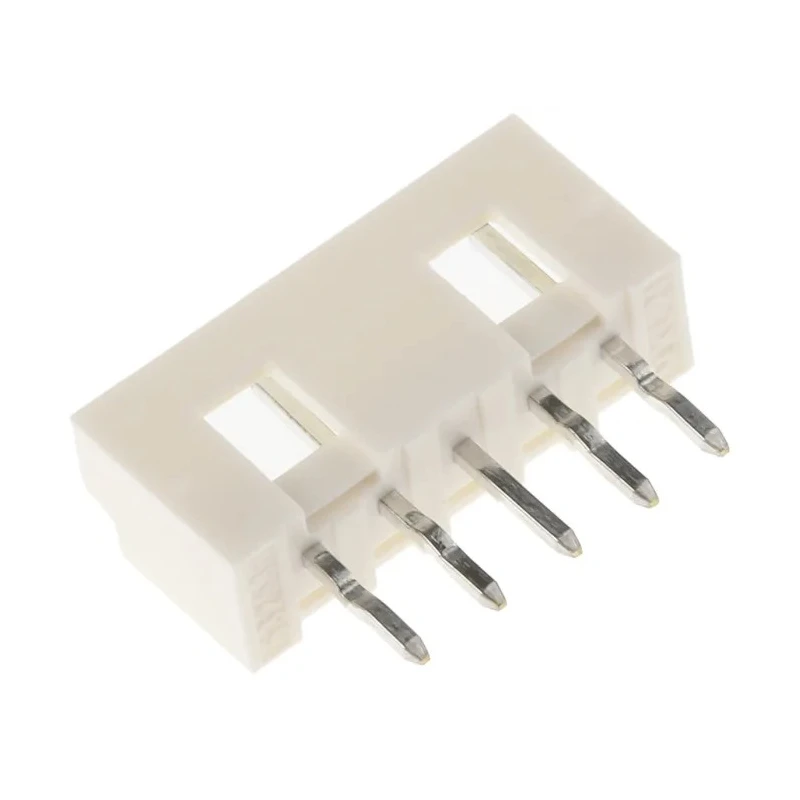

Molex Micro-Latch Series Straight Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded 53253-0570

Molex 53253-0570 Micro-Latch Series Straight Through Hole PCB Header is a precision-engineered component designed for reliable wire-to-board connections. This header features 5 male contacts arranged in a single row with a 2 mm pitch and a durable nylon housing providing mechanical stability and insulation.

The micro-latch mechanism applies a friction lock system where the noses on receptacle housings slide into the header wall openings, ensuring durable mating and protection of the electrical circuit. The brass contacts plated with tin guarantee excellent electrical conductivity and resistance to corrosion over time. The header is designed for through-hole mounting with solder termination, making it suitable for automated PCB assembly processes.

Rated for 125V and 2 Amps current, it is capable of operating over a wide temperature range from -40°C to 105°C, supporting use in various industrial, electronic manufacturing, and commercial applications. The shrouded design protects contacts from damage and prevents incorrect mating during assembly, enhancing overall system reliability.

This PCB header mates with Molex 51065 Series housings and 50212 Series terminals, facilitating flexible connectivity solutions. Its kinked PC tails and three-sided shroud provide additional mechanical security.

The micro-latch friction lock mechanism guarantees a durable and secure electrical connection. Nylon housing material delivers robust insulation and mechanical strength. Brass contacts with tin plating ensure excellent conductivity and protection against corrosion.

Through-hole mount with solder termination supports reliable PCB assembly. Rated for 125V voltage and 2A current, suitable for diverse electronic applications. Operates safely in extreme temperatures from -40°C to 105°C.

Shrouded design prevents misalignment and protects the circuitry. Compatible with Molex 51065 series housings and 50212 series terminals. Ideal for wire-to-board connections in industrial, laboratory, manufacturing, and commercial environments.
