Molex SPOX Series Right Angle Through Hole PCB Header 4 Contact 2.5 mm Pitch 1 Row Shrouded 22-05-7045

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Series Right Angle Through Hole PCB Header 4 Contact 2.5 mm Pitch 1 Row Shrouded 22-05-7045

Name: Molex SPOX Series Right Angle Through Hole PCB Header 4 Contact 2.5 mm Pitch 1 Row Shrouded 22-05-7045
Brand: Molex
SKU: 212110
Price: 0.37 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Low profile shrouded design ensures reliable connection and protection.
Polarization features prevent mismating for secure assembly.
Friction lock mechanism maintains a stable mating connection.
Suitable for automotive, consumer, data communications, and industrial applications.
Constructed with brass contacts and tin plating for durability.
Right angle orientation and through-hole mount provide flexible PCB integration.
Operating temperature range from -40°C up to 105°C.
Rated for 3A current and 250V voltage to support various circuits.

Product Description

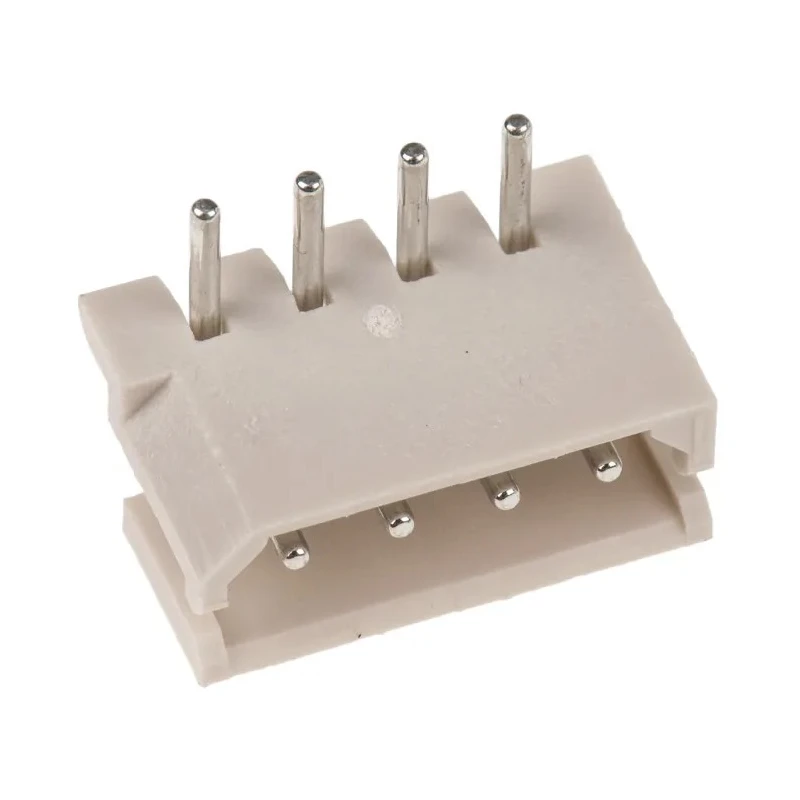

Molex 22-05-7045 SPOX Series Right Angle Through Hole PCB Header features a 2.5 mm pitch and 4 male contacts in a single row with a shrouded, low profile design. It is intended for wire-to-board connections in demanding electronic applications where durability and reliable mating are essential.

Constructed with brass contacts plated in tin, this PCB header is designed for through-hole installation at a right angle, improving PCB layout flexibility and mechanical strength. The product includes polarization features to prevent incorrect mating and a friction lock to ensure secure engagement with mate connectors.

Rated for a nominal current of 3A and voltage up to 250V, it performs reliably under temperatures ranging from -40°C to 105°C, making it suitable for automotive, consumer electronics, data communications, industrial, medical, networking, and telecommunications use cases.

The 3.5 mm tail pin length supports solder termination, providing robust PCB connectivity. This product complies with no specific standards or approvals but meets general PCB connector requirements.

Low profile shrouded design ensures secure and protected connection. Polarization prevents mismating for reliable system assembly. Friction lock mechanism maintains stable connections under vibration. Brass contact material with tin plating enhances electrical performance.

Right angle orientation supports flexible PCB mounting options. Wide temperature operating range enables use in harsh environments. Rated for 3A current and 250V voltage across various industrial applications. Tail pin length of 3.5 mm facilitates solder termination.

Designed for automotive, consumer, industrial, and networking applications. Shrouded male contacts arranged in a single row for space-efficient design. This Molex SPOX Series right angle PCB Header offers a high-quality connection solution for wire-to-board applications. It is manufactured in China and is supplied as new.
