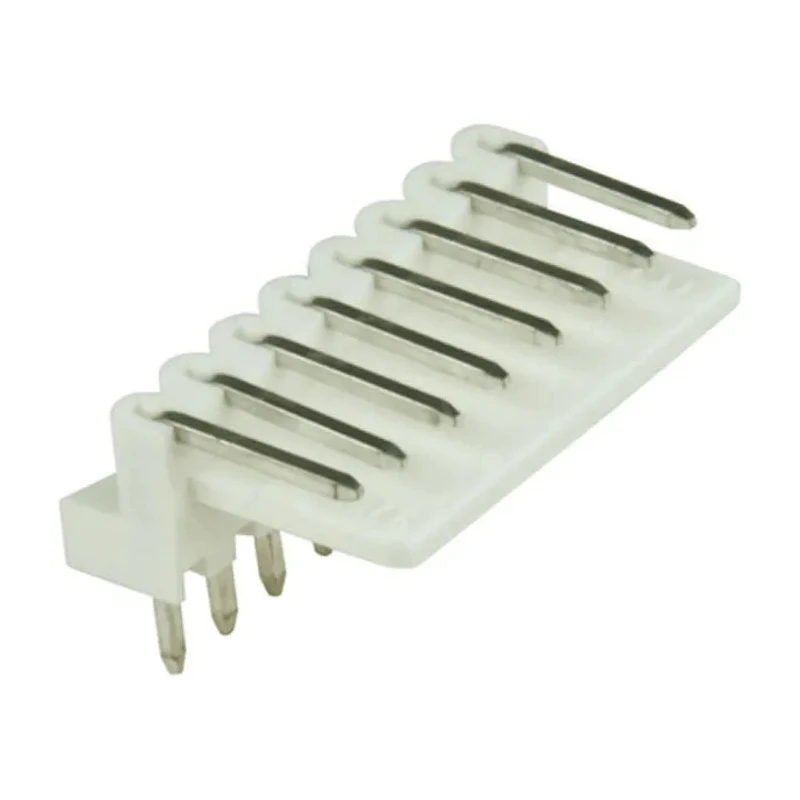

Molex Mini-Latch Series Right Angle Through Hole Pin Header 7 Contacts 2.5 mm Pitch 1 Row Unshrouded 22-05-1072
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | Mini-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.4mm |
Key Features
- Provides 7 contacts with a 2.5 mm pitch for precise PCB connection.
- Features a right angle orientation ideal for PCB mounting requirements.
- Constructed with a polyamide housing ensuring durability and insulation.
- Contacts are brass material plated with tin for excellent conductivity and corrosion resistance.
- Supports a current rating of 3A at 250V voltage operation.
- Tail pins are 3.4 mm in length for secure solder connections.
- Operates reliably between -40°C and 105°C for harsh environments.
- Designed as unshrouded with a friction ramp locking mechanism for secure mating.
Product Description
Molex 22-05-1072 Mini-Latch Series Right Angle Through Hole Pin Header is a precision 7-contact pin header designed for secure and reliable wire-to-board connectivity with a 2.5 mm pitch and 1 row configuration.
This unshrouded connector features a right angle mounting orientation and a polyamide housing, providing excellent insulation and mechanical stability. The contacts are made from brass with tin plating for superior electrical conductivity and corrosion resistance.
Designed to operate at 3A current and 250V voltage, this pin header supports industrial applications across automotive, communication, computing, and electronic equipment sectors. The specified operating temperature range of -40°C to 105°C ensures durability in harsh environments.
The tail pin length of 3.4 mm facilitates robust solder termination on PCB through-hole pads. The friction ramp locking mechanism enhances secure mating with corresponding Mini-Latch crimp housings such as the 51191 and KK 5051 series, aiding in flexible and reliable design implementations.
This pin header is widely used in vehicles, fax machines, printers, PC monitors, and data communication centers where dependable wire-to-board interconnection is critical. 7 contacts with 2.5 mm pitch ensure precise electrical connectivity.
Right angle orientation supports space-efficient board designs. Polyamide housing guarantees insulation and robustness. Brass contacts plated with tin provide excellent conductivity. Current rating of 3A and voltage rating of 250V suitable for varied applications.
Solder termination through tail pins 3.4 mm long ensures stable connections. Operates effectively in extreme temperature conditions of -40°C to 105°C. Friction ramp locking mechanism improves connection security. Compatible with Mini-Latch 51191 and KK series 5051 crimp housings.
Ideal for automotive, industrial electronics, and communication equipment. Explore more PCB header solutions at EnvMart to enhance your electronic assemblies with trusted products from Molex and other leading brands.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3A at a voltage operation of 250V.
The contacts of this model have a pitch of 2.5 mm.
It operates reliably between -40°C and 105°C, making it suitable for harsh environments.
The housing is made from polyamide, while the contacts are brass plated with tin for excellent conductivity and corrosion resistance.
The tail pins are 3.4 mm in length, facilitating secure solder connections.
This connector uses solder termination for secure connections to PCB through-hole pads.
This model is unshrouded, designed for secure mating with a friction ramp locking mechanism.
The connector features a right angle orientation, ideal for space-efficient PCB mounting.
This pin header has 7 contacts, allowing for precise electrical connectivity.
It is suitable for various applications including automotive, communication, computing, and electronic equipment sectors.
This pin header is compatible with Mini-Latch crimp housings such as the 51191 and KK 5051 series.
The country of origin for this pin header is India.
