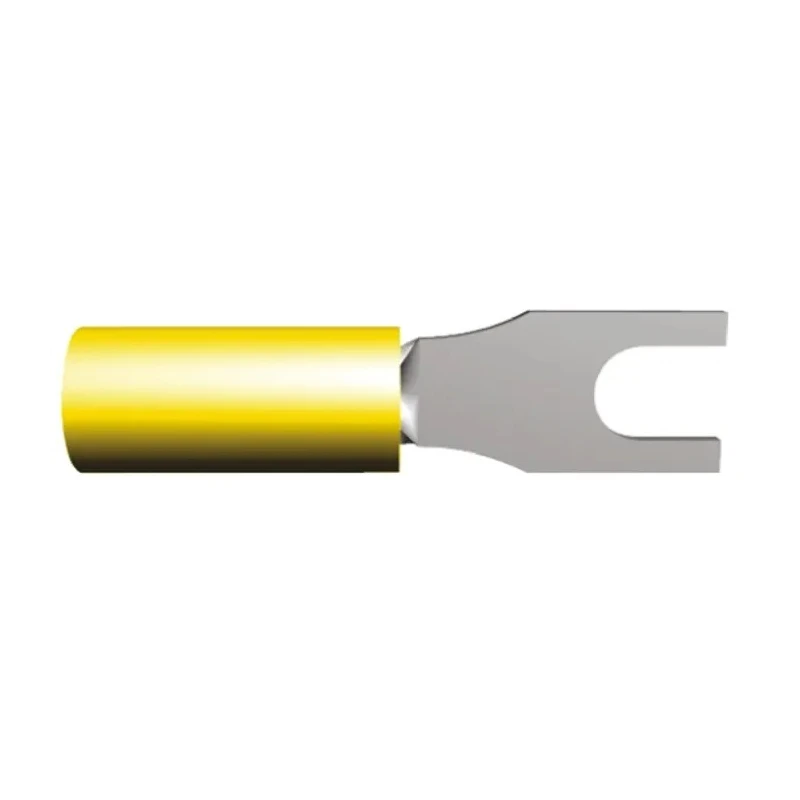

TE Connectivity PIDG Insulated Fork Terminal 12 AWG to 10 AWG Nylon Yellow M4 Stud Size 130496
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 130496 |
| Width | 8mm |
| Insulation | Insulated |
| Overall Length | 31.1mm |
| Contact Material | Copper |
| Series | PIDG |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Features a copper sleeve around the barrel for enhanced wire insulation support.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Colour-coded nylon sleeve for easy wire size identification and tooling recognition.
- Funnelled wire entry design allows quick and efficient wire insertion.
- Non-hooked design suitable for various industrial and commercial wiring applications.
- Compatible with 12 AWG to 10 AWG wire sizes and M4 stud size fittings.
- Overall length of 31.1 mm with a thickness of 0.79 mm.
Product Description
TE Connectivity 130496 PIDG Insulated Fork Terminal is designed for secure, reliable electrical connections in demanding environments. The fork terminal is insulated with yellow nylon for protection and identification, suitable for wire sizes ranging from 12 AWG to 10 AWG and featuring an M4 stud size. The high conductivity copper body and barrel provide excellent electrical performance while the copper sleeve surrounding the wire barrel offers improved insulation support after crimping, preventing damage to the wire insulation and conductor.
Serrations inside the wire barrel maximize contact area and tensile strength, delivering consistent and reliable crimps. The nylon sleeves, colour coded by wire size, facilitate easy identification and appropriate tooling selection. Its funnelled wire entry enables rapid wire insertion during high-volume production.
These Fork Terminals are widely applied in various industrial sectors including instruments and control panels, lighting systems, power supplies, transportation equipment, lifting machinery, motors, aerospace, and appliances. Designed to meet or exceed MIL-T-7928 Type II Class 1 and 2 standards, these terminals combine durability, versatility, and ease of use for professional wiring installations.
Constructed from high conductivity copper for optimum electrical performance. Copper sleeve enhances wire insulation support post-crimp. Serrations inside barrel deliver maximum contact and tensile strength. Colour-coded nylon sleeves enable quick wire size identification.
Funnelled wire entry for fast wire insertion during production. Designed for uniform and reliable crimp connections. Compatible with wire sizes 12 AWG to 10 AWG and stud size M4. Yellow nylon insulation provides protection and visual identification.
Tin-plated contacts resist corrosion and ensure conductivity. Suitable for aerospace, automotive, instrumentation, and power applications. Explore more high-quality wire terminals and splices in the Electronics & Electricals category at EnvMart for your professional wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 12 AWG to 10 AWG.
The overall length of the terminal is 31.1 mm, and its thickness is 0.79 mm.
The contact material of this terminal is copper, which ensures excellent electrical performance.
The terminal features insulation made from nylon, providing protection and visual identification.
The stud size for this fork terminal is M4.
It has a funnelled wire entry design that allows for quick and efficient wire insertion.
The serrations inside the wire barrel maximize contact area and tensile strength after crimping, ensuring reliable connections.
This terminal is designed to meet or exceed MIL-T-7928 Type II Class 1 and 2 standards.
The nylon sleeve is yellow, which aids in wire size identification and tooling recognition.
Yes, its funnelled wire entry design enables rapid wire insertion, making it suitable for high-volume production.
This terminal is widely applied in various sectors including instruments and control panels, lighting systems, and aerospace.
The terminal is manufactured in India.
