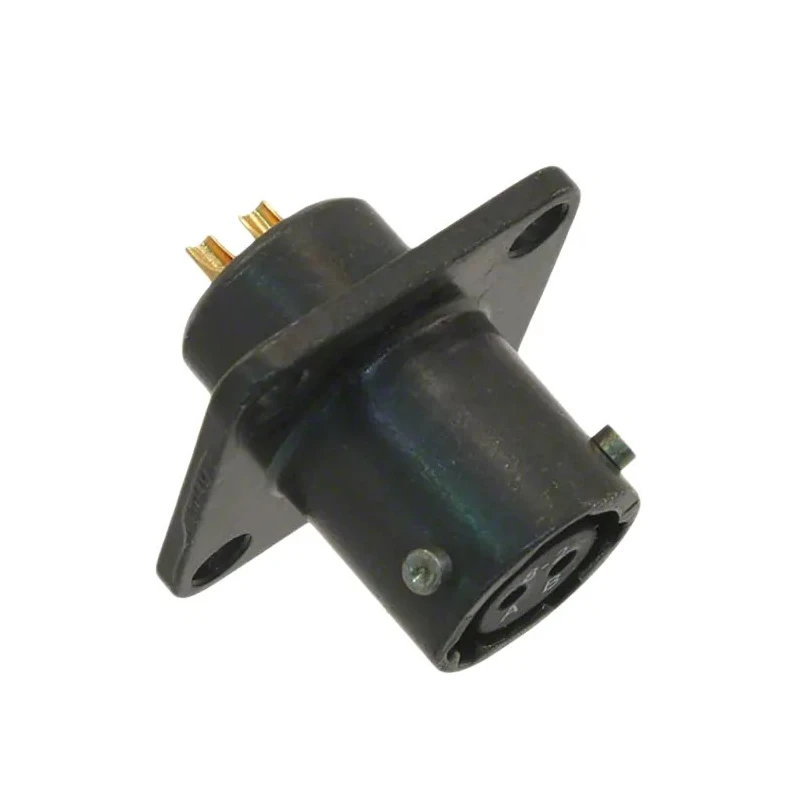

Amphenol Socapex MIL Spec Circular Connector Copper Alloy Straight 2 Way Panel Mount 1kV AC 125°C PT02A-8-2S

Amphenol Socapex PT02A-8-2S MIL Spec Circular Connector is a high-quality industrial connector constructed for reliable performance in demanding environments such as military, aerospace, industrial control, and electronic systems.

This miniature shell size 8 connector features an aluminium housing with cadmium plating that provides corrosion resistance and mechanical robustness. It includes two female contacts made from copper alloy with gold plating, ensuring superior electrical conductivity, low contact resistance, and excellent durability.

Designed to meet the MIL-DTL-26482 military specifications, the PT series connectors employ a bayonet coupling mechanism for quick and secure connection and disconnection with other compatible MIL-DTL-26482 connectors. The solder termination type allows for permanent, stable attachment of wires to the contacts. The connector supports a voltage rating of 1kV AC and can operate in temperatures ranging from -55°C up to 125°C, making it suitable for harsh and varied environmental conditions.

The panel mount design and straight orientation facilitate easy integration into control panels and electronic assemblies. The green color coding and miniature size improve identification and space efficiency in assemblies.

These connectors are widely used in industrial, military, aerospace, and manufacturing applications requiring dependable power and signal connections under extreme conditions. Key features include the aluminium shell, gold-plated copper alloy contacts, bayonet locking, and compliance with MIL standards, ensuring interchangeability and reliability.

Constructed with aluminium housing and cadmium plating for durability. Gold-plated copper alloy female contacts provide high conductivity. Rated for 1kV AC voltage and temperature range -55°C to 125°C. Bayonet mating type enables secure and quick connections.

Compliant with MIL-DTL-26482 military specification. Miniature shell size 8 with green color for easy identification. Solder termination for permanent stable connection. Straight orientation adapted for panel mount installations.

Suitable for industrial, military, aerospace, and manufacturing use.
