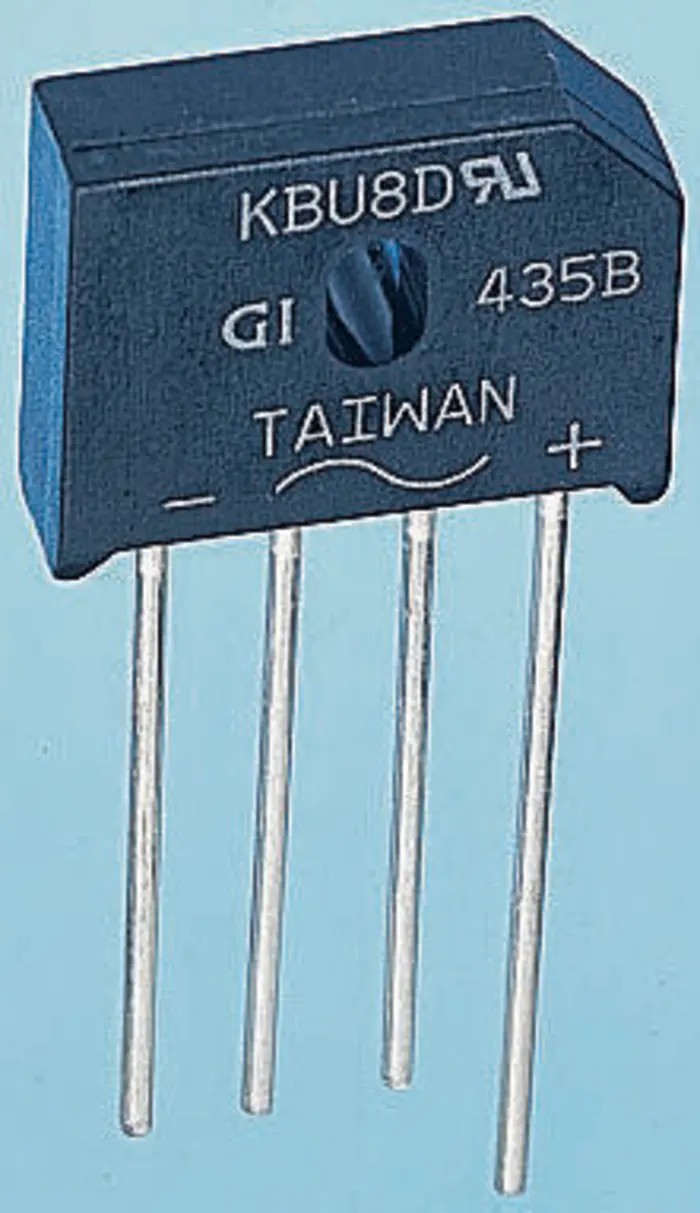

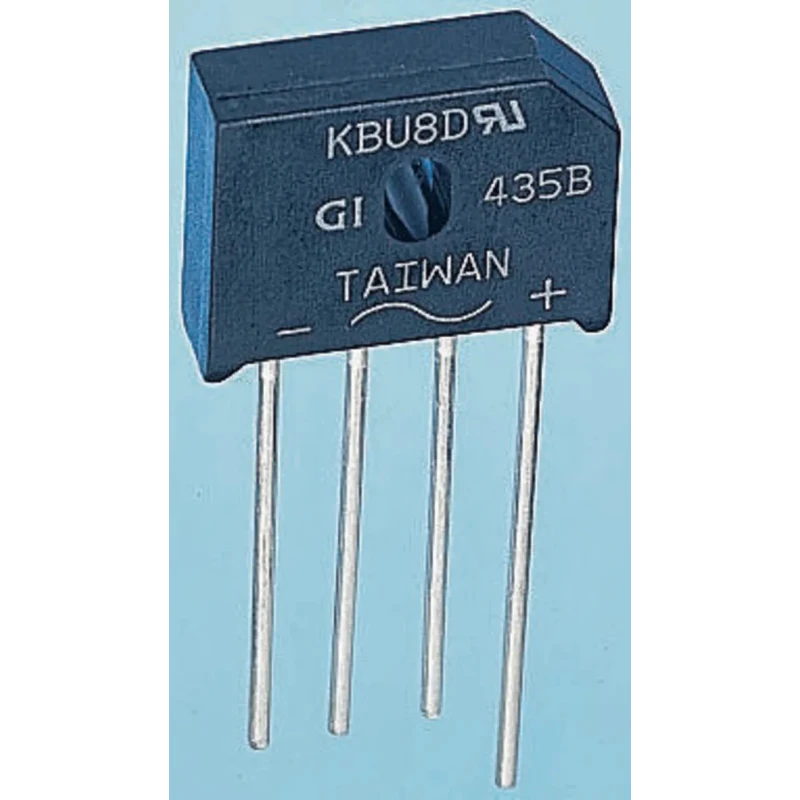

Taiwan Semiconductor Bridge Rectifier 600 V 200 A 4-Pin Single KBU805G

Taiwan Semiconductor KBU805G Bridge Rectifier is a 600 V, 200 A diode designed for converting AC input into DC output. This single-phase rectifier features a 4-pin single configuration and is suited for through-hole PCB mounting in the KBU package type.

With a maximum operating temperature of 150°C and minimum temperature tolerance down to -55°C, it ensures reliable performance in demanding industrial environments. The device carries a peak forward voltage of 1 V and a continuous forward current rating of 8 A.

The rectifier has dimensions of 23.7 mm length, 7.1 mm width, and 19.3 mm height, making it suitable for streamlined PCB layouts. Its glass passivated junction enhances durability and longevity, ideal for power electronic circuits and semiconductor discrete components.

This Taiwan Semiconductor KBU series product efficiently manages peak non-repetitive forward surge currents up to 200 A, supporting transient load conditions. It is robust for use in manufacturing, industrial, electronic equipment, power supplies, and related fields.

Provides reliable rectification with single-phase 4-pin configuration. Designed for through-hole PCB mounting with KBU package type. Operates at maximum temperature of 150°C and minimum of -55°C. Features peak forward voltage of 1 V suitable for power electronics.

Measures 23.7 mm length, 7.1 mm width, and 19.3 mm height for compact integration. Capable of continuous forward current of 8 A for stable operation. Glass passivated junction construction for enhanced durability. Ideal for industrial and electronic semiconductor discrete component applications.
