Taiwan Semiconductor Bridge Rectifier 1400 V 50 A DBLS209G

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier 1400 V 50 A DBLS209G

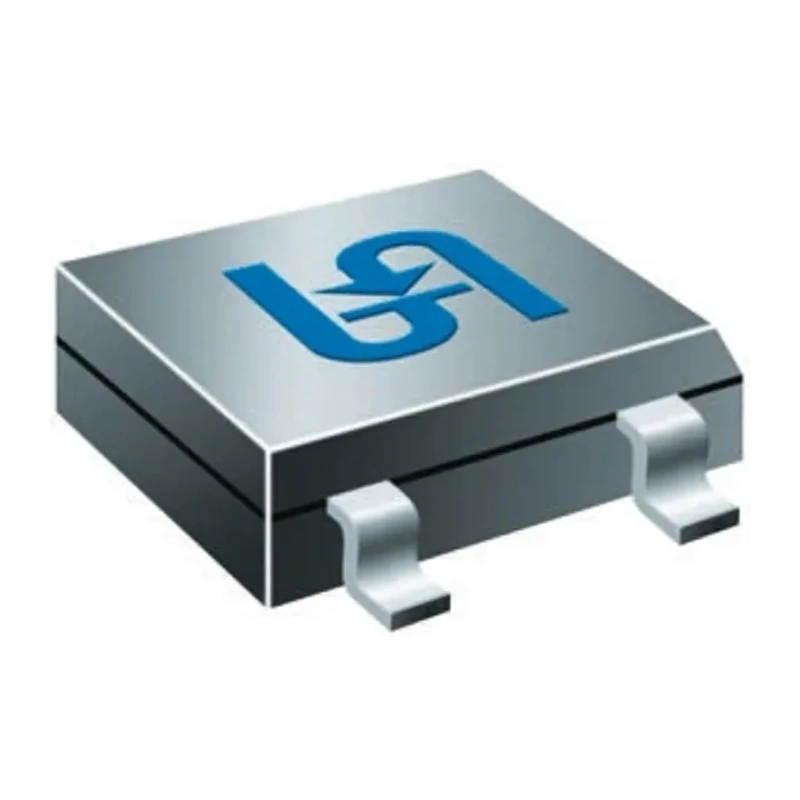

Name: Taiwan Semiconductor Bridge Rectifier 1400 V 50 A DBLS209G
Brand: Taiwan Semiconductor
SKU: 201903
Price: 0.41 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.6mm
Length	8.51mm
Model	DBLS209G
Width	6.5mm
Mount Type	Surface
Series	DBLS209G
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DBLS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Automotive Standard	AEC-Q101
Peak Reverse Repetitive Voltage Vrrm	1400V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	2A
Peak Forward Voltage Vf	1.3V

Key Features

Surfaces mount type designed for PCB applications.
Robust construction with molded plastic technique for reliability.
Glass passivated junction ensures enhanced durability.
High surge current capability supports industrial demands.
Operates reliably between -55°C to 150°C.
Complies with automotive standard AEC-Q101 for quality assurance.
Compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height.
Ideal for electronic and power semiconductor applications.

Product Description

Taiwan Semiconductor DBLS209G Bridge Rectifier is a high-performance semiconductor device designed for surface-mount applications, providing a peak reverse repetitive voltage of 1400 V and a forward current of 50 A. This 4-pin single bridge rectifier is engineered with a glass passivated junction, ensuring high reliability and long operational life under demanding conditions.

Its rugged molded plastic construction offers excellent surge current handling of up to 50 A peak non-repetitive forward surge current, making it suitable for demanding industrial, electronic, and power conversion applications. The component operates within a wide temperature range from -55°C up to 150°C allowing use in harsh environments and automotive systems, meeting the AEC-Q101 automotive standard.

The DBLS209G series is designed for automated placement on printed circuit boards, simplifying the manufacturing process without sacrificing quality. It is ideal for converting alternating current (AC) input into direct current (DC) in power supplies and various electronic circuits.

Features include a peak forward voltage of 1.3 V and a low peak reverse current of 10 μA, which contribute to efficient power conversion and low power loss during operation. The compact form factor with dimensions 8.51 mm length, 6.5 mm width, and 2.6 mm height supports high-density electronic assemblies.

Surface mount package DBLS type optimized for PCB integration. Glass passivated junction ensures device longevity and stability. High surge current capacity for transient voltage tolerances. Meets automotive reliability standards AEC-Q101.

Operates in temperature range from -55°C to 150°C. Compact size for use in dense electronic assemblies. Low forward and reverse losses for efficient power conversion.

This Bridge Rectifier finds applications in industrial electronics, automotive power systems, power supplies, and other controlled rectification circuits. It is a critical component for converting AC to DC reliably in commercial and manufacturing environments.

Explore the full range of semiconductor components in EnvMart's Electronics & Electricals category for reliable sourcing of quality electronic components.
