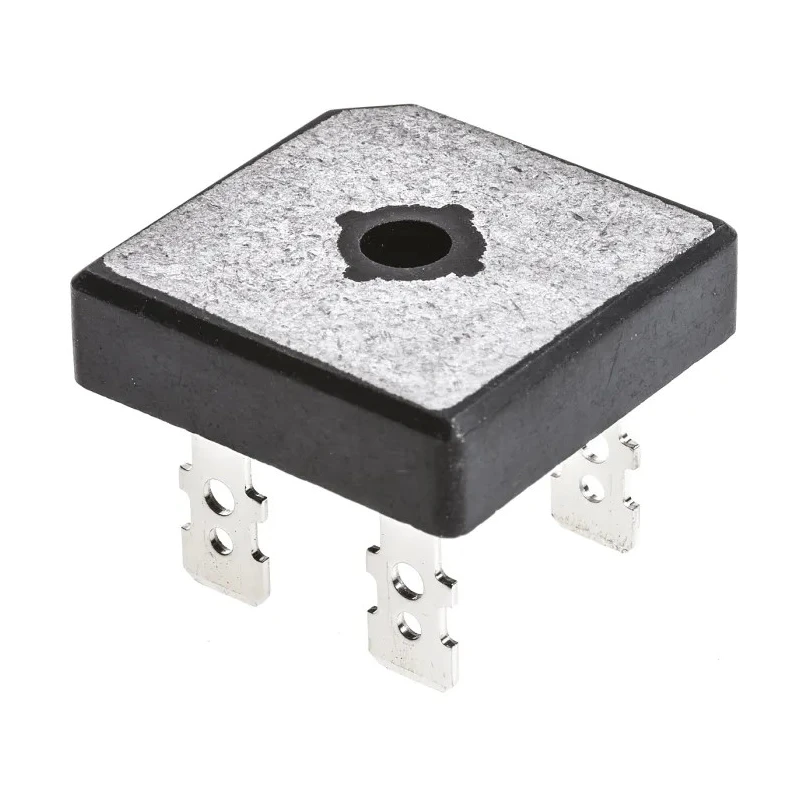

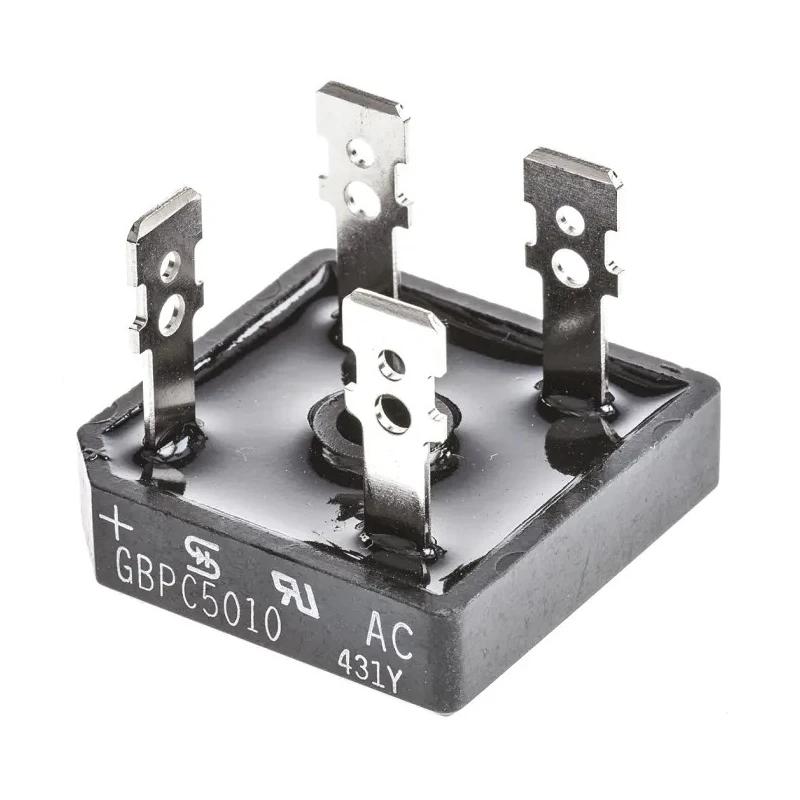

Taiwan Semiconductor Bridge Rectifier, 1000 V 400 A, 4-Pin Single GBPC5010 T0

Name: Taiwan Semiconductor Bridge Rectifier, 1000 V 400 A, 4-Pin Single GBPC5010 T0
Brand: Taiwan Semiconductor
SKU: 211933
Price: 5.23 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	China
Brand	Taiwan Semiconductor
Height	7.87mm
Length	29mm
Model	GBPC5010 T0
Width	29mm
Mount Type	Screw
Series	GBPC50
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-50°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	400A
Forward Current If	50A
Peak Forward Voltage Vf	1.1V
Vishay Bridge Rectifier, 1000 V 400 A, 4-Pin SingleBrand	Vishay
Taiwan Semiconductor Bridge Rectifier, 50A, 400V, 4-PinBrand	Taiwan Semiconductor
DAWIN Electronics Bridge Rectifier, 50A, 800V, 4-PinBrand	DAWIN Electronics

Key Features

Capable of withstanding a peak reverse repetitive voltage of 1000 V.
Supports continuous forward current of 50 A for high current applications.
Operates reliably within temperature range -50°C to 150°C.
Peak non-repetitive forward surge current of 400 A ensures durability under transient conditions.
Compact dimensions of 29 mm length, 29 mm width and 7.87 mm height.
Screw mount type ensures secure installation and mechanical stability.
Glass passivated junction enhances reliability and longevity.
Integrally molded heat sink provides low thermal resistance for effective heat dissipation.

Product Description

Taiwan Semiconductor GBPC5010 T0 Bridge Rectifier is designed for converting alternating current (AC) input into direct current (DC) output, essential in power supply circuits. This 4-pin single configuration device supports a peak reverse repetitive voltage of 1000 V and a forward current of 50 A, making it suitable for demanding electronic applications.

The bridge rectifier operates efficiently across a wide temperature range of -50°C to 150°C and withstands a peak forward surge current of 400 A, providing robustness against transient overloads. With a compact package size of 29 mm by 29 mm by 7.87 mm, it fits well in space-constrained designs.

Key features include a glass passivated junction to improve performance reliability and an integrally molded heat sink that offers low thermal resistance for optimal heat dissipation. The device includes fast-on terminals for ease of installation and an isolated voltage rating from case to lead over 2500 V to ensure safety in electrical systems.

This bridge rectifier is primarily used in industrial electronics, power supply units, testing equipment and other applications requiring stable DC power conversion from AC sources. The screw mount type facilitates secure and stable installation in electronic assemblies.

Capable of withstanding a peak reverse repetitive voltage of 1000 V. Supports continuous forward current of 50 A for high current applications. Operates reliably within temperature range -50°C to 150°C. Peak non-repetitive forward surge current of 400 A ensures durability under transient conditions.

Compact dimensions of 29 mm length, 29 mm width and 7.87 mm height. Screw mount type ensures secure installation and mechanical stability. Glass passivated junction enhances reliability and longevity. Integrally molded heat sink provides low thermal resistance for effective heat dissipation.

Isolated voltage from case to lead exceeds 2500 V for electrical safety. Equipped with fast-on terminals for quick and easy connections. Explore the extensive range of semiconductors and Bridge Rectifiers at EnvMart for all industrial and electronic component needs.
