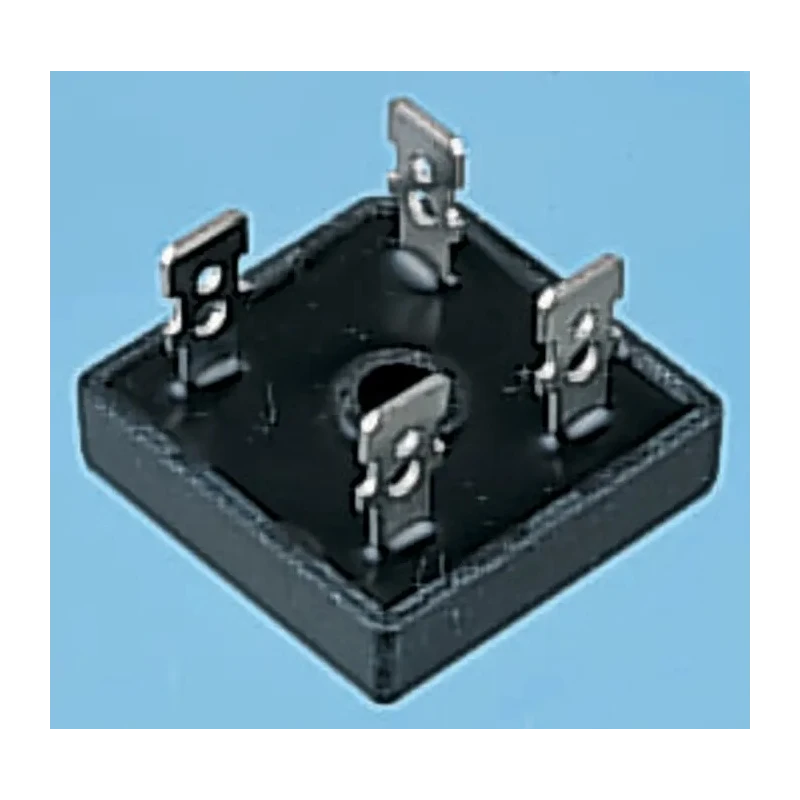

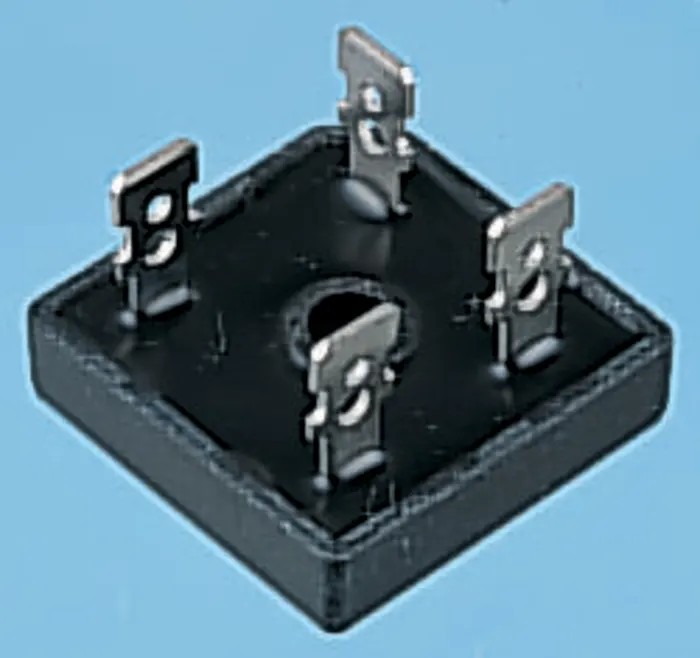

Taiwan Semiconductor Bridge Rectifier 50 V 300 A 4-Pin Single GBPC15005 T0

Taiwan Semiconductor GBPC15005 T0 Bridge Rectifier 4-Pin Single is a high-performance discrete semiconductor component designed to convert alternating current (AC) into direct current (DC). It features a peak reverse repetitive voltage of 50 V and supports a peak non-repetitive forward surge current of 300 A, making it suitable for demanding power electronics applications.

This device is mounted using a screw mount type and packaged in a GBPC configuration with four pins, ensuring secure and reliable connection in assemblies. The bridge rectifier supports a forward current rating of 15 A and operates safely in temperatures ranging from -50°C to 150°C, accommodating various industrial and commercial environments.

Constructed with a glass passivated chip junction, it provides excellent long-term reliability and stability. Additionally, the integrally molded heat sink minimizes thermal resistance, maximizing heat dissipation and ensuring consistent performance under load.

This bridge rectifier offers fast-on terminals for quick installation and an isolated voltage from the case to leads exceeding 2500 V, enhancing operational safety. The device presents a peak forward voltage of 1.1 V and a minimal peak reverse current of 5 microamperes, contributing to energy efficiency and low leakage.

Commonly used in power supplies, rectification circuits, and other semiconductor applications, the GBPC15005 T0 is an essential component for electronic engineers and technicians aiming for durable and efficient power conversion.

Designed for converting AC input to DC output with reliable diode bridge assembly. Features a screw mount type and 4-pin GBPC package for stable installation. Supports maximum forward current of 15 amperes for medium power applications.

Operates within a temperature range from -50°C to 150°C for versatile environments. Includes integrally molded heat sink for efficient thermal dissipation. Has peak forward voltage of 1.1 V and peak reverse current of just 5 microamperes.

Constructed with glass passivated chip junction for enhanced durability. Bridge rectifier configuration ensures consistent polarity output regardless of input direction. Ideal for industrial, power supply, and electronic circuit applications.
