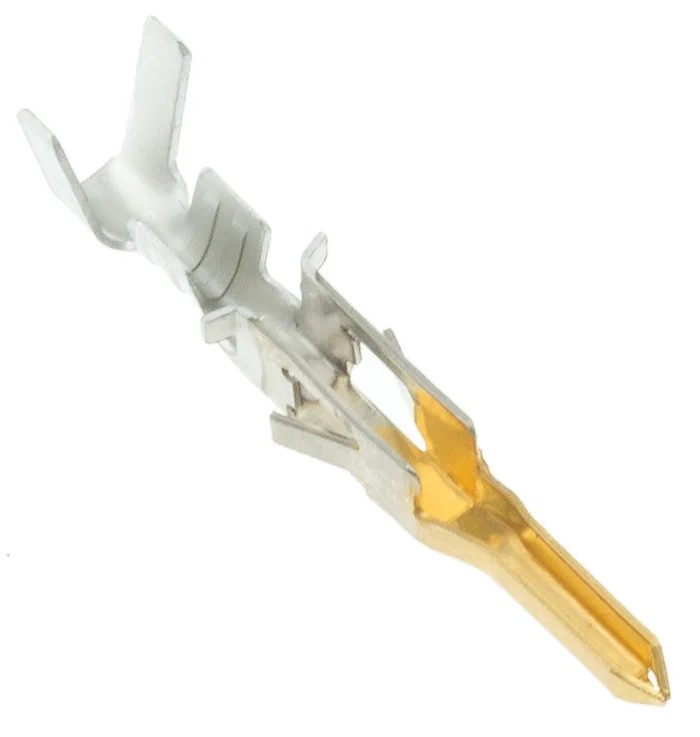

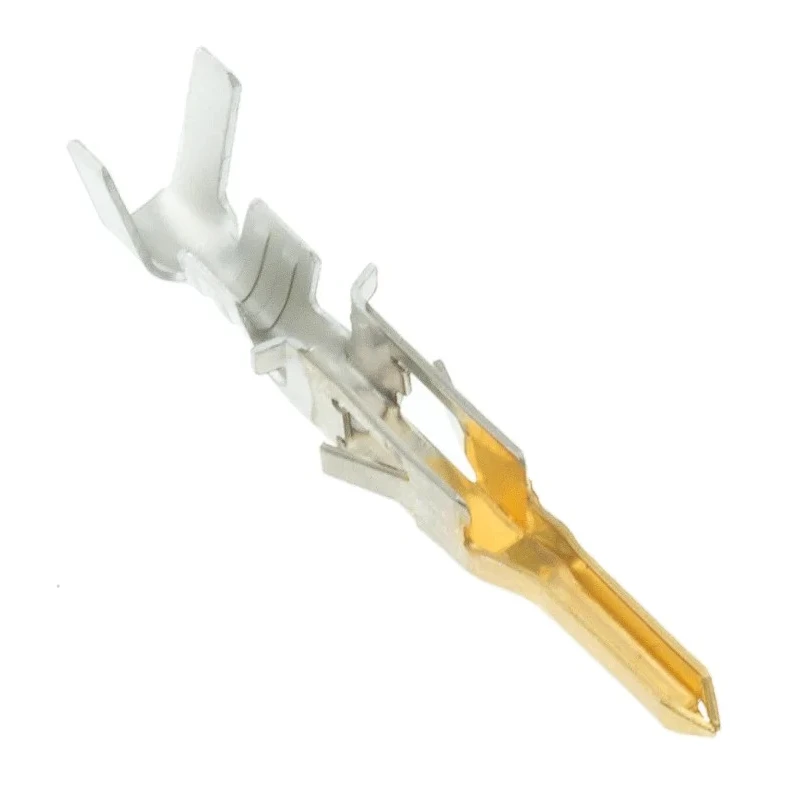

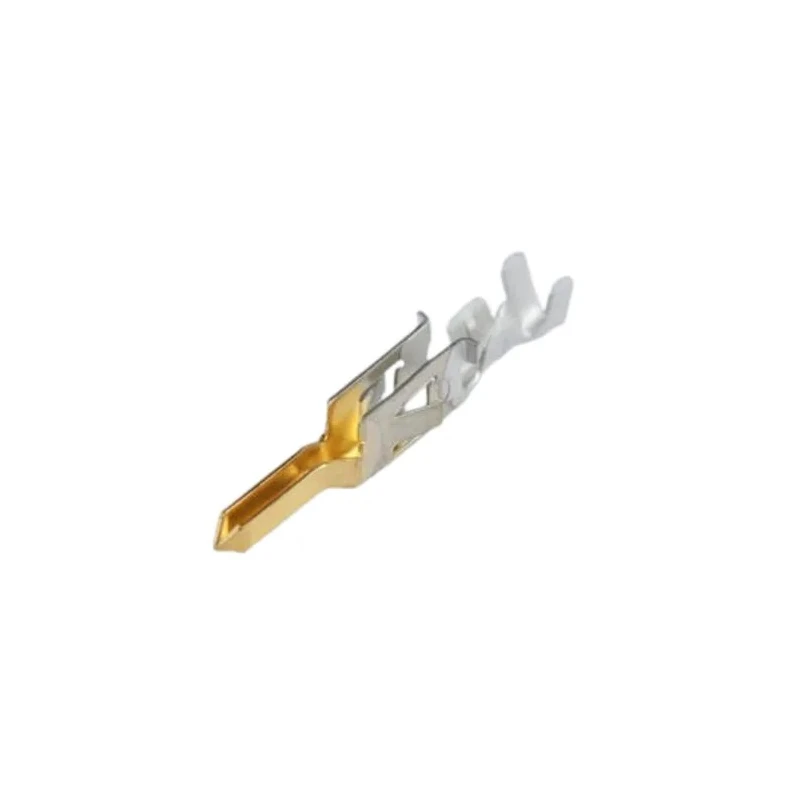

Molex 5558 Series Male Crimp Terminal, 24 AWG Min, 18 AWG Max, Gold Plated Phosphor Bronze 39-00-0220
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Mini-Fit TPA, BMI, and Mini-Fit Jr connector housings.
- Gold plating provides enhanced conductivity and corrosion resistance.
- Temperature range of -40°C to 105°C ensures performance in demanding environments.
- Designed for reliable crimp termination with 16 to 24 AWG hand crimp tools.
- Phosphor bronze construction ensures durability and low contact resistance.
- Suitable for industrial automation, automotive, and electrical systems.
- Supports wire insulation diameters from 1.30 mm to 3.10 mm.
Product Description
Molex 39-00-0220 5558 Series male crimp terminal is engineered for secure and reliable electrical connections in Mini-Fit Jr and related connector housings. Rated for a maximum current of 9A, it accommodates wire sizes from 24 AWG minimum to 18 AWG maximum, making it suitable for a variety of applications needing robust conductivity.
Constructed from phosphor bronze and plated with gold, this crimp terminal offers superior conductivity and corrosion resistance, promoting long-term performance even in challenging industrial environments. Its operational temperature range spans from -40°C to 105°C, ensuring reliability across a wide range of conditions.
The terminal is ideal for use in automation, mechanical, and electrical systems where tight, vibration-resistant electrical connections are necessary. It supports wire insulation diameters between 1.30 mm and 3.10 mm, ensuring compatibility with standard wiring specifications.
Recommended crimping tools are hand crimp tools designed for 16 to 24 AWG wire sizes to ensure proper terminal termination quality. This product features multiple points of contact and locking tangs that secure it firmly within connector housings.
Applications include industrial automation, automotive electrical systems, and general-purpose electrical wiring where dependable current carrying capacity and durability are critical.
Compatible with Mini-Fit TPA, BMI, and Mini-Fit Jr connector housings. Gold plating provides enhanced conductivity and corrosion resistance. Temperature range of -40°C to 105°C ensures performance in demanding environments.
Designed for reliable crimp termination with 16 to 24 AWG hand crimp tools. Phosphor bronze construction ensures durability and low contact resistance. Suitable for industrial automation, automotive, and electrical systems.
Supports wire insulation diameters from 1.30 mm to 3.10 mm. Explore more quality Crimp Contacts and electrical connectors at EnvMart to suit your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9A.
This terminal accommodates wire sizes from 24 AWG minimum to 18 AWG maximum.
It is constructed from phosphor bronze and features gold plating for enhanced conductivity and corrosion resistance.
The operational temperature range for this terminal spans from -40°C to 105°C.
This model is compatible with Mini-Fit TPA, BMI, and Mini-Fit Jr connector housings.
It is designed for use with hand crimp tools suitable for 16 to 24 AWG wire sizes.
The maximum contact resistance for this terminal is 10mΩ.
It supports wire insulation diameters between 1.30 mm and 3.10 mm.
This terminal is suitable for applications in industrial automation, automotive electrical systems, and general-purpose electrical wiring.
This model uses a crimp termination type for secure electrical connections.
The gender of this crimp terminal is male.
The country of origin for this crimp terminal is India.
