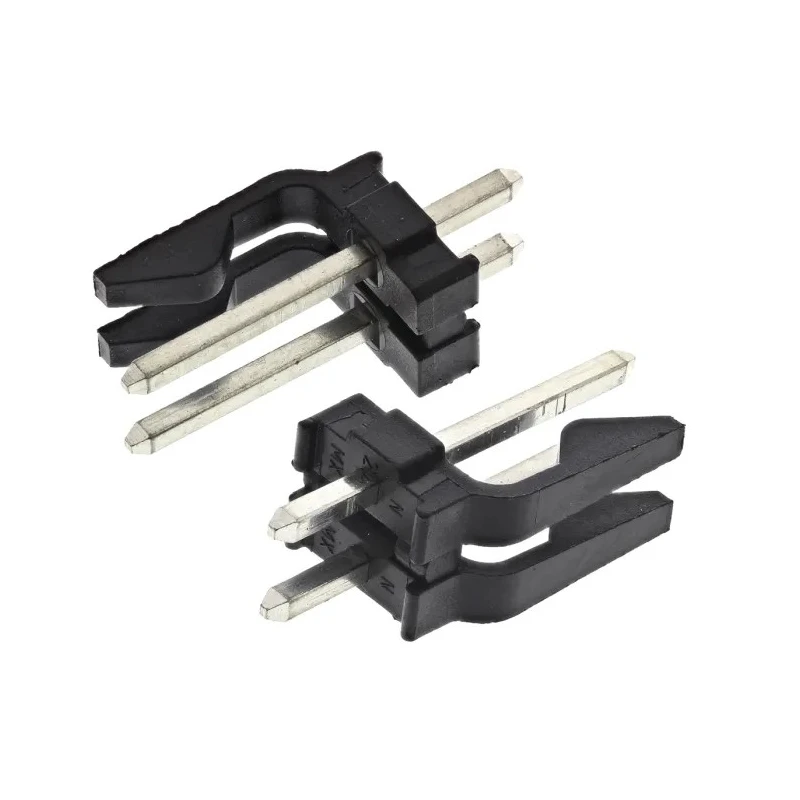

Molex KK 396 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-48-1025

Free Delivery in India | Lowest Global Shipping Charges

Molex KK 396 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-48-1025

Name: Molex KK 396 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-48-1025
Brand: Molex
SKU: 209265
Price: 0.5 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	7A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	KK 396
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3.96mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	4.37mm

Key Features

Features a straight orientation and unshrouded design suitable for various PCB applications.
Constructed with brass contacts plated in tin for durability and conductivity.
Designed for through-hole mounting with solder termination type.
Operates within a temperature range of -40°C to 80°C assuring versatile usage.
Rated at 250V voltage with a 7A current carrying capacity for steady electrical performance.
Has a contact tail pin length of 4.37 mm and a pitch of 3.96 mm for precise PCB alignment.
Compatible with multiple Molex housing and connector series ensuring broad integration.

Product Description

Molex 26-48-1025 KK 396 Series Straight Through Hole Pin Header is a high-quality electronic component designed for efficient wire-to-board connections in industrial, electronic, and manufacturing applications. The header features 2 brass contacts with tin plating, arranged in 1 row with a 3.96 mm pitch, providing reliable electrical contact and mechanical stability.

Its polyester housing material ensures insulation and durability while the unshrouded, straight orientation allows easy access and connection on printed circuit boards through soldered through-hole mounting. The component is engineered to operate safely between -40°C minimum and 80°C maximum ambient temperatures, handling up to 250 volts and 7 amperes, making it suitable for a variety of electronic designs requiring robust interfacing.

This Molex KK 396 Series header is compatible with numerous other connector series from Molex, facilitating versatile connectivity options in complex assemblies. The precise tail pin length of 4.37 mm allows secure soldering and mechanical fixation on PCB substrates, enhancing longevity and performance under industrial conditions.

Straight orientation for ease of use in compact PCB layouts. Unshrouded design for straightforward mating with compatible connectors. Brass contact material with tin plating for corrosion resistance. Through-hole mount type for strong mechanical connection.

Wide operating temperature range suitable for varied industrial environments. Voltage rating of 250V and current rating of 7A ensure electrical safety and efficiency. Polyester housing providing insulation and durability.

The Molex KK 396 Series Straight Through Hole Pin Header is ideal for use in electronics manufacturing, repair, industrial control systems, and any application requiring reliable PCB connection solutions. Browse more connectors and headers in this category at EnvMart for comprehensive electronic component selections.

Explore more products in our PCB Header category.
