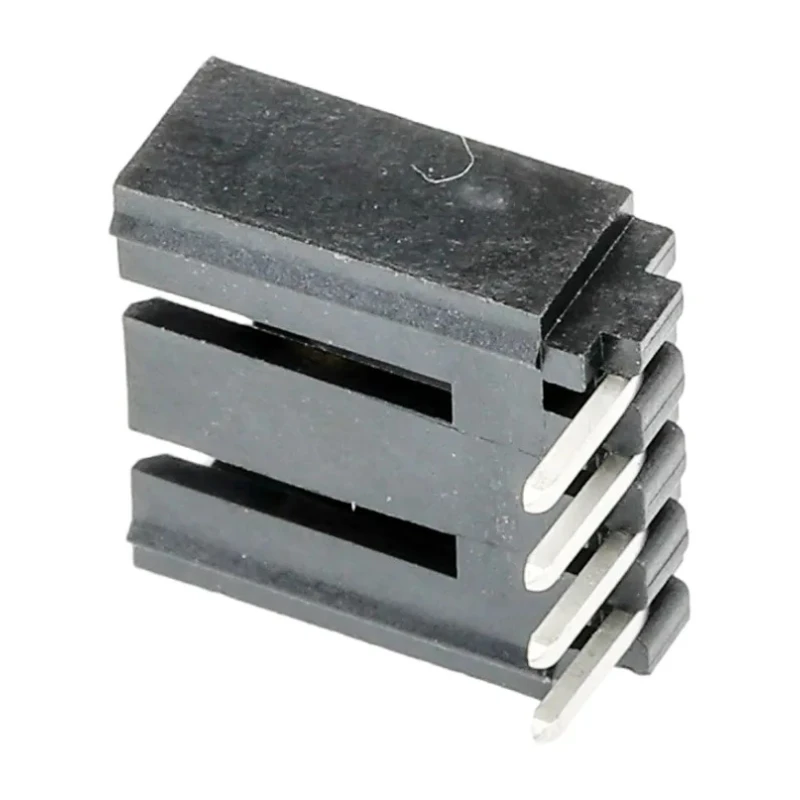

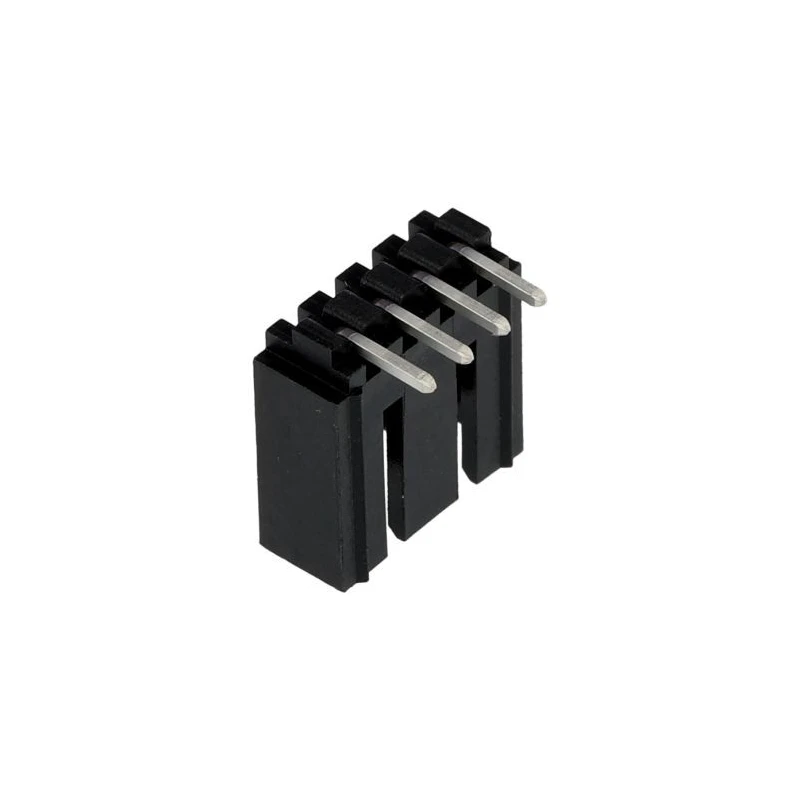

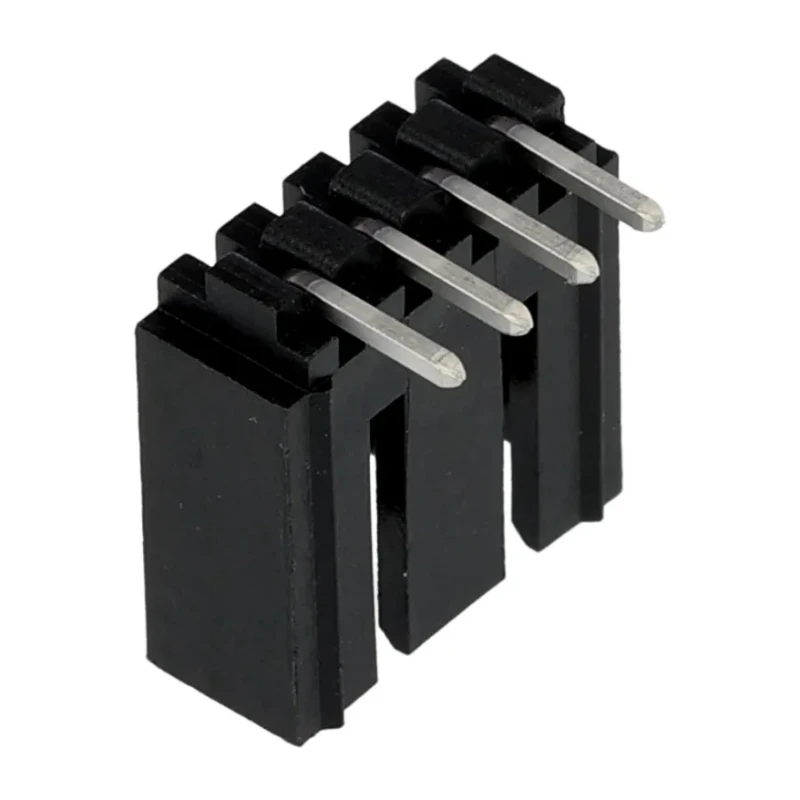

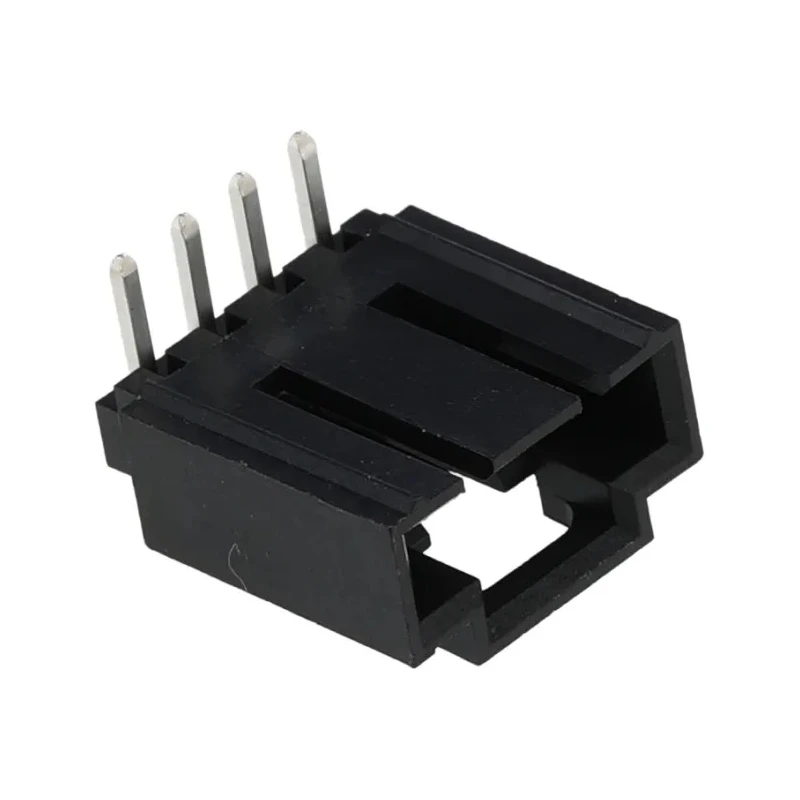

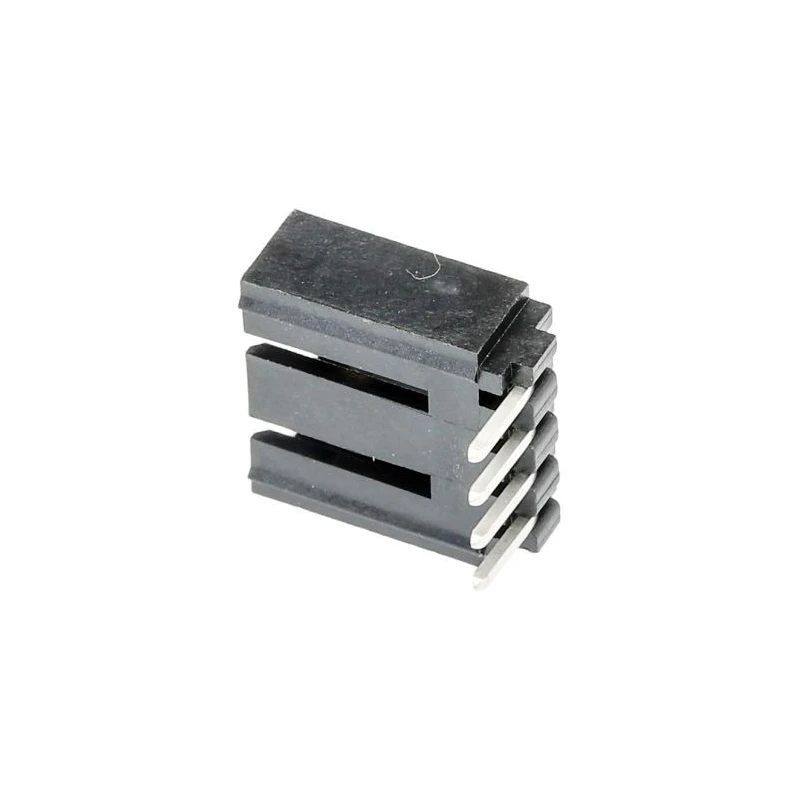

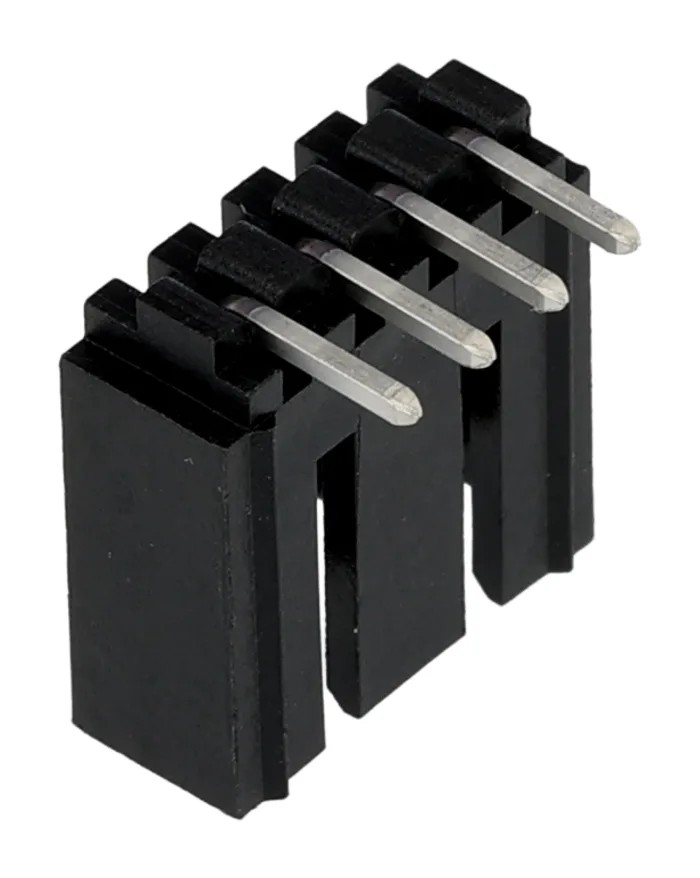

Molex SL Series Right Angle Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 3A Current, Shrouded, 1 Row 70553-0003

Free Delivery in India | Lowest Global Shipping Charges

Molex SL Series Right Angle Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 3A Current, Shrouded, 1 Row 70553-0003

Name: Molex SL Series Right Angle Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 3A Current, Shrouded, 1 Row 70553-0003
Brand: Molex
SKU: 209099
Price: 1.87 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass, Phosphor Bronze
Series	SL
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.3mm
Mating Pin Length	6.1mm

Key Features

Features right angle orientation with shrouded housing for safety and alignment.
Constructed with thermoplastic housing that withstands high temperatures up to 105°C.
Brass and phosphor bronze contacts plated with gold to enhance conductivity and durability.
Designed for through hole mounting and solder termination for mechanical stability.
Suitable for automated signal connections in industrial and telecommunications equipment.
Operates reliably between -40°C and 105°C temperature range.
Supports up to 50 mating cycles ensuring long-lasting performance.

Product Description

Molex 70553-0003 SL Series Right Angle Through Hole PCB Header is a high-quality wire-to-board connector designed for industrial and electronic applications requiring robust and reliable connectivity. Featuring a compact low-profile architecture, this connector includes 4 gold-plated contacts with a 2.54 mm pitch arranged in a single row with a right angle orientation. The shrouded design prevents misalignment during mating, enhancing safety and connection integrity.

The connector's housing is made from durable thermoplastic material that withstands harsh environments and temperatures up to 105°C. Its brass and phosphor bronze contacts are gold plated to maximize conductivity and resist corrosion, supporting a current rating of 3A at 250V. The through hole mount type along with solder tail pins of 3.3 mm length provide secure PCB attachment suitable for automated production processes.

This PCB header is ideal for signal transmission in automation systems, telecommunications devices, and industrial machinery wiring. It maintains performance across a wide temperature range of -40°C to +105°C and supports up to 50 mating cycles, offering dependable service life in demanding environments.

Applications include industrial equipment wiring, telecommunications systems, and general electrical connector solutions requiring precision and durability. Right angle orientation with shrouded housing enhances mechanical and electrical protection.

Gold plated contacts ensure superior conductivity and resistance to wear. Thermoplastic housing provides high temperature and environmental resistance. Through hole solder termination ensures strong mechanical stability on PCB.

Supports 3A current and 250V voltage ratings for varied electrical applications. Operable in extreme temperature environments from -40°C to 105°C. Designed for durability up to 50 mating cycles. Browse our extensive range of PCB connectors and related components at EnvMart for quality and performance assurance.
