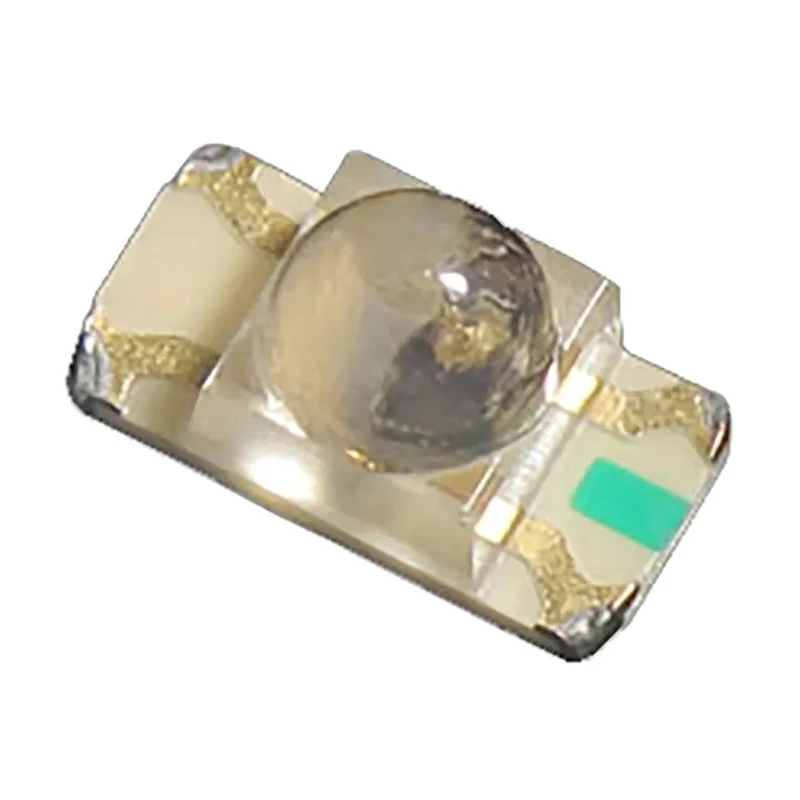

Kingbright Multi-Colour LED 4.1 V Green, Red 3216 Surface Mount Tape & Reel KPTBD-3216SURKZGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Height | 1.8 mm |
| Model | KPTBD-3216SURKZGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Multi-Colour LED |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 30 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red |
| Dominant Wavelength | 525, 630nm |
| Forward Voltage | 4.1V |
| Number of Pins | 4 |
| LED Luminosity | 600 mcd, 1000 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3.2 x 1.6 x 1.8 mm |
| Lens Shape | Dome |
Key Features
- Surface mount LED with tape & reel packaging for automated assembly.
- Emits green and red light at dominant wavelengths of 525 nm and 630 nm.
- Maximum forward current is 30 mA ensuring low power consumption.
- Designed with a dome-shaped clear lens and a 30° viewing angle for focused illumination.
- Compact dimensions of 3.2 x 1.6 x 1.8 mm suitable for space-constrained applications.
- LED luminosity reaches up to 1000 mcd for high brightness indicators.
- Four pins enable dual colour control in a single device.
- Compliant with RoHS for environmental and safety standards.
Product Description
Kingbright KPTBD-3216SURKZGC multi-colour LED is a compact light-emitting diode designed for surface mounting on printed circuit boards. Operating at a forward voltage of 4.1 V, it features an innovative dome-shaped clear lens that facilitates a 30° viewing angle, enabling precise light projection.
Encased in the industry-standard 3216 (1206) package with dimensions of 3.2 x 1.6 x 1.8 mm, this LED combines green and red light sources within a single device, offering dominant wavelengths of 525 nm (green) and 630 nm (red). The device supports a maximum forward current of 30 mA, allowing efficient power consumption with a maximum power dissipation of 75 mW.
The LED luminosity varies between 600 mcd and 1000 mcd, making it ideal as a high-brightness indicator or backlight within various electronic equipment. Its four-pin configuration makes controlling dual-colour output straightforward, optimizing functionality within compact assemblies.
Kingbright’s rigorously tested product complies with RoHS standards, ensuring environmentally safe production without hazardous substances. Manufactured in China, the product supports tape and reel packaging fostering improved production efficiency through automated insertion processes.
Surface mount technology enables easy integration into modern electronics manufacturing. Multi-colour functionality reduces component count and saves PCB space. Optimal for industrial, commercial, and consumer electronic indicator applications.
Compact package dimensions suit space-limited designs. Wide applications in backlighting, display panels, and signalling devices. Reliable operation backed by compliance with RoHS environmental standards. Packaging in tape and reel format facilitates automated assembly lines.
Dual wavelength output enhances visual signalling capabilities. Compact dome lens design improves light output efficiency and viewing angle. Explore Kingbright LEDs in our extensive Electronics Components category at EnvMart to find LED solutions that meet your design requirements with precision and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the Kingbright KPTBD-3216SURKZGC is 30 mA.
This model emits light at dominant wavelengths of 525 nm for green and 630 nm for red.
The viewing angle of the LED is 30°.
The dimensions of the LED are 3.2 mm x 1.6 mm x 1.8 mm.
The Kingbright KPTBD-3216SURKZGC is packaged in tape and reel format.
The maximum power dissipation for this model is 75 mW.
This LED has four pins, allowing for dual colour control.
Yes, it is compliant with RoHS standards for environmental and safety regulations.
The luminosity of this LED ranges from 600 mcd to 1000 mcd.
The forward voltage for the KPTBD-3216SURKZGC is 4.1 V.
This model is designed for surface mounting on printed circuit boards.
It is suitable for applications such as backlighting, display panels, and signalling devices.
