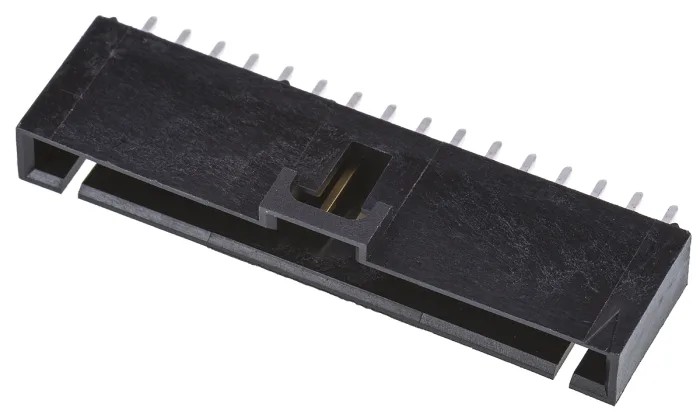

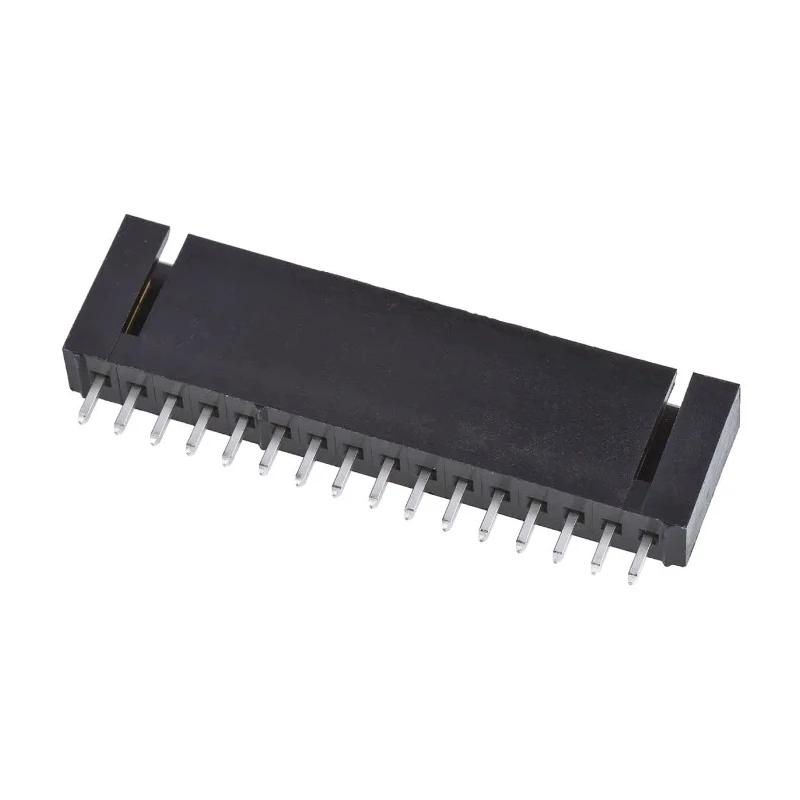

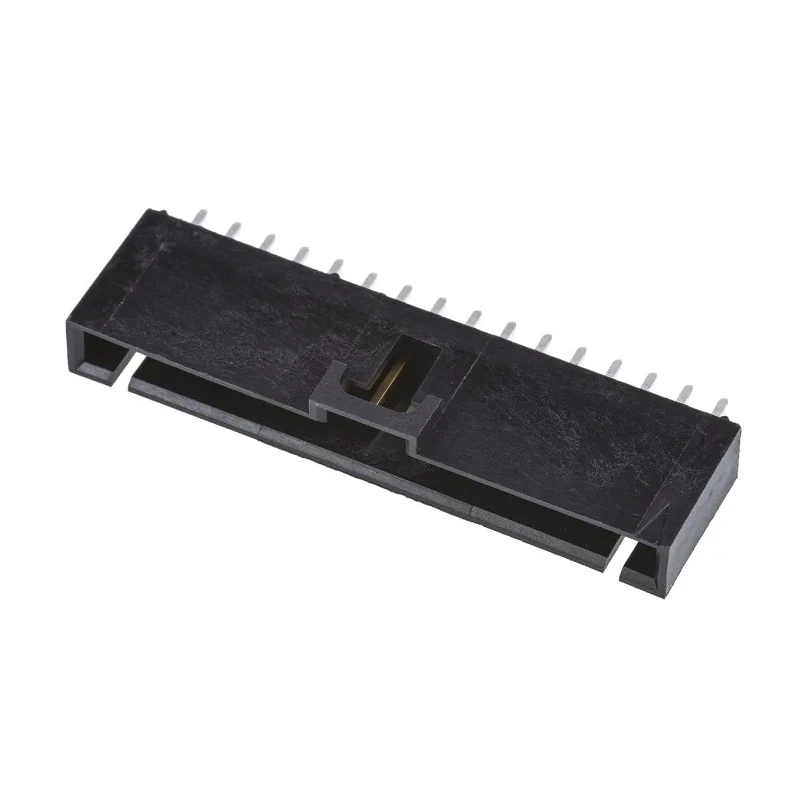

Molex SL Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70543-0015

Molex 70543-0015 SL Series Straight Through Hole PCB Header is a high-quality connector designed for electronic applications requiring reliable wire-to-board connections. The header features 16 contacts aligned in a single row with a standard 2.54 mm pitch, allowing for precise and consistent interfacing on printed circuit boards.

The connector's housing is made from glass filled polyester, enhancing mechanical strength and thermal stability. Its phosphor bronze contacts are plated with gold to ensure excellent conductivity and corrosion resistance, improving long-term performance in harsh environments.

Rated at 250 volts and a current capacity of 3 amperes, the header is engineered for robust electronic circuits and is capable of operating reliably between -40°C and 105°C. The shrouded design protects contacts from unintended damage and ensures secure mating with complementary connectors, enhancing assembly durability.

This PCB header is mounted using through-hole technology, with a solder tail pin length of 3.3 mm, facilitating strong mechanical attachment and electrical connection. The 6.1 mm mating pin length ensures proper engagement with mating connectors in various industrial, consumer electronics, and automotive applications.

Designed as part of the Molex SL Series, this PCB Header mates seamlessly with series-compatible connectors, providing versatile and dependable performance for manufacturing, industrial control systems, and electronics assembly processes.

Features a straight orientation for through hole mounting on PCBs. Constructed with glass filled polyester housing for durability. Contact material is phosphor bronze with gold plating for reliable connectivity. Rated for 250V voltage and 3A current capacity.

Operates reliably within a temperature range of -40°C to 105°C. Shrouded housing provides secure mating and protection against damage. Includes 3.3 mm solder tail pin length and 6.1 mm mating pin length. Ideal for wire-to-board connector systems in electronic assemblies.

This product is suitable for use in electronics manufacturing, industrial automation, consumer devices, and automotive wiring harnesses. Its compliance with quality standards and robust construction enhance reliability and longevity in critical applications.
