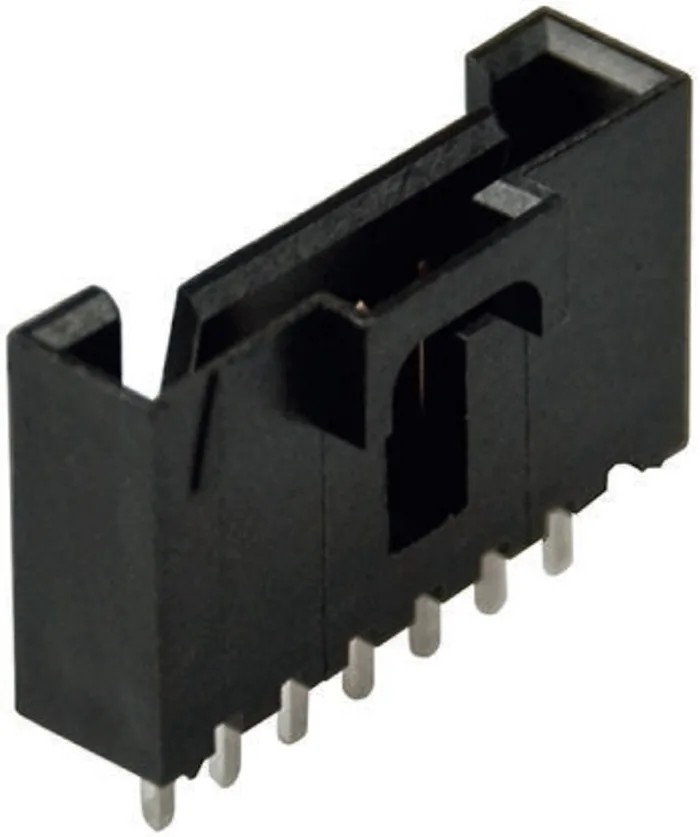

Molex SL Series Straight Through Hole PCB Header, 7 Contact, 2.54 mm Pitch, 1 Row, Shrouded 70543-0006

Molex 70543-0006 SL Series Straight Through Hole PCB Header is a high-quality, vertical, shrouded header designed for secure wire-to-board connections in electronic assemblies. With 7 contacts arranged in a single row at a 2.54 mm pitch, this connector ensures precise and reliable interconnections suitable for various electronic components and printed circuit boards.

Its phosphor bronze contacts plated with gold deliver excellent conductivity and durability, while the glass filled polyester housing provides robust mechanical support and insulation under industrial and commercial conditions. This connector supports a current rating of 3A and a voltage rating of 250V across an operating temperature range from -40°C to 105°C, allowing for versatile use in diverse environments.

The through-hole mount type and straight orientation facilitate easy and sturdy PCB assembly with solder termination. Tail and mating pin lengths of 3.3 mm and 6.1 mm respectively enhance engagement reliability with mating connectors from compatible series such as the 70600G and 70600N.

This connector is applicable in manufacturing, industrial equipment, communication devices, and other electronic applications requiring secure and durable PCB interfaces. This PCB Header is designed for through-hole mounting on printed circuit boards.

It has a current rating of 3A suitable for moderate load applications. The housing is made of glass filled polyester ensuring durability and insulation. Contacts are made of phosphor bronze with gold plating for reliable conductivity and corrosion resistance.

Operates reliably in temperatures from -40°C to 105°C. Connector system is wire-to-board with male contact gender and solder termination. Tail pin length is 3.3 mm and mating pin length is 6.1 mm. Voltage rating is 250V, making it ideal for electronic component connections.

Country of origin is United States. This product addresses the needs of electronics manufacturing for high-quality PCB connectors, enhancing assembly efficiency and product reliability.
