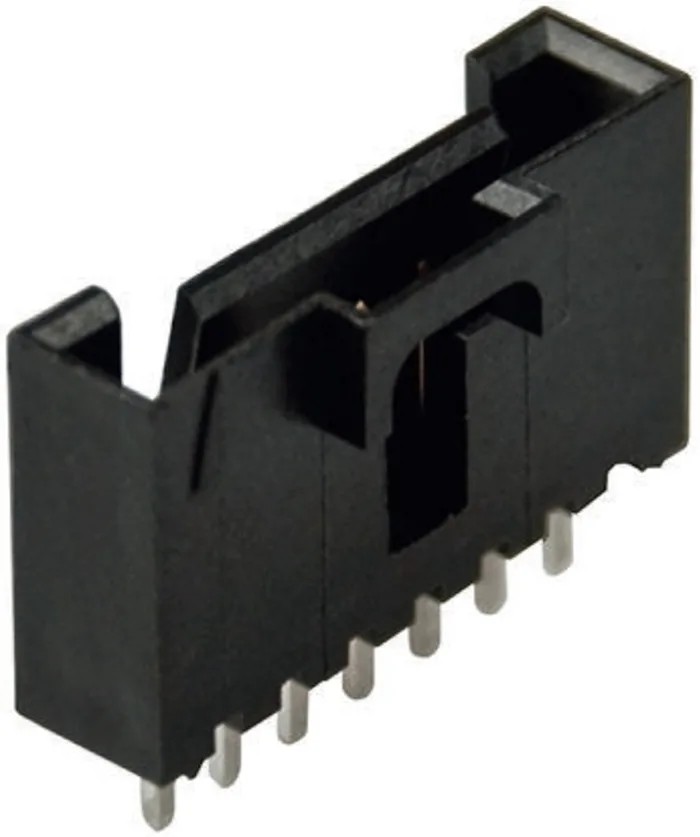

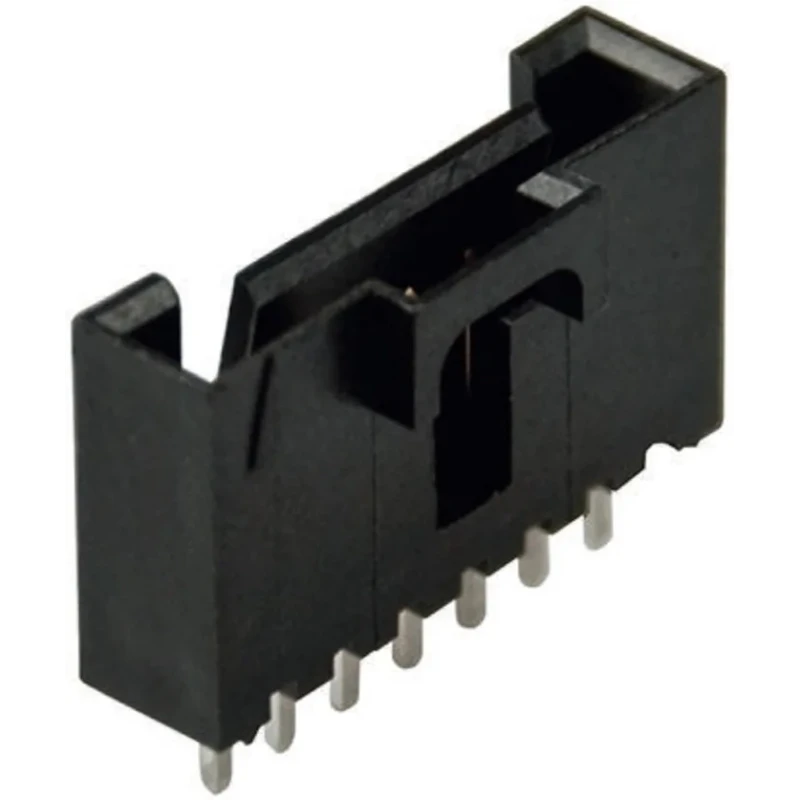

Molex SL Series Straight Through Hole PCB Header 6 Contacts 2.54 mm Pitch 1 Row Shrouded 70543-0005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 6.1mm |
Key Features
- The connector supports up to 3A current and 250V voltage rating.
- Constructed with glass filled polyester housing for durable performance.
- Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.
- Suitable operating temperature range from -40°C to 105°C.
- Designed for through-hole mounting with solder termination type.
- Tail pin length of 3.3 mm and mating pin length of 6.1 mm.
- Compatible with 70600G and 70600N Series connectors for secure mating.
- Vertical shrouded header ideal for industrial electronic assemblies.
Product Description
Molex 70543-0005 SL Series Straight Through Hole PCB Header is a high-quality electronic connector designed for wire-to-board applications. It features 6 male contacts arranged in a single row with standard 2.54 mm pitch spacing, ensuring compatibility with a wide range of electronic equipment.
The robust glass filled polyester housing provides mechanical strength and electrical insulation, while the phosphor bronze contacts plated with gold plating deliver reliable electrical performance and resistance to corrosion. This component supports current up to 3A and is rated for voltages up to 250V, making it suitable for various electronic and electrical industrial applications.
The connector supports through-hole mounting with solder termination type allowing stable mechanical bonding to printed circuit boards. The operating temperature range from -40°C up to 105°C permits use in diverse environments including industrial, manufacturing, and laboratory settings.
The tail pin length of 3.3 mm and mating pin length of 6.1 mm facilitate secure and efficient connector mating, compatible with Molex 70600G and 70600N Series connectors. Its shrouded design enhances protection of the contacts from mechanical and environmental damage.
The connector's gold plating thickness is 0.38 μm for mating pins ensuring extended durability. The component is free from specific certification approvals but meets industry standards for PCB Headers. This header is an excellent choice for electrical assembly in automation, instrumentation, and communication devices.
Available with multiple images including detailed 3D models for design integration. Molex SL Series headers are essential components for improving product reliability and manufacturing efficiency.
Explore more Molex PCB connectors and headers to suit diverse connectivity requirements in Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current of up to 3A and a voltage rating of 250V.
The housing is constructed from glass filled polyester, providing mechanical strength and electrical insulation.
The contacts are arranged with a standard pitch of 2.54 mm.
It can operate in temperatures ranging from -40°C to 105°C.
This model features 6 male contacts arranged in a single row.
It uses a solder termination type for stable mechanical bonding to printed circuit boards.
Yes, it is compatible with Molex 70600G and 70600N Series connectors for secure mating.
The tail pin length is 3.3 mm.
The mating pin length is 6.1 mm.
It is designed for a wire-to-board connector system.
The contacts are made of phosphor bronze and are gold-plated for excellent conductivity and corrosion resistance.
The country of origin for this connector is India.
