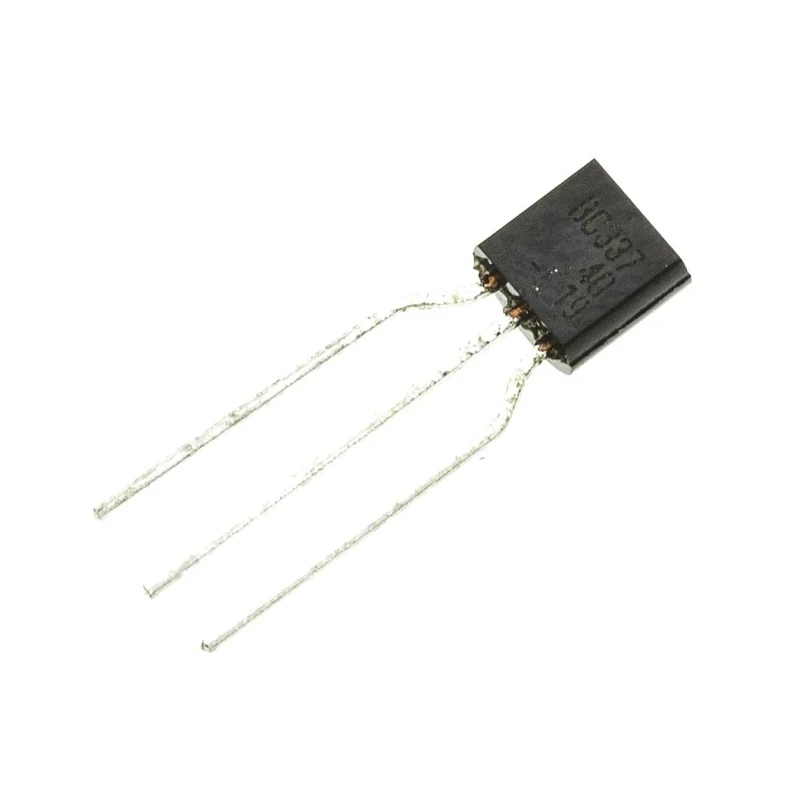

onsemi Transistor NPN 800 mA 45 V 3-Pin TO-92 BC33740TA

Name: onsemi Transistor NPN 800 mA 45 V 3-Pin TO-92 BC33740TA
Brand: onsemi
SKU: 207630
Price: 0.11 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	18.03mm
Length	5.2mm
Model	BC33740TA
Width	4.19mm
Mount Type	Through Hole
Series	BC327
Maximum Operating Temperature	150°C
Package Type	TO-92
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	45V
Minimum DC Current Gain hFE	60
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	50V
Maximum Power Dissipation Pd	625mW
Maximum DC Collector Current Idc	800mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz

Key Features

Designed for through-hole mounting with a 3-pin TO-92 package.
Maximum power dissipation of 625 mW ensures robust operation.
Minimum DC current gain (hFE) of 60 provides good amplification.
Wide operating temperature range from -55°C to 150°C.
Maximum transition frequency of 100 MHz supports high-speed switching applications.
Maximum collector base voltage of 50 V and emitter base voltage of 5 V.
Compact dimensions of 18.03 mm height, 5.2 mm length, and 4.19 mm width.
Suitable for various bipolar transistor applications requiring reliable NPN device performance.

Product Description

onsemi BC33740TA Bipolar Junction Transistor (BJT) is a small signal NPN transistor housed in a 3-pin TO-92 package. It has a maximum DC collector current rating of 800 mA and a maximum collector-emitter voltage of 45 V, making it suitable for a wide range of general-purpose amplification and switching applications.

The device features a maximum power dissipation of 625 mW and a minimum DC current gain (hFE) of 60, ensuring efficient performance in low-power circuits. The transistor can operate reliably over a broad temperature range from -55°C to 150°C, offering durability under harsh environmental conditions.

With a transition frequency upto 100 MHz, the BC33740TA supports moderate high-frequency applications, while its compact TO-92 package aids easy integration in through-hole PCB designs. The maximum collector base voltage is rated at 50 V and the emitter base voltage at 5 V, suitable for stable operation within these limits.

The transistor’s dimensions include a height of 18.03 mm, length of 5.2 mm, and width of 4.19 mm, providing a compact footprint for space-constrained electronic assemblies.

This transistor series is ideal for use in various electronic circuits such as amplifiers, switching devices, and other bipolar transistor applications in industrial, consumer electronics, automation, and instrumentation sectors.

Designed for through-hole mounting with a 3-pin TO-92 package. Maximum power dissipation of 625 mW ensures robust operation. Minimum DC current gain (hFE) of 60 provides good amplification. Wide operating temperature range from -55°C to 150°C.

Maximum transition frequency of 100 MHz supports high-speed switching applications. Maximum collector base voltage of 50 V and emitter base voltage of 5 V. Compact dimensions of 18.03 mm height, 5.2 mm length, and 4.19 mm width.

Suitable for various bipolar transistor applications requiring reliable NPN device performance. Explore the Electonics & Electricals category for more Bipolar Transistors and semiconductors on EnvMart.
