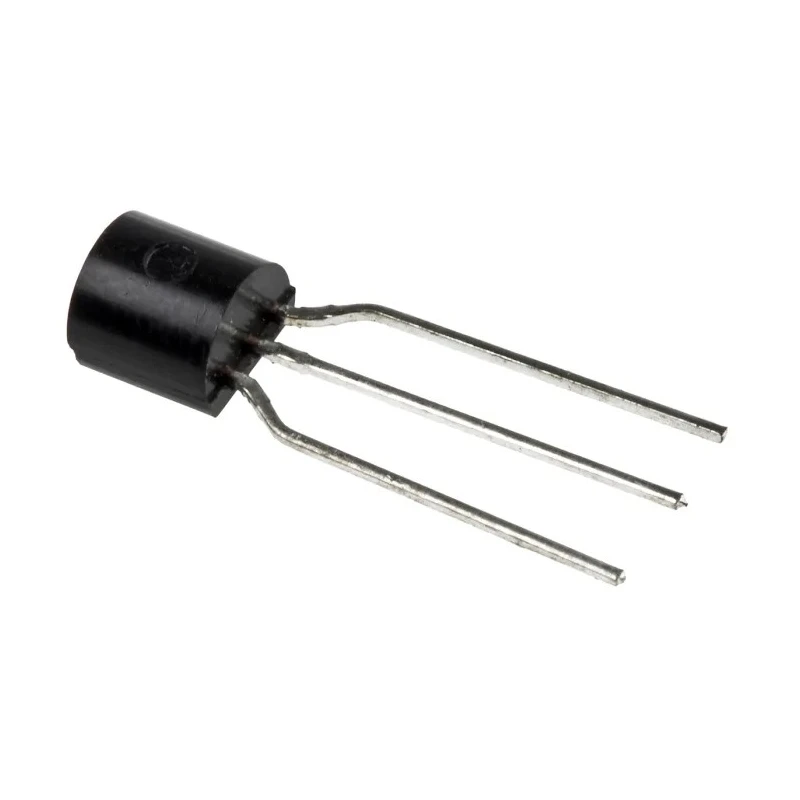

onsemi Small Signal PNP Transistor , -800 mA Collector Current, -45 V Collector-Emitter Voltage, 3-Pin TO-92 BC32725TA

onsemi BC32725TA Small Signal PNP Transistor is engineered for versatile electronic circuits requiring reliable switching and amplification. This transistor supports a maximum DC collector current of -800 mA and a collector-emitter voltage rating of -45 V, making it suitable for various power and signal applications.

Housed in the TO-92 package, this 3-pin device is designed for through-hole mounting, offering compact dimensions of 18.03 mm height, 5.2 mm length, and 4.19 mm width. It provides a maximum power dissipation of 625 mW and features a minimum DC current gain (hFE) of 40, which facilitates efficient signal amplification.

The BC32725TA operates effectively in a wide temperature range from -55°C to 150°C, with a maximum transition frequency of 100 MHz, allowing it to handle high-frequency signals in communication or control circuits. Its emitter-base voltage is rated up to 5 V, ensuring device stability under operating conditions.

This transistor is suitable for use in industrial, manufacturing, electronic repair, and laboratory environments where durable and consistent performance is required. Applications include low-level amplification, switching in control circuits, and signal processing tasks.

Compact TO-92 package suitable for through-hole mounting. Maximum power dissipation of 625 mW for small signal applications. High transition frequency up to 100 MHz for high-speed switching. Wide operating temperature range from -55°C to 150°C.

Minimum DC current gain (hFE) of 40 ensuring effective amplification. Emitter-base voltage maximum of 5 V for robust operation. Single transistor configuration with PNP polarity. Dimensions: Height 18.03 mm, Length 5.2 mm, Width 4.19 mm.

For enhanced circuit design, relevant technical datasheets and design documents for the BC32725TA are available through onsemi resources. Explore our Electronics & Electricals category for a wide selection of semiconductor devices and electronic components tailored to your industrial and laboratory requirements.
