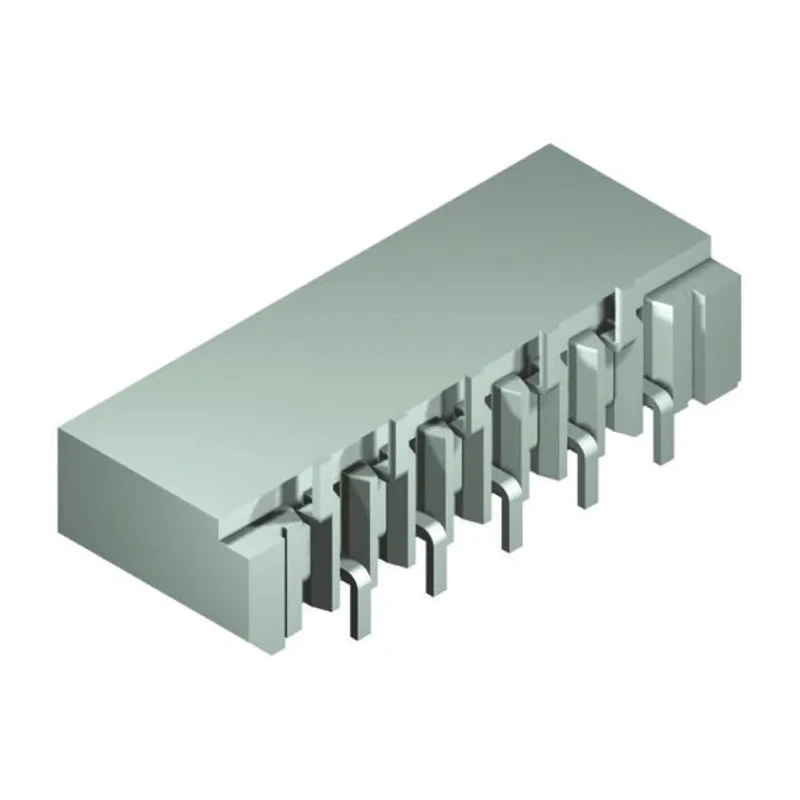

Molex 1 mm Pitch 14 Way Straight Female FPC Connector, Solder 52808-1470

Molex 52808-1470 is a 14 Way Straight Female Flat Flexible Cable (FPC) Connector designed with a 1 mm pitch, suitable for surface mount and solder termination. This connector belongs to the 52808 series of non-ZIF SMT vertical mount FPC connectors. The chamfered housing ensures correct FPC orientation, avoiding misalignment during assembly.

The connector contacts are made from phosphor bronze and plated with tin bismuth over nickel, providing good conductivity and corrosion resistance. The movable contacts allow the connector to maintain a secure electrical connection even when the cable is pulled or moved, enhancing reliability in various industrial environments.

Operating at a voltage of 125 V AC and current of 500 mA, it supports applications within the temperature range of -20°C to 80°C. The non-ZIF insertion force and locking mechanism provide secure and easy mating of connectors on printed circuit boards. With a single row of 14 contacts and a compact form factor, it is ideal for high-density interconnections in electronics.

This connector is widely used in automotive navigation systems, consumer electronics, digital cameras, security systems, tablets, notebooks, patient monitors, GPS devices, smartphones, and other portable devices requiring flexible and reliable wire harness connections.

The polysulfone housing material offers durability and electrical insulation, making it suitable for industrial, commercial, medical, and telecommunications applications. The staggered contact design simplifies soldering onto PCBs, optimizing manufacturing efficiency.

Features a space-saving design with a chamfered housing for proper FPC orientation. Contacts are made of phosphor bronze with tin bismuth over nickel plating for reliable performance. Non-ZIF insertion force with locking mechanism ensures secure contact retention.

Rated for 125 V AC and 500 mA current with operating temperature range from -20°C to 80°C. Ideal for automotive, consumer, data communications, medical, and mobile applications. Single row, 14 contacts connector enabling compact and high-density PCB designs.
